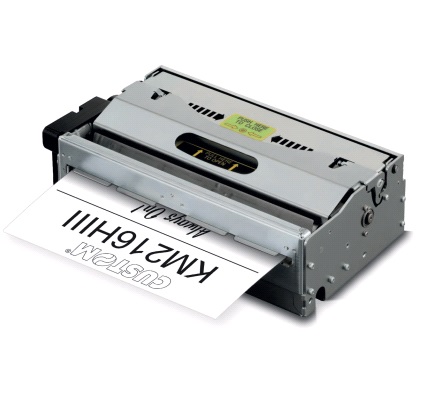

Product Overview
- New latest generation processor
- 200 dpi printing quality
- A4 size documents (210/216 mm)
- Paper thickness: from 63 to 85 µm
- Printing speed > 180 mm/sec
- Illuminated paper bezel (standard equipment)
- RS232+USB+Ethernet on board: 3 communication interfaces
- Updates from remote thanks to Ethernet interface
- All international fonts on board
- 1D and 2D printing
- PrinterSet software : a tool for a complete, easy and quick management of your printer
- CPT software: Custom Power Tool for the personalization of your tickets/receipts
- Dot-saving function
Product Specifications
| Manufacturer | Custom |
| Brand | Custom |
| Category Printer | |
| Printing Method | Thermal with fixed head |
| Number of dots | 8 dots/mm |
| Resolution | 203 dpi |
| Printing (mm/sec) | 180 mm/sec (according to the power supply used) |
| Character set | PC437, PC850, PC860, PC863, PC865, International |
| Supported Barcode | 1D and 2D |
| Printing Format | Normal, height and width from 1x to 8x, reverse, underlined, script, bold |
| Printing Direction | Straight, 90 Deg, 180 Deg, 270 Deg |
| Paper width | 210 mm / 216 mm (A4'' - US Letter) |
| Paper weight | from 58 to 78 g/m2 |
| Paper thickness | from 63 to 85 um |
| Roll Dimension | 180mm max |
| Emulation | CUSTOM/POS |
| Interfaces | RS232 + USB + Ethernet |
| Data Buffer | 19 KB |
| Flash Memory | 2MB internal flash and 8MB exsternal SPI flash |
| RAM Memory | 128Kbytes |
| Graphic Memory | 5 logos with 1600 x 327 dots |
| Drivers | WinXP, Vista, 7, 8, 8.1, 10; Linux; Android |
| Software Tools | PrinterSet, CustomPowerTool, DLL for developers, EthLocator |
| Power supply | 24 Vdc +/- 10% |
| Medium consumption | 2.5A (12,5% dots turned on) |
| MTBF | 200,000 hours (electronic board) |
| Head Life | 100 Km / 100M pulses |
| MCBF | 300,000 cuts |
| Operating temperature | 0 C + 50 C |
| Dimensions | 270 x 180 x 90 mm |
| Weight | 4.8 Kg |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| 915AS060100700 | KM216HIII A4 document printer ETH/RS232/USB ejector | $3,685.00 | Add to Cart |
