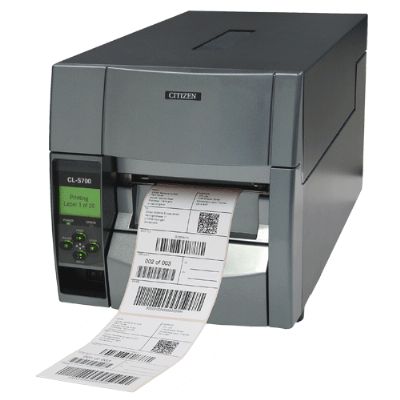

Citizen CL-S700

POSMarket SKU: Z1847

This product has been replaced by the Citizen CL-S700II. If you need this particular model rather than the replacement please contact one of our sales team on 1300 737 998.

All Citizen label and barcode printers are designed with ease of use in mind and our new CL-S700 Series printer is no exception. In fact, we believe we have exceeded even our own high standards with our latest design. With it's clam shell heavy duty printer mechanism, it is a very robust label printer for many factory & warehouse applications.

Product Rating
Product Overview
High-speed industrial printing

Our CL-S700 series is designed for ease of use; the metal mechanism opens vertically to a full 90° to allow for easy ribbon access, while integrated ribbon control and positioning support precision printing on even small or specialist media. The CL-S700 also comes with the option to print in both direct thermal and thermal transfer modes.

Key Features
  • Capacity for ribbons up to 450 metres
  • Optional rewinder (CL-S700R) and peeler
  • Easy ribbon loading: Hi-Lift metal mechanism opening to a full 90 Degrees to allow for easy ribbon access
  • Heavy duty metal case for strength and durability
  • Print Resolution CLS700: 203 DPi, CLS703: 300 DPi
  • Ribbons up to 450 metres long either inside or outside wound with ARCP ribbon control
  • Power switch is conveniently located at the front of the printer
  • Large graphic LCD for clear indication of printer status and easy printer configuration
  • Soft-close top cover for user safety and user courtesy
  • Parallel, serial and USB interfaces standard; optional Ethernet and Wireless LAN
  • Cross-Emulation: Supports both Datamax and Zebra emulations and will sense the language being used and offer to switch emulations automatically
  • Drivers: Ships with Windows 2000, XP, and Vista drivers
  • Media capacity: Internal 203mm (8-inch) media capacity
  • CLP7xxR: Rewind model
Product Specifications
Printing MethodDirect Thermal and Thermal Transfer
Printing WidthMax. 104 mm
Printing LengthMax. 812 mm
Dot PitchCLS700/700R: 203 dpi, 8 dots/mm
CLS703/703R: 300 dpi, 8 dots/mm
Printing Speed (Max.)CLS700/700R up to 254 mm (10 inches) per second
CLS703/703R up to 200 mm (8 inches) per second
Font1 Scalable, 8 Bitmap, OCR-A & B
True Type Font Download Standard
Character Table/Code PagesSee User Manual
Bar-code Type1D Codes: Code39, Code93, ITF, Codabar, UPC-A/E, EAN-8/13, UPC and EAN 2 and 5-digit extensions, Plessey, Postnet, Interleaved 2 of 5, Code128 with subsets A/B/C and UCC Case Codes, Telepen, FIM & HIBC.
2D Codes: PDF-417 & Maxi Code
Paper feed methodFriction Feed
Media TypeRoll, fanfold
(Continuous media, die-cuts, continuous tags, paper or ticket)
Media widthMin. 25.4 mm Max. 118 mm
Label Width: Min. 7.62 mm Max. 118 mm
Paper Roll DiameterMax 203 mm with 38 to 76 mm Core
Media TicknessMin. 0.0635 mm to Max. 0.254 mm
Auto CutterOptional Cutter
Indicators/ControlsGraphic LCD with 4 buttons
VuePrint Menu configuration system
LED: Power, Error
Buzzer:Alarms, errors etc
Operating keys: Pause, Feed, Stop, Menu
Power switch
EmulationDatamax (DMX400, Prodigy Plus, I-Class) and Zebra on board. Printer will sense the language being used and offer to switch emulations automatically
CPU32 Bit RISC CPU
MemorySDRAM 16Mb total, 1.0 MB available for use
FLASH 4MB total, 1.0MB available for use
SensorsTransparent sensor, Reflective sensor & Label peeling sensor (if optional Peeler is used)
InterfacesStandard with
USB 1.1 (Full speed)
RS-232 (Baudrate from 2400-115200) interface
Parallel (IEEE 1284)
Optional:
Ethernet LAN or
Wireless Lan.
Driver availableDrivers by Seagull
Software UtilitiesBartender Ultralite
Power SupplyAC100 - 240V, 1.5 - 3.5A, 50/60Hz
Power ConsumptionMax. 3.5A
External Dimensions (WxDxH)CLS700/703: 255 x 490 x 265mm
CLS700R/703R: 255 x 490 x 385mm
WeightCLS700/703: 13.3Kg
CLS700R/703R:17.6Kg
Operating EnvironmentTemperature: 0 to 40 C
Humidity: 30 to 80% (non-condensing)
Storage EnvironmentTemperature: -20 to 60 C
Humidity: 5 to 85% (non-condensing)
EMC/Safety StandardsUL, C-UL, FCC: CLASS A, CE, C-Tick/RCM, CCC
ModelDescriptionPriceStock
CLS703RW CL-S700 Thermal Transfer Label Printer, USB/Serial/Parallel interface, 300dpi, LCD display, with Rewinder $2,927.38
Call
 Add to Cart
JN13-221XX CL-S700 Thermal Transfer Label Printer, USB/Serial/Parallel interface, 300dpi, LCD display $2,371.88
Call
 Add to Cart
CLS700RE CL-S700 Thermal Transfer Label Printer, USB/Serial/Parallel interface, 203dpi, LCD display, with Rewinder $2,303.13
Call
 Add to Cart
JN12-221XX CL-S700 Thermal Transfer Label Printer, USB/Serial/Parallel interface, 203dpi, LCD display $1,574.38
Call
 Add to Cart
ModelDescriptionPrices From
POSMarket Label Rolls Various label rolls to suit thermal and ink roller printers. $3.73 View Product
POSMarket Label Printer Ribbons POS Market has a wide range of quality products designed and manufactured to meet Australian specifications including Label printer Ribbons. $2.37 View Product
Goodson CAB-PR9F25M RS232 Serial Cable DB9F to DB25M $10.48 View Product
Citizen JN24214-03F Rewinder paper guide for CL-S700R $26.24 View Product
POSMarket CAB-PAR1.8 Parallel Parallel Cable 1.8m $31.19 View Product
Goodson CAB-PRUSB USB 2.0 USB 2.0 A to B Cable $6.34 View Product
Zebra Ribbon Wax110X300 25MM Notched 2000 blk Wax Ribbon, 110mmx300m (4.33inx984ft), 2000; Custom, Notched, 25mm (1in) core, 24/box $16.45 View Product
Honeywell Mini Parallel Communications Cable Honeywell focuses on producing cables that meet industry standards and specifications to ensure compatibility and reliable data transmission. $CALL
Goodson IEC-C13 Appliance Lead 2m (Kettlecord) Goodson IEC-C13 Appliance Lead 2m (Kettlecord) $12.38 View Product
Seagull Scientific BARTENDER AUTO With BarTender, you get improved design quality, reduced label maintenance, maximized printing performance and the ability to remain compliant with changing standards. $5.59 View Product
Seagull Scientific BARTENDER ENT - APP BarTender Enterprise - Application $1.80 View Product
Goodson USB Cable USB Cable A to A; USB 2.0 A to B Cable $6.90 View Product
Citizen Peeler CSP/ CLS series Peeler for the CLP/CLS 521/621/631; CL-S700/703 series printer $405.90 View Product
Citizen JN98901 Auto cutter for CLS700, CLS700II $442.20 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document cls700 brochure 1MB Download
PDF Document cls700 User Manual 3MB Download
Product Videos
Citizen CL-S700 - Easy-to-use Label amp; Barcode Printer
