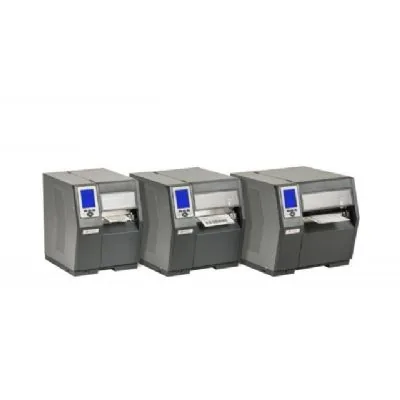

Honeywell H-Class

$CALL

POSMarket SKU: Z7235

This model is available in 11 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

The H-Class is a rugged and versatile printer that is one of the industries most feature-rich solutions for dynamic enterprise applications while operating as fast as many printers in its class. The H-Class is an ideal solution for high-volume label printing in manufacturing, warehouse, transportation, and high-resolution labeling applications.

Product Rating
Product Overview
The H-Class reduces the total cost of ownership through its gear-driven, beltless design, providing rugged and reliable performance for 24/7 mission-critical operations. Modular construction also increases uptime for the highest levels of user productivity. With one of the industry's largest graphical displays, the H-Class provides an easy-to-read view for quick navigation and printer notifications. The H-Class offers a broad range of connectivity to meet diverse application requirements and easily integrates into any network. Support of UHF and HF RFID configurations for current or future requirements protects your printer investment. The high-quality features, performance and rugged reliability make the H-Class an excellent value among premium class printers on the market.

H-Class printers can be used in a wide variety of industrial applications with a range of media compatibility, connectivity, emulation support and options, including RFID support. The H-Class offers a complete range of 12 printer models, all but guaranteeing the best fit for your particular mission-critical label printing application.
Product Specifications
MECHANICAL
Dimensions (HxWxD):101.6 mm (4 in) standard: 330 mm x 321 mm x 480 mm (13.0 in x 12.6 in x 18.9 in)
101.6 mm (4 in) X series: 415 mm x 321 mm x 489 mm (16.4 in x 12.6 in x 19.3 in)
152.4 mm (6 in) standard: 330 mm x 381 mm x 480 mm (13.0 in x 15.0 in x 18.9 in)
152.4 mm (6 in) X series: 415 mm x 381 mm x 489 mm (16.4 in x 15.0 in x 19.3 in)
203.2 mm (8 in) X series: 415 mm x 433 mm x 489 mm (16.4 in x 17.0 in x 19.3 in)
Weight:8.2 kg (40 lbs); 21.4 kg (47 lbs); 24.1 kg (53 lbs); 26.8 kg (59 lbs)
Clock:On-board real-time clock, LCD backlit graphics display
Construction:Solid aluminum die cast frame with metal cabinet, clear side window to view monitor media supply levels
MEDIA COMPATIBILITY
Media Types:Roll-fed: 203.2 mm (8.0 in) max O.D. on a 76.2 mm (3.0 in) core; fan-fold stock: accepted from rear and bottom of printer; die-cut or continuous labels; perforated or continuous tag/ticket stock
Minimum Media Length:Tear-off and rewind modes: 6.4 mm (0.25 in) Peel and cutter modes: 25.4 mm (1.0 in)
Media Width Range:101.6 mm (4 in) models: 25.4 mm (1.0 in) to 118.1 mm (4.65 in); 152.4 mm (6 in) models: 50.8 mm (2 in) to 170.2 mm (6.7 in); 203.2 mm (8 in) models: 76.2 mm (3 in) to 228.9 mm (9.0 in)
Media Thickness Range:0.0635 mm (0.0025in) to 0.254 mm (0.01 in)
Ribbon Width Range:101.6 mm (4 in) models: 25.4 mm (1.0 in) to 114.3 mm (4.5 in); 152.4 mm (6 in) models: 50.8 mm (2.0 in) to 170.2 mm (6.7 in); 203.2 mm (8 in) models: 76.2 mm (3.0 in) to 228.9 mm (9.0 in)
Media Sensing:"See through" for liner-backed die-cut labels and tags, reflective sensor for black- mark label media
Label Backfeed:For use with optional cutter and peel & present
Ribbon Core:25.4 mm (1.0 in)
Ribbon Length:600 m (1968 in)
Coated-Side-In and Coated-Side-Out:For optimum print quality and printer performance, use certified Honeywell media supplies
PRINT SPECIFICATIONS
Printer Type:Direct thermal, optional thermal transfer
Print Speed: H-4212; 304 mms (12 ips), 8 mmps (203 dpi) H-4408; 203 mms (8 ips), 16 mmps (406 dpi) H-4310; 254 mms (10 ips), 12 mmps (300 dpi)H-4606; 152 mms (6 ips), 24 mmps (600 dpi)H-4212x; 304 mms (12 ips), 8 mmps (203 dpi) H-4310x; 254 mms (10 ips), 12 mmps (300 dpi) H-4606x; 152 mms (6 ips), 24 mmps (600 dpi)
Print Length Range:6 mm (0.25 in) to 2,539.75 mm (99.99 in), (values vary with printer configuration)
SUPPORTED BARCODE SYMBOLOGIES
Memory:16MB SDRAM/8MB Flash
Barcodes:Linear: Code 3 of 9, UPC-A, UPC-E, Interleaved 2 of 5, Industrial 2 of 5, Std 2 of 5, Code 11, Code 93, Code 128, EAN-8, EAN-13, HIBC, Codabar, Plessey, UPC 2 and 5 digit addendums, Postnet, UCC/EAN Code 128, Telepen, Planetcode, FIM, USPS-4 State;
Resident Fonts:Ten alphanumeric fonts from 2.5- to 23-point including OCR-A, OCR-B, CG Triumvirate„¢ smooth font from AGFA; Scalable Fonts: CG Triumvirate Bold Condensed, CG Triumvirate & CG Times with Cyrillic, Greek Arabic and Hebrew character support
Character Sets:More than 50 resident character sets; Unicode/UTF8 support
Downloadable Font Types:True-Type, Bitmap
Font Expansion/Rotation:All fonts expandable vertically and horizontally up to 24x; fonts and graphics can be printed in four directions: 0 Degrees, 90 Degrees, 180 Degrees and 270 Degrees
Graphics Supported:.pcx, .bmp, .img and ASCII format files
Reversible Field/Mirror Image:Any font orgraphic field can be printed as a normal or reverse image
ENVIRONMENTAL
Operating Temperature:0 C to 38 C(32 F to 100 F)
Storage Temperature-17 C to 60 C (0 F to 140 F)
Humidity:10% - 95% non-condensing
COMMUNICATIONS INTERFACE
Communication Ports (Standard):Serial RS232, parallel bi-directional, ethernet-wired LAN 10/100, USB 2.0 compatible
Communication Ports (Optional):USB-Host, SDIO memory slot, wireless 802.11b/g, GPIO applicator card,
Communication Ports (Standard Tall Models) (Same as X-Series):Serial RS232, parallel bi-directional, ethernet-wired LAN 10/100, USB 2.0 compatible; USB-Host, SDIO memory slot
Communication Ports (Optional Tall Models)(Same as X-Series):wireless 802.11b/g, GPIO applicator card
ModelDescriptionPriceStock
C82-00-46040004 H-6210. Thermal Transfer, 6" print width, 203dpi, Standard cutter, 3" Metal Media hub $CALL
Call
C82-00-4N000004 H-6210. Thermal Transfer, 6" print width, 203dpi, 3" Metal Media hub $CALL
Call
C82-00-46E00004 H-6210. Thermal Transfer, 6" print width, 203dpi, Basic Peel & Internal Rewind, 3" Metal Media hub $CALL
Call
C32-00-43000004 H-4212X. Thermal Transfer, 4" Print width, 203dpi, 3" Metal Media hub $CALL
Call
C32-00-43400004 H-4212X. Thermal Transfer, 4" Print width, 203dpi, Internal Rewinder, 3" Metal Media hub $CALL
Call
C32-00-43900006 H-4212X. Thermal Transfer, 4" Print width, 203dpi, Cast Peel & Present Option with Internal Rewind, 3" Metal Media hub $CALL
Call
C42-00-43000007 H-4212. Thermal Transfer, 4" Print width, 203dpi, 3" Plastic Media hub $CALL
Call
C33-00-4N000004 H-4310X. Thermal Transfer, 4" Print width, 300dpi, 3" Metal Media hub $CALL
Call
C43-00-46900007 H-4310. Thermal Transfer, 4" Print width, 300dpi, Cast Peel & Present Option with Internal Rewind, 3" Plastic Media hub $CALL
Call
C63-00-48000004 H-6310X. Thermal Transfer, 6" print width, 300dpi, 3" Metal Media hub $CALL
Call
C63-00-48400004 H-6310X. Thermal Transfer, 6" print width, 300dpi, Internal Rewinder, 3" Metal Media hub $CALL
Call
ModelDescriptionPrices From
POSMarket Label Rolls Various label rolls to suit thermal and ink roller printers. $3.73 View Product
Zebra Ribbon Wax110X300 25MM Notched 2000 blk Wax Ribbon, 110mmx300m (4.33inx984ft), 2000; Custom, Notched, 25mm (1in) core, 24/box $16.45 View Product
Honeywell MF2TE Printer Battery Datamax MF2TE Printer Battery $183.43 View Product
Honeywell DB9 Serial Cable Datamax serial cable $CALL
Honeywell DMXREW2 External Rewinder Kit The DMXREW2 External Rewinder/Unrewinder is a versatile accessory designed to enhance the efficiency and convenience of label printing processes. $2,953.50 View Product
Honeywell H4S H-Class Non-Powered Internal Rewinder Internal Rewind Option - H4S Non-Powered $290.95 View Product
Honeywell H-Class H6S Non-Powered Internal Rewinder Upgrade your H-Class printer with the Internal Rewind Option - H6S Non-Powered and enjoy the benefits of simplified label rewinding, increased productivity, and improved workflow management. $430.10 View Product
Honeywell H-Class H4 Heavy Duty Peel and Present Honeywell (formerly Datamax-O'Neil), Installable Option, Heavy Duty Peel Mechanism and Present Sensor (requires powered internal rewinder) for H-Class 4in Models (H-4212 / H-4310 / H-4408 / H-4606 / H-4212X / H-4310X / H-4606X) $259.33 View Product
Honeywell H-Class H4 Cutter The H-Class H4 Cutter is a versatile cutting option designed for the H-Class series of printers. $999.35 View Product
Honeywell H-Class H8 Cutter The H-Class H8 Cutter is a versatile accessory designed to enhance the cutting capabilities of your H-Class printer. $1,821.60 View Product
Honeywell H-Class H4X Powered Internal Rewinder The H-Class H4X Powered Internal Rewinder is a convenient accessory designed to enhance the functionality of your H4X printer. $664.13 View Product
Honeywell H-Class H6X Powered Internal Rewinder Internal Rewind Option, H6X - Powered $CALL
Honeywell H-Class H4 Linear Scanner Kit The H-Class H4 Linear Scanner Kit is a comprehensive scanning solution designed specifically for the H-Class printer series by Datamax-O'Neil. $3,390.75 View Product
Honeywell H6 Basic Peel and Present Basic Peel and Present for H6. $227.70 View Product
Honeywell Edge Service Addon Printer Printhead 5Y AddOn, Edge Service, Printhead Service, Printer, 3 Year $1,499.03 View Product
Honeywell Edge Service Addon Printer Printhead 1Y Add-On, Edge Service, 203 Printhead Refresh Service, 200 or 300 dpi, 1-Year Contract (Available on H-Class, I-Class, M-Class, PC23, PC42, PC43, PM42, PM43, PX4I, PX6I, PX940)Requires purchase of a Gold Service Contract for Industrial and Desktop Printers. $752.68 View Product
Honeywell H-8308 300DPI Printhead Printhead, IntelliSEAQ, 300 DPI - H-8308 models $1,663.48 View Product
Honeywell H-Class 300DPI Printhead Printhead, H-Class 4 inch IntelliSEAQ, 300DPI $1,246.03 View Product
Honeywell H-4408, A - Class Mark II Printhead Printhead, IntelliSEAQ, 400 DPI - 4. H-4408, A - Class Mark II $1,208.08 View Product
Honeywell H-4606, A-Class Mark II Printhead The Printhead for IntelliSEAQ is a high-resolution 600 DPI printhead specifically designed for the H-4606 and A-Class Mark II printers. $2,590.50 View Product
Honeywell H6 300DPI Printhead Datamax accessory, A-Class Mark II And H-Class Printers, 300 DPI Printhead, Intelliseaq, H6, H6X $1,372.53 View Product
Honeywell Edge Service AddOn Printer Onsite 3Y AddOn, Edge Service, Onsite Service, Printer, 3 Year $506.00 View Product
Honeywell Edge Service AddOn Printer Onsite 1Y AddOn, Edge Service, Onsite Service, Printer, 1 Year $202.40 View Product
Honeywell Edge Service AddOn Printer Cutter2 Edge Service AddOn Printer Cutter2 $550.28 View Product
Honeywell Edge Service AddOn Printer cutter1 Edge Service AddOn Printer cutter1 $360.53 View Product
Honeywell Edge Service AddOn Printer Accessory Edge Service AddOn Printer Accessory $79.70 View Product
Honeywell H4 H-Class Printhead Assembly Honeywell, Spare Part, H-Class (H4), Print Head Assembly $366.85 View Product
Seagull Scientific BARTENDER ENT - APP BarTender Enterprise - Application $1.80 View Product
Honeywell EXTERNAL REWINDER 4IN 220V DMXREW1 EU Honeywell DMXREW1 DPO78-2394-01 External Rewinder (For use with any Label Printer). $1,132.18 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document Honeywell H-Class Datasheet 747KB Download
