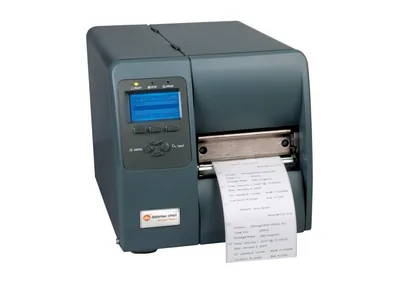

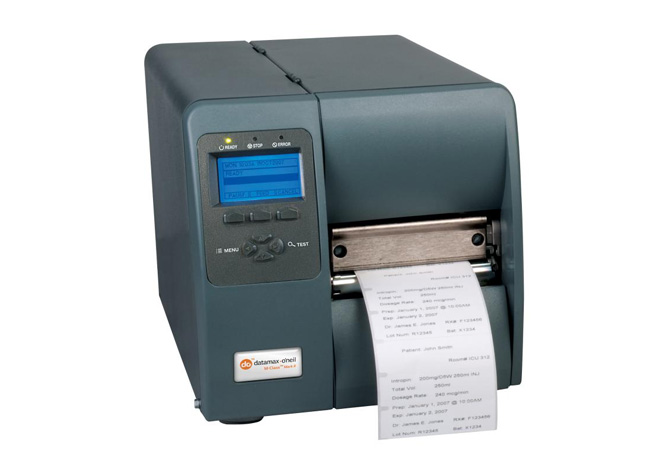

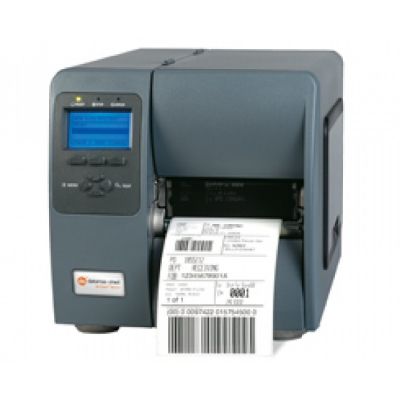

Honeywell M-Class MkII

$CALL

POSMarket SKU: Z7237

This model is available in 11 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

The M-Class Mark II printers offer great value for warehouse, healthcare, logistics and retail applications. Formally from Datamax, the M-Class printers are now looked after by Honeywell. With the same Datamax compatibility now with Honeywell's industry leading service & support.

Product Rating
Product Overview
The M-Class printers keep up with high-label-demand applications, boasting faster performance than many printers in their class. M-Class printers also feature a modular design and field-installable options to cut back on downtime and improve efficiency.

Rugged Construction
Features a durable precision die-cast aluminum frame and clear side window so you can easily monitor media supply levels.

User-Friendly LCD Graphics Display
Five-button, 128x64 LCD graphics backlit display is easy to read, enabling user-friendly label configuration setup.

5 Languages to Choose From
Multi-language menu available in English, Spanish, German, Italian and French.

Easy to Integrate
Features widely used DPL and supports PL-Z and PL-I printer-language emulations for easy integration into your existing applications.

Easy to Maintain
Modular design makes maintenance and part replacement easy. IntelliSEAQ printhead includes proactive diagnostic tools for easy access to printhead performance and history.


Easy to Upgrade
Field installable options such as cutters, peel & present sensors, and thermal transfer capabilities can be added easily to upgrade a base printer.

Available With RFID
Supports UHF and HF RFID configurations for current or future requirements, protecting your printer investment.
Product Specifications
Dimensions259 mm x 257 mm x 462 mm (H x W x D)
Weight12.2 kg
Display128 x 64 LCD backlit graphics display
ConstructionSolid aluminum die-cast frame with a metal cover and large clear side window to easily monitor media supply levels
Printer TypeDirect thermal, optional thermal transfer
Print Length Range6.35 mm to 251.6 mm
Print Speed/ResolutionM-4206: 152 mms (6 ips), 8 mmps (203 dpi)
M-4210: 254 mms (10 ips), 8 mmps (203 dpi)
M-4308: 203 mms (8 ips), 12 mmps (300 dpi)
Memory16 MB DRAM/8 MB Flash
Interface OptionsEthernet-Wired LAN 10/100
Wireless 802.11 b/g
USB Host Interface (M-4210 and M-4308 only)
RFID Options UHF and HF (M-4210 and M-4308 only)
Peel-and-Present38mm minimum label length
Media TypeRoll-Fed: 203.2 mm O.D. on a 76.2 mm core; 177.8 mm (7.0 in) on a 38.1 mm (1.5 in) core
Fan-Fold Stock: Accepted from rear and bottom of printer Die-cut or continuous labels Perforated or continuous tag/ticket stock
Media Width Range19 mm to 118.1 mm
Maximum Print Width108 mm
Minimum Media LengthTear-off and rewind modes: 6.35 mm
Peel and cutter modes: 25.4 mm
Media Thickness Range0.0635 mm to 0.254 mm
Media Sensing"See through" for liner-backed die-cut labels and tags
Reflective sensor for black-mark label media
Label BackfeedFor use with optional cutter or present sensor
Ribbon Width Range25.4 mm to 114.3 mm
Ribbon Length300m , 450m
Coated-side-in or coated-side-out
Standard WarrantyPrinter: 1 year
Printhead: 1 year or 25,400,000mm, whichever comes first
ModelDescriptionPriceStock
KA3-00-40000Y07 M-4308. 300dpi, Thermal Transfer, USB/Serial/Ethernet interfaces $CALL
Call
KA3-00-43000007 M-4308. 300dpi, Thermal Transfer, USB/Serial interfaces $CALL
Call
KA3-J2-43000YR7 M-4308. 300dpi, Thermal Transfer, USB/Serial/Ethernet interfaces, Datamax RFID HF Kit $CALL
Call
KJ2-00-4N000Y07 M-4210. 203dpi, Thermal Transfer, USB/Serial/Ethernet interfaces $CALL
Call
KD2-00-0N000007 M-4206. 203dpi, Direct Thermal, USB/Serial interfaces $CALL
Call
KD2-00-0N000Y07 M-4206. 203dpi, Direct Thermal, USB/Serial/Ethernet interfaces $CALL
Call
KD2-00-4N000Y07 M-4206. 203dpi, Thermal Transfer, USB/Serial/Ethernet interfaces $CALL
Call
KD2-00-0N900000 M-4206. 203dpi, Direct Thermal, USB/Serial interfaces, Cast Peel & Present Option with Internal Rewind $CALL
Call
KD2-00-03900Y07 M-4206. 203dpi, Direct Thermal, Ethernet interface, Cast Peel & Present Option and Internal Rewind, 3" Media Hub $CALL
Call
KD2-00-4N000007 M-4206. 203dpi, Thermal Transfer, USB/Serial interface, 3" Media Hub $CALL
Call
KD2-00-06000Y00 M-4206. 203dpi, Direct Thermal, USB/Serial/Ethernet interface, Fixed Media Hanger $CALL
Call
ModelDescriptionPrices From
POSMarket Label Rolls Various label rolls to suit thermal and ink roller printers. $3.73 View Product
Zebra Ribbon Wax110X300 25MM Notched 2000 blk Wax Ribbon, 110mmx300m (4.33inx984ft), 2000; Custom, Notched, 25mm (1in) core, 24/box $16.45 View Product
Honeywell MF2TE Printer Battery Datamax MF2TE Printer Battery $183.43 View Product
Honeywell Datamax M Class Printer Wireless and LAN Card Datamax M Class Printer - DMXNet II 802.11b/g Wireless and LAN Card $626.18 View Product
Honeywell M-Class Print Head Datamax M Class Printer - Printhead, IntelliSEAQ, 203 DPI - M-4210. M-Class Mark II $822.25 View Product
Honeywell M-4308 M-Class 300DPI Printhead Datamax M Class Printer - Printhead, IntelliSEAQ, 300 DPI - M-4308 $904.48 View Product
Honeywell Edge Service Addon Printer Printhead 5Y AddOn, Edge Service, Printhead Service, Printer, 3 Year $1,499.03 View Product
Honeywell Edge Service Addon Printer Printhead 1Y Add-On, Edge Service, 203 Printhead Refresh Service, 200 or 300 dpi, 1-Year Contract (Available on H-Class, I-Class, M-Class, PC23, PC42, PC43, PM42, PM43, PX4I, PX6I, PX940)Requires purchase of a Gold Service Contract for Industrial and Desktop Printers. $752.68 View Product
Honeywell M-4206 &M-4208, M-Class 203DPI Printhead Printhead, 203 DPI - M-4206 &M-4208. M-Class $740.03 View Product
Honeywell Edge Service AddOn Printer Onsite 3Y AddOn, Edge Service, Onsite Service, Printer, 3 Year $506.00 View Product
Honeywell Edge Service AddOn Printer Onsite 1Y AddOn, Edge Service, Onsite Service, Printer, 1 Year $202.40 View Product
Honeywell Edge Service Gold MP NOVA 5D 1Y RNW A complete solution that provides support for the entire lifecycle of your printer - from configuration and installation to ongoing support, migration, asset retirement, and recycling. $373.18 View Product
Honeywell Edge Service Gold M4308 5 days, 3 years A complete solution that provides support for the entire lifecycle of your printer - from configuration and installation to ongoing support, migration, asset retirement, and recycling. $468.05 View Product
Honeywell Edge Service Plat M4210 2D 3Y M-Class M4210, Edge Service, Platinum, 2 Day, 3 Year, New Contract $746.35 View Product
Honeywell Edge Service Gold M4210 5D 3Y M-Class M4210, Edge Service, Gold, 5 Day, 3 Year, New Contract $468.05 View Product
Honeywell Edge Service Edge Service, M4206 5D 3Y M-Class M4206, Edge Service, Gold, 5 Day, 3 Year, New Contract $CALL
Honeywell Service Complete M-4206 5DAY 3YR M-4206, Complete, 5 Day, 3 Years DayOne $CALL
Honeywell Edge Service AddOn Printer cutter1 Edge Service AddOn Printer cutter1 $360.53 View Product
Honeywell Edge Service AddOn Printer Accessory Edge Service AddOn Printer Accessory $79.70 View Product
Honeywell Platen Roller Kit S-Cass M-Clas II Platen Roller Kit S-Cass/M-Clas II $86.02 View Product
Seagull Scientific BARTENDER ENT - APP BarTender Enterprise - Application $1.80 View Product
Honeywell EXTERNAL REWINDER 4IN 220V DMXREW1 EU Honeywell DMXREW1 DPO78-2394-01 External Rewinder (For use with any Label Printer). $1,132.18 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document MClass Mark II Quick start guide.pdf 587KB Download
PDF Document M-Class MKII Brochure 601KB Download
