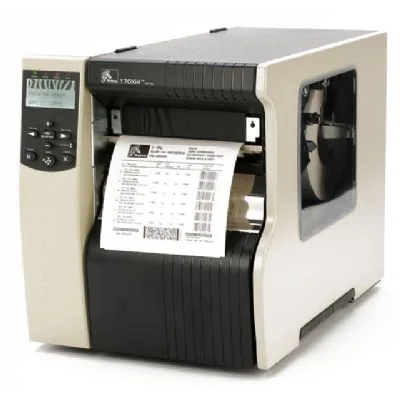

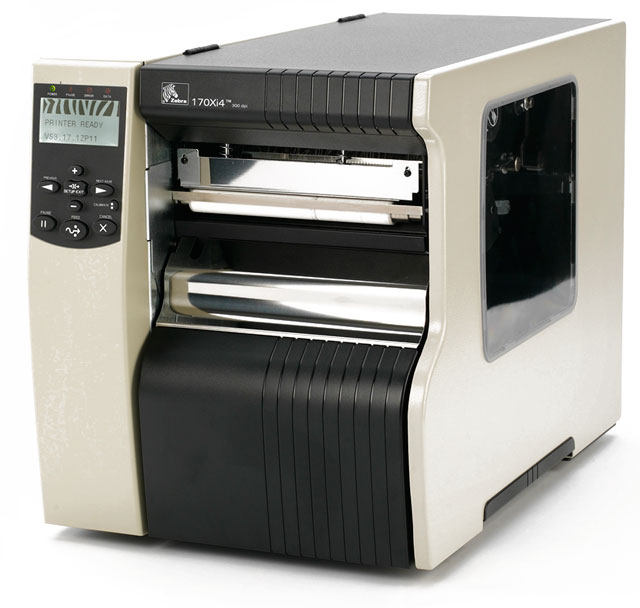

Zebra 170Xi4

from $6,666.00 (incl. GST)

POSMarket SKU: Z4391

This model is available in 7 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

The industrial-strength Zebra 170Xi4 with 203 or 300 dpi 8 or 12 dots per mm print resolution and a 6.6 print width at 12 per second can print large volumes of labels promoting greater productivity with fewer roll changes. Or it can execute intricate high-resolution print applications at a quick 8 203 mm per second. With its all-metal construction this printer is ideal for tough applications including compliance labels AIAG ODETTE UCCEAN-128 etc product identification labels and pallet shippingreceiving labels either on demand or in batches.

Product Rating
Product Overview
Another addition to Zebra's Xi4 product line is the 170Xi4 providing 6.6 inch (168 mm) wide labels at 12 inch (305 mm) per second. Built on the proven Xi series platform that is known for rugged durability and performance, the new Xi4 brings several additional features to high-volume, mission-critical applications and environments that require 24 x 7 operations. Building on these high-performance hallmarks, the Xi4 now provides several new features and benefits:
  • LCD content customizable to user needs
  • Large, easy to use, multilingual LCD screen
  • Flexible connectivity including simultaneous parallel/Ethernet with internal Ethernet included as standard in the product
  • Advanced ribbon and media-low LCD/e-mail alerts
  • Intelligent printhead system
Product Specifications
Printer
Print method:Thermal transfer or direct thermal
Construction:12-gauge steel frame
Processor:Single 32 bit 133 Mhz RISC processor
Resolution:203 dpi (8 dots/mm)//300 dpi (12 dots/mm)
Memory16 MB SDRAM//8 MB Flash
Print width:6.6' (168mm)
Print length:150' (3810 mm) using continuous media
Print speed:Up to 12' per second (203 dpi)
Media sensors:Reflective, Transmissive
Media Characteristics
Maximum label and liner width:7.1' (180mm)
Minimum label and liner width:2.0' (51mm)
Maximum label and liner length:39' (991mm)non-continuous to 150' (3810mm) continuous media
Maximum roll diameter:8' (203mm)
Core diameter:3' (76mm)
Media thickness:.003' (.076mm) to .012' (.305mm)
Media types:black mark, continuous, roll-fed, die-cut, fanfold
Communication
Interface CapabilitiesUSB 2.0 port (12 Mbits per second)//RS-232C/422/485 multi-drop (optional adaptor)//High-speed, bi-directional, IEEE 1284 parallel interface//ZebraNet Wireless Plus Print Server//ZebraNet 10/100 Print Server//IBM Twinax interface//IBM Coax interface//Applicator interface//IPV6 Print Server//ZebraNet b/g Print Server
Operating Characteristics
Operating temperature40 F (5 C) to 105 F (40 C)
Thermal transfer DT Operating temperature:32 F (0 C) to 105 F (40 C)
Direct thermal Storage temperatures:-40 F (-40 C) to 140 F (60 C)
Operating humidity:20% to 85% non-condensing relative humidity
Storage humidity:5% to 85% non-condensing relative humidity
Electrical:Universal power supply with power factor connection 90-264 VAC; 48 - 62 Hz
Physical Characteristics
Width:13.31" (338.1mm)
Height:15.5"" (393.7mm mm)
Depth:20.38" (517.5 mm)
Weight:67 lbs (30.5 kg)
ModelDescriptionPriceStock
170-8KP-00100 170Xi4. 300dpi, Thermal Transfer, USB/Serial/Parallel/Ethernet interfaces, Cutter with Catch Tray $8,234.09
Call
 Add to Cart
172-80P-00100 170Xi4. 203dpi, Thermal Transfer, USB/Serial/Parallel/Ethernet interfaces, Cutter with Catch Tray $7,388.08
Call
 Add to Cart
170-80P-00203 170Xi4. 300dpi, Thermal Transfer, USB/Serial/Parallel/Ethernet interfaces, Rewind with Peel, Bifold Media Door $7,288.63
Call
 Add to Cart
170-80P-00200 170Xi4. 300dpi, Thermal Transfer, USB/Serial/Parallel/Ethernet interfaces, Rewind Kit $7,144.50
Call
 Add to Cart
170-80P-00003 170Xi4. 300dpi, Thermal Transfer, USB/Serial/Parallel/Ethernet interfaces, Bifold Media Door $6,870.15
Call
 Add to Cart
170-80P-00000 170Xi4. 300dpi, Thermal Transfer, USB/Serial/Parallel/Ethernet interfaces $6,666.00
Call
 Add to Cart
172-80P-00200 170Xi4. 203dpi, Thermal Transfer, USB/Serial/Parallel/Ethernet interfaces, Rewind with Peel $CALL
Call
ModelDescriptionPrices From
Zebra 170XI 203DPI Printhead Zebra Printhead for 170XI 203DPI model. $1,485.11 View Product
Zebra Platen Roller 170XI3 & 170XI4 Zebra Platen Roller - Kit Platen Roller or Rewind Roller 170Xi4. $165.72 View Product
Zebra 170XI 300DPI Printhead Zebra Printhead for 170XI 300DPI model. $1,535.71 View Product
Zebra Ribbon Resin 5095 60mm X 450m blk Ribbon Resin 5095 60mm X 450m blk. $34.16 View Product
Zebra Ribbon Wax Resin 156 X 450 T/TOP S3200 Ribbon Wax Resin 156 X 450 T/TOP S3200 $70.84 View Product
Zebra Ribbon Resin 60MMX450M blk 6200 Resin Ribbon, 60mmx450m (2.36inx1476ft), 6200; Resin, 25mm (1in) core $37.95 View Product
Zebra Ribbon Wax110X300 25MM Notched 2000 blk Wax Ribbon, 110mmx300m (4.33inx984ft), 2000; Custom, Notched, 25mm (1in) core, 24/box $16.45 View Product
Zebra Onecare Select XI41 1 YR Comp Onecare Select XI41 1 YR Comp $963.93 View Product
Zebra Onecare Select 110XI4 140XI4 170XI4 5YR Comp Onecare Select 110XI4/140XI4/170XI4 5YR Comp $4,027.65 View Product
Zebra Onecare Select 110XI4 140XI4 170XI4 3YR Comp Onecare Select 110XI4/140XI4/170XI4 3YR Comp $1,544.57 View Product
Zebra Service Onecare Essential XI4 3YR Comp Service Onecare Essential XI4 3YR Comp $1,187.84 View Product
Zebra Service Onecare Essential XI4 3YR Service Onecare Essential XI4 3YR $765.33 View Product
Zebra UPGRADE KIT 105SL PLUS XI4 WIFI 802.11 B G UPGRADE KIT 105SL PLUS/XI4 WIFI 802.11 B/G $965.20 View Product
Zebra Upgrade Kit 170XI4 Media Rewind Zebra 170Xi4 Field Installable Upgrade Kit $1,106.88 View Product
Zebra Printhead 170XI4 203DPI PRINTHEAD Kit 170XI4 203DPI $1,399.09 View Product
Zebra Font Kit Andale Korean Font Kit Andale Korean $253.00 View Product
Zebra Bridge Enterprise 100+ Printers Bridge Enterprise 100+ Printers $1,182.78 View Product
POSMarket SERIAL EXTENSION CABLE 2M DB9 M-F Serial extension cable 2m. $13.20 View Product
Seagull Scientific BARTENDER AUTO With BarTender, you get improved design quality, reduced label maintenance, maximized printing performance and the ability to remain compliant with changing standards. $5.59 View Product
Seagull Scientific BARTENDER ENT - APP BarTender Enterprise - Application $1.80 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document 170Xi4 User Guide 12MB Download
PDF Document 170Xi4 Data sheet 2MB Download
