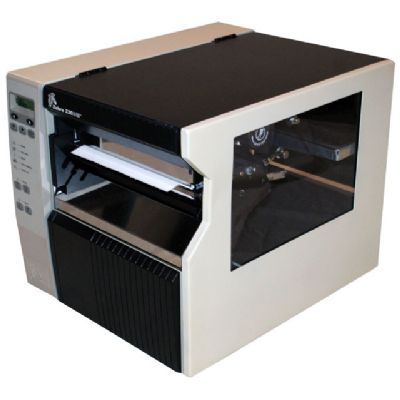

Zebra 220XiIII Plus
POSMarket SKU: Z4378
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.
The 220XiIII quickly prints labels up to 8.5 inches wide at 10 ips ips. It is ideal for wide label applications such as printing chemical drum labels, primary metal standard labels, automotive industry labels, banner-sized labels, and pallet and container shipping labels.
Product Overview
- 203 dpi Resolution (8 dots per mm)
- Core Diameter: 3"
- Label Ribbon Roll Diameter: 8"
- Maximum Label Length (with Standard Memory): 39"
- Maximum Label Width: 8.8"
- Minimum Label Gap: 2 mm
- Print width: 8.50"
- Programmable Print speeds: 2.4"
- Reflective Media Sensor
- Ribbon Outside Diameter: 3.2"
- Thin Film Printhead with Element Energy Equalizer (E3) ASIC
- Total Thickness: .003"
- Transmissive Media Sensor
- Construction: 12-gauge steel frame
- Zebra printer driver for Win 95/98, Win ME, Win NT 4.0, Win 2000, and Win XP
- Advanced media-ribbon counter
- Multi-level Element Energy Equalizer (E3) for superior print quality
- PCMCIA socket
- Serial and parallel ports
- Single 32 bit 133 MHz RISC processor
- Unicode - Compliant
- Widest print width
- Print methods: Thermal transfer or direct thermal
- Transmissive and reflective media sensors
- USB 2.0 port
- 16 MB SDRAM, 4 MB non-volatile Flash memory
- 300 unique darkness settings
- Multilingual backlit LCD display
- CompactFlash (up to 1 GB memory) for added label format/font storage
- Enhanced Alert notification -- monitors printhead condition
- ZebraLink Solutions
Product Specifications
| Printer Type | Label printer - direct thermal / thermal transfer - monochrome |
| Packaged Quantity | 1 |
| Manufacturer | Zebra Technologies |
| Technology | direct thermal / thermal transfer |
| Print Speed | Up to 600 inch/min - B/W - 203 dpi |
| Built-in Devices | status LCD |
| Connectivity Technology | wired |
| Interface | USB, LAN, serial |
| Language Simulation | ZPL, ZPL II |
| Barcodes | CODABLOCK, Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 49, Code 93, Data Matrix, EAN/JAN-13, EAN/JAN-8, GS1 DataBar, ISBT 128, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI-Plessey, MaxiCode, MicroPDF417, PDF417, PLANET, Postnet, QR code, TLC39, UPC-A, UPC-E |
| Type | label printer |
| Max Media Size (Standard) | Roll (8.8 in) |
| Max H-Document Size | 8.8 m |
| Max Printing Width | 8.5 in |
| Max Printing Length | 39 in |
| Media Type | continuous forms, labels |
| Media Sizes | Roll (4.25 in), Roll (8.8 in) |
| Total Media Capacity | 1 rolls |
| Nominal Voltage | AC 120/230 V |
| Frequency Required | 50/60 Hz |
| Form Factor | internal |
| Power Factor Correction | Yes |
| Networking | Print server |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Connectivity Technology | wired |
| Max Media Size (Custom) | 8.8 in |
| Max Printing Width | 8.5 in |
| Max Printing Length | 39 in |
| Media Thickness Range | 0.003 in - 0.012 in |
| Roll Maximum Outer Diameter | 8 in |
| Roll Core Diameter | 3 in |
| Media Type | Labels, continuous forms |
| Total Media Capacity | 1 roll |
| Media Sizes | Roll (4.25 in), Roll (8.8 in) |
| OS Required | Microsoft Windows 95/98/ME/2000/XP, Microsoft Windows NT 4.0 |
| Width | 15.7 in |
| Depth | 19.5 in |
| Height | 15.5 in |
| Weight | 72.09 lbs |
Product Configurations
Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.
| Model | Description | Prices From | |
|---|---|---|---|
| Zebra Font Kit Andale Korean | Font Kit Andale Korean | $253.00 | View Product |
| Zebra Bridge Enterprise 100+ Printers | Bridge Enterprise 100+ Printers | $1,182.78 | View Product |
| Seagull Scientific BARTENDER ENT - APP | BarTender Enterprise - Application | $1.80 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
Zebra Xi Series Datasheet | 107KB | Download |
