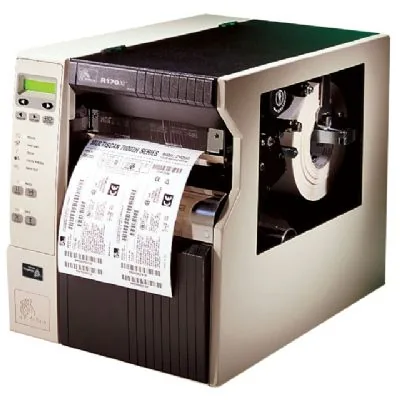

Zebra R170xi

POSMarket SKU: Z4395

This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.

The R170Xi is a premier Zebra printerencoder that combines two key functions for companies that need to comply with todays RFID mandates printing standard barcode labels and encoding data into a passive RFID transponder embedded in the label. The R170Xi combines the strengths of the Xi platform with the versatility of the ThingMagic RFID reader module. This reader module offers the flexibility needed to guarantee a simple cost-free upgrade path to Gen2 protocols.

Product Rating
Product Overview
The R170Xi is a premier Zebra printerencoder that combines two key functions for companies that need to comply with todays RFID mandates printing standard barcode labels and encoding data into a passive RFID transponder embedded in the label. The R170Xi combines the strengths of the Xi platform with the versatility of the ThingMagic RFID reader module. This reader module offers the flexibility needed to guarantee a simple cost-free upgrade path to Gen2 protocols. It conforms to multiple protocols EPC Class 1 EPC Class 0 Matrics 0 ISO18000-06B and Philips UCODE 1.19 and gives users the assurance that they can seamlessly upgrade to future RFID protocols. The R170Xi features other innovations such as automatic inlay position calibration multiple power levels and label statistics tracking.
  • Fully integrated ThingMagic UHF RFID Reader/Encoder
  • Multiple RFID power settings allow users to adjust the RF power in response to various protocols, transponder designs and sizes
  • RFID calibration feature with automatic program position selection for optimal transponder placement
  • Track good and unusable labels
  • XML-enabled printing
Product Specifications
GENERAL
Printer TypeLabel printer - direct thermal / thermal transfer - monochrome
Packaged Quantity1
ManufacturerZebra Technologies
PRINTER
Technologydirect thermal / thermal transfer
Print SpeedUp to 720.5 inch/min - B/W - 203 dpi
Built-in DevicesRFID reader, status LCD
Connectivity Technologywired, wireless
InterfaceParallel, USB, LAN, serial, Wi-Fi
Image Enhancement TechnologyMulti-level Element Energy Equalizer
Language SimulationExtensible Mark-up Language (XML), ZBI, ZPL, ZPL II
BarcodesCODABLOCK, Codabar, Code 11, Code 128, Code 39, Code 49, Code 93, Data Matrix, EAN/JAN-13, EAN/JAN-8, GS1 DataBar, ISBT 128, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI-Plessey, MaxiCode, MicroPDF417, PDF417, PLANET, QR code, TLC39, UPC-A, UPC-E
Typelabel printer
Max Media Size (Standard)Roll (7.1 in)
Max H-Document Size7.1 m
Max Printing Width6.61 in
Max Printing Length39 in
Media TypeRFID labels, continuous forms, labels
Media SizesRoll (2 in), Roll (7.1 in)
POWER DEVICE
Typepower supply
Nominal VoltageAC 120/230 V
Frequency Required50/60 Hz
Form Factorinternal
NETWORKING
NetworkingPrint server - internal
Data Link ProtocolEthernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g
Connectivity Technologywired, wireless
MEDIA HANDLING
Max Media Size (Custom)7.1 in
Max Printing Width6.6 in
Max Printing Length39 in
Roll Maximum Outer Diameter8 in
Roll Core Diameter3 in
Media TypeLabels, continuous forms, RFID labels
Media SizesRoll (2 in), Roll (7.1 in)
DIMENSIONS & WEIGHT
Width13.1 in
Depth19.5 in
Height15.5 in
Weight67.24 lbs
Product Configurations
No configurations found for this product.

Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.

ModelDescriptionPrices From
Zebra 170XI 203DPI Printhead Zebra Printhead for 170XI 203DPI model. $1,485.11 View Product
Zebra 170XI 300DPI Printhead Zebra Printhead for 170XI 300DPI model. $1,535.71 View Product
Zebra Font Kit Andale Korean Font Kit Andale Korean $253.00 View Product
Zebra Bridge Enterprise 100+ Printers Bridge Enterprise 100+ Printers $1,182.78 View Product
Seagull Scientific BARTENDER ENT - APP BarTender Enterprise - Application $1.80 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document Zebra R170xi Datasheet 197KB Download
Product Videos
No videos found for this product.

Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.
