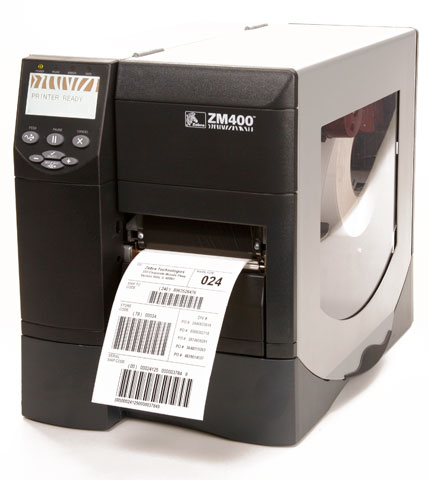

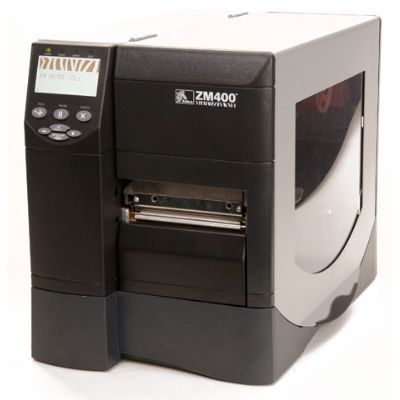

Zebra ZM400
POSMarket SKU: Z4399
This product has been replaced by the Zebra ZT411. If you need this particular model rather than the replacement please contact one of our sales team on 1300 737 998.
Zebra's best-in-class Z Series printers just got better The ZM400 includes additional productivity-enhancing features and modern flexible network connectivity for easy system integration in most manufacturing warehousing and business applications. The ZM400 industrialcommercial workhorse also delivers efficient 4-inch-wide labeling thanks to its quick throughput and 10 inches-per-second print speed.
Product Overview
- Print methods: thermal transfer or direct thermal
- Available in 203, 300, or 600 dpi versions
- 4.09" print width
- Die-cast aluminum base, frame and printhead mechanism
- Real-time clock
- Optional cutter, peeler, rewinder, and memory expansion
- Supports user-defined fonts and graphics
- XML-enabled Printing
- Handles continuous, die-cut, or black-marked labels and tags
Product Specifications
| GENERAL | ||
| Printer Type | Label printer - direct thermal / thermal transfer - monochrome | |
| Packaged Quantity | 1 | |
| Manufacturer | Zebra Technologies | |
| PRINTER | ||
| Technology | direct thermal / thermal transfer | |
| Print Speed | Up to 600 inch/min - B/W - 203 dpi | |
| Built-in Devices | status LCD | |
| Connectivity Technology | wired, wireless | |
| Interface | Parallel, USB, serial, Wi-Fi | |
| Language Simulation | Extensible Mark-up Language (XML), ZPL, ZPL II | |
| Fonts | CG Triumvirate Bold Condensed | |
| Features | realtime clock | |
| Fonts Included | 7 x bitmapped
1 x scalable | |
| Barcodes | Aztec code, CODABLOCK, Codabar, Code 11, Code 128A, Code 128B, Code 128C, Code 2 of 5, Code 39, Code 49, Code 93, Data Matrix, EAN/JAN-13, EAN/JAN-8, GS1 DataBar, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI-Plessey, MaxiCode, MicroPDF417, PDF417, PLANET, Plessey, Postnet, QR code, UPC-A, UPC-E | |
| Type | label printer | |
| Max Media Size (Standard) | Roll (4.5 in) | |
| Min H-Document Size | 1 in | |
| Max H-Document Size | 4.5 m | |
| Max V-Document Size | 39 in | |
| Max Printing Width | 4.09 in | |
| Max Printing Length | 157 in | |
| Media Type | continuous forms, fanfold paper, labels, perforated labels, tag stock | |
| CONNECTIVITY | ||
| Wireless Ready | Yes | |
| POWER DEVICE | ||
| Type | power supply | |
| Nominal Voltage | AC 120/230 V | |
| Form Factor | internal | |
| Power Factor Correction | Yes | |
| NETWORKING | ||
| Networking | Print server | |
| Network Controller Name | ZebraNet Wireless Plus | |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11g | |
| Compliant Standards | IEEE 802.11b, IEEE 802.11g | |
| Connectivity Technology | wireless | |
| ENVIRONMENTAL PARAMETERS | ||
| Humidity Range Operating | 20 - 85% | |
| MEDIA HANDLING | ||
| Min Media Size (Custom) | 1 in | |
| Max Media Size (Custom) | 4.5 in x 39 in | |
| Max Printing Width | 4.09 in | |
| Max Printing Length | 157 in | |
| Media Thickness Range | 0.0023 in - 0.01 in | |
| Roll Maximum Outer Diameter | 8 in | |
| Roll Core Diameter | 3 in | |
| Media Type | Labels, continuous forms, perforated labels, fanfold paper, tag stock | |
| DIMENSIONS & WEIGHT | ||
| Width | 10.9 in | |
| Depth | 18.7 in | |
| Height | 13.3 in | |
| Weight | 33.07 lbs | |
| INTERFACE REQUIRED | ||
| Type | RS-232, USB 2.0, parallel | |
| Total Qty | 1 | |
Product Configurations
Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.
| Model | Description | Prices From | |
|---|---|---|---|
| Zebra ZM400 300DPI Printhead | Zebra Printhead for ZM400 300DPI model. | $1,042.36 | View Product |
| Zebra Ribbon Resin 5095 60mm X 450m blk | Ribbon Resin 5095 60mm X 450m blk. | $34.12 | View Product |
| Zebra Service Onecare Essential ZMX0 2YR Comp RNW | Service Onecare Essential ZMX0 2YR Comp RNW | $654.01 | View Product |
| Zebra SERVICE ONECARE ESSENTIAL ZMX0 2YR RNW | SERVICE ONECARE ESSENTIAL ZMX0 2YR RNW | $470.58 | View Product |
| Zebra Servce Onecare Essential ZMX0 1YR Comp RNW | Service Onecare Essential ZMX0 1YR Comp RNW | $342.82 | View Product |
| Zebra Service Onecare Essential ZMX0 1YR RNW | Service Onecare Essential ZMX0 1YR RNW | $247.94 | View Product |
| Zebra Service OneCare Essential ZMX0 1Yr Comp | Service OneCare Essential ZMX0 1Yr Comp | $407.33 | View Product |
| Zebra Service OneCare Essential ZMX0 1Yr | Service OneCare Essential ZMX0 1Yr | $287.16 | View Product |
| Zebra Platen Roller ZM400 | Kit Platen Roller ZM400 | $169.51 | View Product |
| Zebra Static Brush For Cutter Kit ZT410 ZM400 | Static Brush For Cutter Kit ZT410/ZM400 | $274.07 | View Product |
| Zebra Bridge Enterprise 100+ Printers | Bridge Enterprise 100+ Printers | $1,182.78 | View Product |
| POSMarket SERIAL EXTENSION CABLE 2M DB9 M-F | Serial extension cable 2m. | $13.20 | View Product |
| Seagull Scientific BARTENDER AUTO | With BarTender, you get improved design quality, reduced label maintenance, maximized printing performance and the ability to remain compliant with changing standards. | $3.47 | View Product |
| Seagull Scientific BARTENDER ENT - APP | BarTender Enterprise - Application | $1.80 | View Product |
| Zebra ZM400/ZT410 KIT PCBA/MOTOR ASSEMBLY FOR LTU | Kit PCBA/Motor assembly for LTU ZT410 ZM400 | $485.87 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
Zebra ZM400 Datasheet | 304KB | Download |
