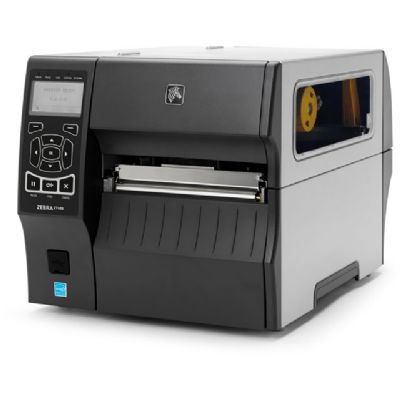

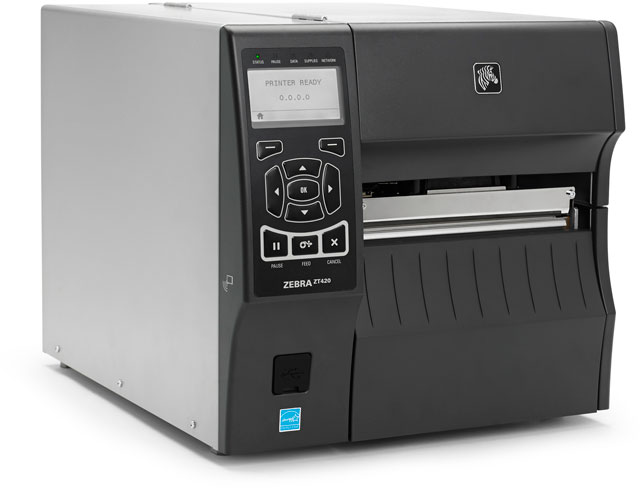

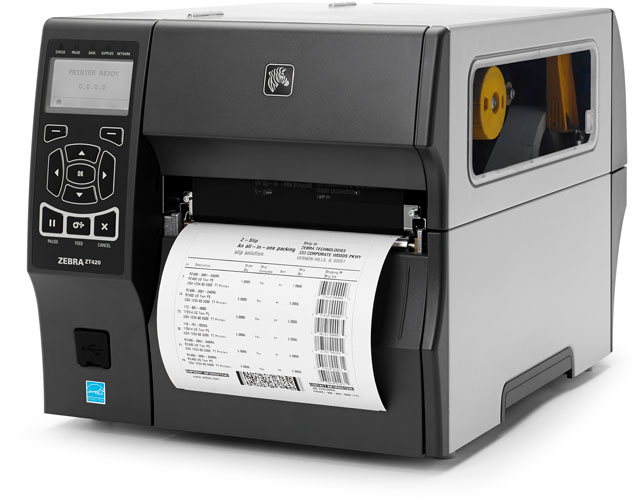

Zebra ZT420

POSMarket SKU: Z4277

This product has been replaced by the Zebra ZT421. If you need this particular model rather than the replacement please contact one of our sales team on 1300 737 998.

The ZT420 industrial printer from Zebra provides a reliable and modern print solution with a 168 mm print width. The lightweight metal frame makes this printer durable for all applications. The built-in remote management features make the ZT420 manageable from anywhere reducing your maintenance time and cost.

Product Rating
Product Overview
ENGINEERED TO MEET YOUR CURRENT AND FUTURE BUSINESS NEEDS
Building on the ZM Series proven reputation for reliability, the ZT400 Series delivers advancements in print speed, connectivity options, and management and support tools. Increased processing power and user memory, along with an open architecture, allow these printers to advance with technology. End-user-installable media handling options empower you to customise your printer to match your needs, both now and in the future.

DESIGNED TO DELIVER EASE OF INTEGRATION, OPERATION AND MANAGEMENT

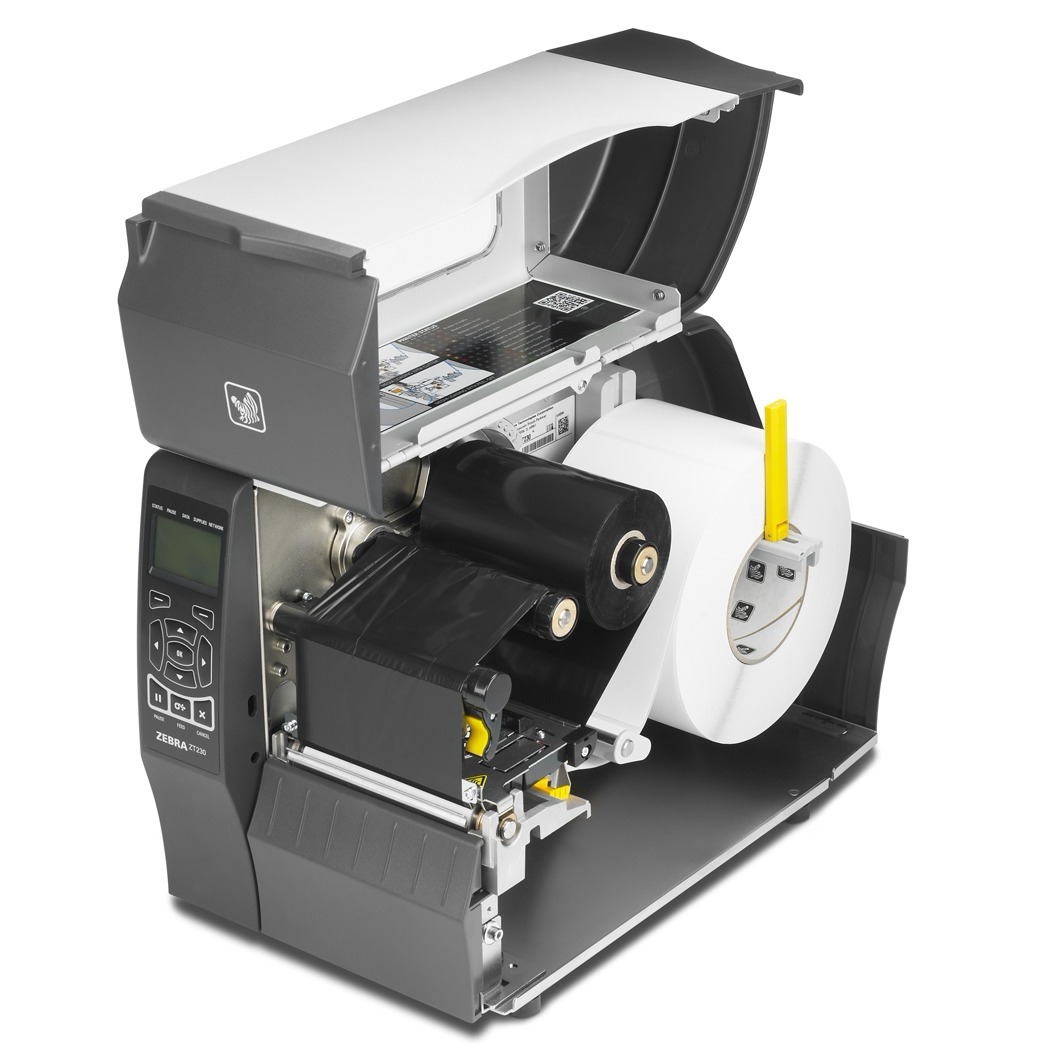

Dynamic QR codes for 'on-demand' web-based support help users resolve printer errors quickly. The lit and colour-coded, side-loading supplies paths facilitate simple installation of media and ribbon and the tool-less print head and platen roller replacement keeps operations running. And an optional colour LCD display shows colour-coded alerts when the printer is paused or in an error state, so you instantly know when the printer needs attention. Plus, the ZT400 Series is powered by Link-OS, Zebra's robust printer operating system, and Print DNA, a combination of productivity, management, development and visibility tools resulting in superior printing performance.

APPLICATION FLEXIBILITY
USB, Serial, Ethernet and Bluetooth connectivity options - as well as two open media slots - allow users to utilise non-standards connectivity options (Parallel, Zigbee, etc), design failover connections and provide for future protocols. End user installable media handling options allow you to customise your printer to match your current and future business needs.
Product Specifications
General
ManufacturerZebra Technologies
Print Method:Direct Thermal
Print Method:Thermal Transfer
Printer Connectivity:USB
Printer Connectivity:Bluetooth
Printer Resolution:203 dpi
Printer Resolution:300 dpi
Printer Type:Industrial Printers
Media Types:Continuous//Die Cut//Notch//Black Mark
Maximum Non-continuous Label Length:991mm
Media Web Width (Label and Liner)
Tear/Cutter:51mm - 178mm
Peel/Rewind:51mm - 171mm
Minimum Label Length
Tear Off mode:12.7mm
Peel Mode:12.7mm
Rewind Mode:12.7mm
Cutter:25.4mm
Media Thickness (Label and Liner)0.058mm - 0.25mm
Maximum Media Roll Dimensions203mm O.D on a 76mm I.D core
Ribbon Specifications
Ribbon Width:51mm - 174mm
Maximum Ribbon Length:450m
Maximum Ribbon Roll Size:81.3mm O.D on a 25.4mm I.D core
Ribbon WoundInk Side Out
Physical Specifications
Height:324mm
Width:336mm
Depth:495mm
Weight:18.14kg
Shipping Weight:20.41kg
ModelDescriptionPriceStock
ZT42062-T0P00C0Z ZT420. 6" Print width, 203dpi, Thermal Transfer, USB/Serial/Ethernet/Bluetooth interfaces, RFID UHF Encoder, Tear Bar $6,978.13
Call
 Add to Cart
ZT42062-T2P0000Z ZT420. 6" Print width, 203dpi, Thermal Transfer, USB/Serial/Ethernet/Bluetooth interfaces, Cutter with Catch Tray $4,573.25
Call
 Add to Cart
ZT42062-T0PC000Z ZT420; 6, 203 dpi, UK/AU/JP/EU Cords, Serial, USB, 10/100 Ethernet, Bluetooth 2.1/MFi, USB Host, Wireless 802.11 a/b/g/n Card: Rest of World (ROW), EZPL $4,127.75
Call
 Add to Cart
ZT420A2-T0PF000Z ZT420; 6, 203 dpi, UK/AU/JP/EU Cords, Serial, USB, 10/100 Ethernet, Bluetooth 2.1/MFi, USB Host, and ZebraNet Internal Wireless 802.11ac with Bluetooth 4.0, Rest of World, EZPL, Color $4,081.00
Call
 Add to Cart
ZT420A2-T0P0000Z ZT420; 6, 203 dpi, UK/AU/JP/EU Cords, Serial, USB, 10/100 Ethernet, Bluetooth 2.1/MFi, USB Host, EZPL, Color $3,685.00
Call
 Add to Cart
ZT42062-T4P0000Z ZT420. 6" Print width, 203dpi, Thermal Transfer, USB/Serial/Ethernet/Bluetooth interfaces, Peel with Full Rewind $CALL
Call
ZT42062-T0P0000Z ZT420. 6" Print width, 203dpi, Thermal Transfer, USB/Serial/Ethernet/Bluetooth interfaces, Tear Bar $CALL
Call
ZT42063-T0P0000Z ZT420. 6" Print width, 300dpi, Thermal Transfer, USB/Serial/Ethernet/Bluetooth interfaces, Tear Bar $CALL
Call
ModelDescriptionPrices From
Zebra ZKDU Keyboard The KDU, or Keyboard Display Unit, saves space by eliminating a bulky host computer. $307.40 View Product
Zebra ZR400 Drive Belt 79867M - ZMx00/ZT400 drive belt, 300/600dpi $58.19 View Product
Zebra Ribbon Resin 5095 60mm X 450m blk Ribbon Resin 5095 60mm X 450m blk. $34.16 View Product
Zebra Ribbon Wax Resin 156 X 450 T/TOP S3200 Ribbon Wax Resin 156 X 450 T/TOP S3200 $70.84 View Product
Zebra Ribbon Wax 174 X 450 Tabletop S2100 blk Wax Ribbon, 174mmx450m (6.85inx1476ft), 2100; High Performance $34.16 View Product
Zebra Ribbon Resin 110X450 T TOP 5095 Ribbon Resin 110X450 T/TOP 5095 $98.67 View Product
Zebra Ribbon Resin 60MMX450M blk 6200 Resin Ribbon, 60mmx450m (2.36inx1476ft), 6200; Resin, 25mm (1in) core $37.95 View Product
Zebra OneCare Select ZT4X 2YR Comp Rnw OneCare, Select, Renewal, Advanced Exchange (select countries only), ZT410, ZT420, 2 Years, Comprehensive $803.28 View Product
Zebra OneCare Select ZT4X 1yr Comp Rnw OneCare Select ZT4X 1yr Comp Rnw $422.51 View Product
Zebra ONECARE ESSENTIAL ZT4X 2YR COMP RNW ONECARE ESSENTIAL ZT4X 2YR COMP RNW $617.32 View Product
Zebra Onecare Essential ZT4X 1YR Comp RNW Onecare Essential ZT4X 1YR Comp RNW $325.11 View Product
Zebra Service OneCare Essential ZT4X 3Yr Service OneCare Essential ZT4X 3Yr $277.04 View Product
Zebra OneCare Select ZT4X 5 Yr Comp OneCare Select ZT4X 5 Yr Comp $1,690.04 View Product
Zebra Service Onecare Essential ZT4X 5YR Comp Service Onecare Essential ZT4X 5YR Comp $1,300.42 View Product
Zebra WIFI Upgrade kit WIFI Upgrade kit, 802.11AC, For the ZT411/ZT421/ZT510/ZT600 series printers $578.11 View Product
Zebra Upgrade Kit ZT420 Cutter Kit Cutter Upgrade ZT420 $1,640.71 View Product
Zebra Platen Roller ZT420 ZT421 Kit, Platen Roller, ZT420, ZT421 $149.27 View Product
Zebra Printhead ZT420 ZT421 203DPI PRINTHEAD ZT420/ZT421 203DPI $929.78 View Product
Zebra Replacement Antenna WI-FI ac n klit, Tabletops Kit, Replacement Antenna Wi-Fi ac n klit, Tabletops $113.85 View Product
Zebra Bridge Enterprise 100+ Printers Bridge Enterprise 100+ Printers $1,182.78 View Product
Zebra Z-Perform 2000T Thermal Transfer, Permanent Adhesive Label $18.98 View Product
Seagull Scientific BARTENDER AUTO With BarTender, you get improved design quality, reduced label maintenance, maximized printing performance and the ability to remain compliant with changing standards. $5.59 View Product
Seagull Scientific BARTENDER ENT - APP BarTender Enterprise - Application $1.80 View Product
Zebra ONECARE ONSITE SBD ZT4X Zebra OneCare, Purchased within 30 days of Printer, Second Business Day Onsite (Australia only; Available for locations within 75KM of Sydney, Melbourne, Brisbane, Adelaide, Perth), ZT410, ZT420, Comprehensive $569.25 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document ZT-400 Quick Reference Guide 3MB Download
PDF Document ZT-400 Brochure 9MB Download
