POSMarket SKU: Z5275
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

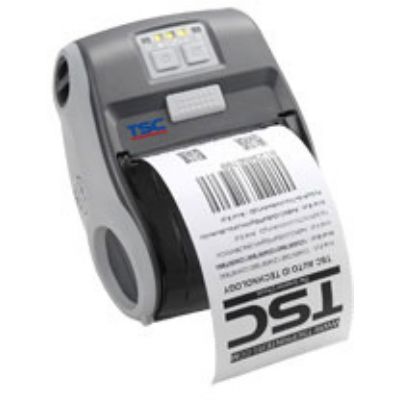

The Alpha 3R is a Mobile Thermal Receipt Printer which can print on 3-inch wide receipt rolls. It comes standard with a 2500 mAh battery which is amongst the largest in its class offering up to 12 hours of operation on a single charge. With its capability to hold larger receipt rolls these features make the Alpha 3R the ideal choice for demanding mobile printing requirements.
Resolution | 8 dots/mm (203 DPI) |
Printing method | Direct Thermal |
Max print speed | 102mm/second |
Max print width | 72mm |
Max print length | 2,286mm |
Enclosure | Double-walled plastic with rubber over molded |
Physical dimension | 116 mm (W) x 148 mm (H) x 70 mm (D) |
Weight | (including battery) 0.55 kg |
Drop specification | 1.5 m |
IP rating | IP54 (w with case) |
Max roll capacity | 57 mm OD |
Processor | 32-bit RISC CPU |
Memory | 4 MB Flash memory 8 MB SDRAM |
Interface | USB 2.0 802.11 b/g/n Wireless (factory option) Bluetooth (factory option) RS-232 (user option) |
Power | Two-cell, 7.4V DC, 2500 mAh Li-ion rechargeable battery |
Operation switch, button | 3 buttons (On/off, feed, and cover-open) 2 color LED for printer status, 3 LEDs for battery status |
Sensors | Reflective sensor Head open sensor |
Internal fonts | 8 alpha-numeric bitmap fonts One Monotype Imaging CG Triumvirate Bold Condensed scalable font |
1D Barcode support | Code 39 Code 93 Code128 UCC Code128 subsets A.B.C Codabar Interleave 2 of 5 EAN-8 EAN13 EAN-128 UPC-A UPC-E EAN and UPC 2(5) digits add-on MSI PLESSEY POSTNET China POST GS1 Data bar |
2D Barcode support | PDF-417 Maxicode DataMatrix QR code Aztec |
Printer language | TSPL-EZ (EPL2, ZPL2) & CPCL emulation |
Media type | Receipt paper & Black line receipt paper (Black mark in printing side) |
Max media width | 80 mm |
Media thickness | 0.0508 ~ 0.1016 mm |
Media core diameter | 10.2 ~ 19 mm |
Environment condition | Operation: -10 ~ 50C, 10 ~ 90% non-condensing Storage -40 ~ 60C, 10 ~ 93% non-condensing |
Safety regulation | FCC , CE , CB , CCC |
Environmental concern | Comply with RoHS, WEEE |
Accessories | Windows labeling software CD disk Quick start guide Belt Clip Li-ion battery Power adapter |
Limited warranty | Printer: 2 years Print head: 25 km (1 million inches) or 12 months which comes first Platen: 25 km (1 million inches) |
Factory options | 802.11 b/g/n Wireless network Bluetooth module |
User options | RS-232 cable USB cable Li-ion battery Charge station 1 cell (with changeable power connector) Vehicle power adapter IP54-rated environmental case with shoulder strap |
Model | Description | Price | Stock | |
---|---|---|---|---|
99-048A051-00LF | Alpha 3R Mobile printer. Label & Receipt, WIFI & USB interface | $893.75 | Add to Cart | |
99-048A013-00LF | Alpha 3R Mobile printer. Label & Receipt, Bluetooth & USB interface | $756.25 | Add to Cart |
Model | Description | Prices From | |
---|---|---|---|
TSC ALPHA 2R IP54 CASE & STRAP | ALPHA 2R IP-54 rated environmental case with shoulder strap | $156.75 | View Product |
TSC ALPHA 3R 4 SLOT BATTERY CHARGER | ALPHA 3R 4 Slot Battery Charger | $173.25 | View Product |
TSC ALPHA 3R IP54-RATED ENVIRONMENTAL CASE | ALPHA 3R IP54-rated environmental case with shoulder strap | $156.75 | View Product |
TSC Alpha 3R Li-Ion Battery | Battery Li-Ion for TSC Alpha 3R | $136.74 | View Product |
TSC Alpha Charger | Alpha Vehicle Charger and vehicle power adaptor | $71.61 | View Product |
TSC Mini USB cable | Mini USB cable for Alpha mobile printer series | $15.35 | View Product |
TSC USB converter cable | RS232 to mini USB for Alpha Receipt series printers | $28.88 | View Product |
Seagull Scientific BARTENDER AUTO | With BarTender, you get improved design quality, reduced label maintenance, maximized printing performance and the ability to remain compliant with changing standards. | $5.59 | View Product |
Seagull Scientific BARTENDER ENT - APP | BarTender Enterprise - Application | $1.80 | View Product |
Filename | Size | ||
---|---|---|---|
![]() |
alpha-3r User Manual | 3MB | Download |
![]() |
39-0480001-20lf alpha-3r User Set Up Guide | 1MB | Download |
![]() |
alpha 3r Brochure | 980KB | Download |
