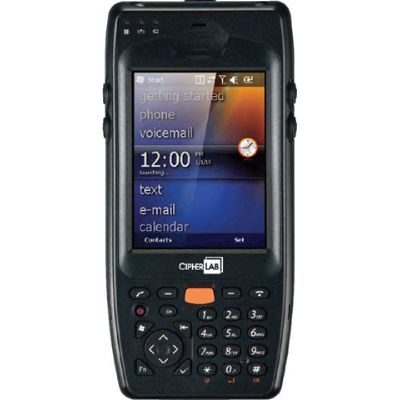

CipherLab CP45
POSMarket SKU: Z4989
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.
Built to support your mobile workforce at the warehouse or in the field the CipherLab CP45 series mobile computers deliver an optimal combination of anywhere mobility and real-time data communication into a rugged PDA form factor. Handy yet feature-packed the CP45 series accelerates productivity and boosts efficiency wherever you need it.
Product Overview
The CipherLab CP40 and CP45 features:
- It has a lightweight, thin and ergonomic form factor. All the units are less than an inch thick.
- Each handheld comes bundled with a communication/charging cradle, spare battery, USB cable, power supply, headphones and extra stylus.
- Three-year manufacturer warranty
CP 40 Features: - Microsoft® Windows® Mobile 6.1 operating system
- Built on Marvell PXA270 processor @ 624MHz
- 3.5" color QVGA TFT touch screen with Alpha-Numeric or QWERTY keypad
- IP65 rated, multiple 1.5 m / 5 ft. drops onto concrete
- CCX V4 certified WLAN and WPAN on board, optional 3G
- Choice of 1D laser and RFID
- 2 megapixels auto focus camera with LED flash
- GPS ready
The mobile computers also offer a number of industry-specific features:
Healthcare:
The CP40 Series offer a healthcare version that can be wiped down to reduce the spread of dangerous germs without enclosure damage and include the 2D barcode scanning necessary in a healthcare environment.
Retail:
WWAN (wireless wide area network) technology enables a user to easily transmit data on the go, or even make a phone call to other stores right from the handheld. A pistol grip option makes for faster scanning, while a touch screen enables signature capture and a receipt can easily be generated through WPAN (wireless personal area network) connection to a portable printer.
Manufacturing/Warehouse:
The CP40 Series offers RFID (radio frequency identification) to provide the asset tracking critical for managing a warehouse or manufacturing process, and built-in cameras to capture quality defects or to validate builds. Where real-time data sharing is essential, WLAN (wireless local area network) can be used for wireless access to enterprise resource planning software.
Logistics (package/mail and direct store delivery):
The CP40 Series provides the GPS route navigation and WWAN data communication necessary for smooth deliveries in the field. A touch screen can be used for signature capture and WPAN for mobile printing of invoices for faster payment.
Field service: To keep a mobile workforce connected and in touch on the go, WWAN can be used to make phone calls, transmit data and access the Web. A built-in 1D or 2D scanner and RFID technology helps utilities and other field crews track assets and inventory. GPS ensures a worker never gets lost and helps mark the location of an asset.
Product Specifications
| Performance | |
| Operating System | Windows Mobile 6.5 |
| Processor | Marvell PXA320 @ 806 MHz |
| Program Memory | 256 MB RAM |
| Data Memory | 128MB |
| Expansion | MiniSD Card |
| Operating Power | Standard: Li-ion 3.7V 2,200mAh |
| Extended: | Li-ion 3.7V 4,000mAh |
| Wireless Communications | |
| WLAN | IEEE 802.11b/g Cisco CCX (v4) |
| WLAN Security | WEP, EAP, WPA(PSK), WPA2 (AES, PSK) 802.1X |
| GPS | SiRF star III |
| Data Capture | |
| Barcode scanning | Laser |
| RFID Read/Write | 13.56 MHz Frequency |
| Supported tags: | ISO 14443A, ISO 1443B, ISO 15693 |
| Digital Camera | 2 Megapixel autofocus with LED flash |
| Physical | |
| Display | 3.5 QVGA TFT-LCD 260k color, backlight LED type |
| Keypad | 27 Alpha-Numeric or 53 QWERTY Kaypads |
| Size | 163.5 X 78.6 X 24.9 mm |
| Weight | 320g (Including standard battery) 350g (Including extended battery) |
| Environment | |
| Operating Temperature | -20 to 60 C/ -4 to 140 F |
| Storage Temperature | -30 to 70 C/ -22 to 158F |
| Humidity | Operating 10% to 90% (non-condensed) |
| Impact resistance | Multiple 5 ft drops onto concrete IP65 |
| EMC regulation | FCC, CE |
Product Configurations
Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.
Product Accessories
| Filename | Size | ||
|---|---|---|---|
 |
CipherLab CP40 Datasheet | 330KB | Download |
