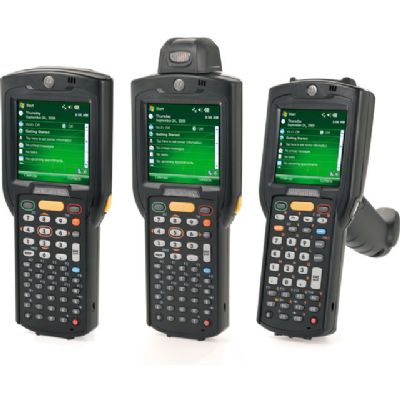

Motorola MC3190
POSMarket SKU: Z4205
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.
Building on the successful MC3000, the Motorola MC3100 Series brings cost-effective mobility and user comfort to key-based applications within the four walls. The rugged and ergonomic MC3100 offers advanced computing power and data capture capabilities enhanced security and enterprise class motion sensing capabilities.
Product Overview
- Motorola MAX Rugged meets applicable MIL-STD and IEC specifications for drop, tumble and sealing
- Mobility Platform Architecture (MPA) 2.0
- FIPS 140-2 certification and support for the most advanced encryption and authentication algorithms, as well as Virtual Private Networks (VPNs), enables compliance with the most stringent industry security regulations, including sensitive government applications
- Microsoft Windows Mobile 6.X or Windows CE 6.0 operating system
- Motorola MAX Sensor
- Capture the data you need today and tomorrow with industry leading advanced laser scanning or imaging technology
- Backward compatibility with MC3000 accessories
- Integrated UHF RFID tag allows enterprises to track and locate MC3100 devices
- New rugged audio jack
- Polycarbonate Insert Mold Decorated (IMD) keypad
- WLAN: 802.11a/b/g tri-mode radio, comprehensive Voiceover-WLAN support
- WPAN: Bluetooth v2.1 with EDR
- Keypad options: 28 key numeric, 38 key shifted alpha, 48 key alphanumeric
- Compatibility with Motorola Mobility Services Platform (MSP) and Motorola Mobility Suite provides superior centralized and remote management
Product Specifications
| Form-factor | Rugged handheld RFID reader |
| CPU Speed | Marvell PXA320/624 MHz |
| OS | Windows Embedded handheld 6.5.3 |
| RAM/ROM | 256MB/1GB Flash |
| Card slots | Apparently none |
| Display type | Color TFT |
| Display size/res | 3.0"/320 x 320 pixel |
| Digitizer/pens | Touch/1 |
| Keyboard/keys | 48-key alphanumeric keypad |
| Navigation | Directional control, triggers |
| Housing | Impact-resistant plastic |
| Operating Temp | 14° to 122°F (-10° to 50°C) |
| Sealing | IP54 |
| Shock | Multiple 4-foot drops |
| Tumble | 500 0.5 m tumbles (1,000 drops) |
| Size (WxHxD) | 4.7 x 7.6 x 6.4 inches (119 x 193 x 160 mm) |
| Weight | 23 oz. incl. battery and strap (650 g) |
| Power | 3.7V, 4,400 mAH Li-Ion |
| Scanner | Options: 1D laser, 1D/2D imager, RFID (EPC Gen 2 DRM) |
| Interface | RS232, USB (host and client) |
| Wireless | Dual-band 802.11a/b/g WiFi, Bluetooth |
Product Configurations
Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.
| Model | Description | Prices From | |
|---|---|---|---|
| Zebra MC3300 | The MC3300 is the latest iteration in Zebra's hardworking MC3000 range, now featuring Android OS. | $1,782.39 | View Product |
| Zebra MC3390R | The Zebra MC3390R is the Long Range RFID reader in Zebra's MC3000 range. | $CALL | |
| Zebra MC3300X | The MC3300X is the next evolution of Zebra's famous MC3300 family of keypad/touch mobile computers. | $2,671.89 | View Product |
| Zebra MC3090/MC3190/MC32N0 Rubber Boot | This protective rubber boot is designed for the MC3090/MC3190/MC3200 gun when using both imager and laser configurations. | $10.12 | View Product |
| Zebra MC3190/MC32 RS232 Data Cable | This cable provides serial communication between the Single Slot Serial/USB cradle and a host computer. | $29.10 | View Product |
| Zebra MC70/75, MC30/31/32 Battery Cradle | 4-slot battery charging cradle for the MC70, MC75, MC30, MC31, MC32 Mobile Computers. | $237.82 | View Product |
| Zebra MC31/32 Headset Adapter Cable | MC31, MC32 Headset Adapter Cable. | $65.78 | View Product |
| Zebra OneCare Essential for MC31XX | Comprehensive Repair/Replace, Software & Technical Support for the MC31XX. | $135.36 | View Product |
| Zebra OneCare Essential for MC319R | Comprehensive Repair/Replace, Software & Technical Support for MC319R. | $330.17 | View Product |
| Zebra Enterprise Browser 2 Software Support | 1 year software support for Zebra Enterprise Browser | $28.64 | View Product |
| Zebra OneCare Select for MC31XX | Access around-the-clock support with the Zebra OneCare Select plan. | $168.25 | View Product |
| Zebra Cable Serial QLN To MC3000 AP DTR | Serial Cable, RJ-45 to MC3000 8' Coiled AP DTR | $99.94 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
Motorola MC3100 Product Spec Sheet | 168KB | Download |
