POSMarket SKU: Z4500

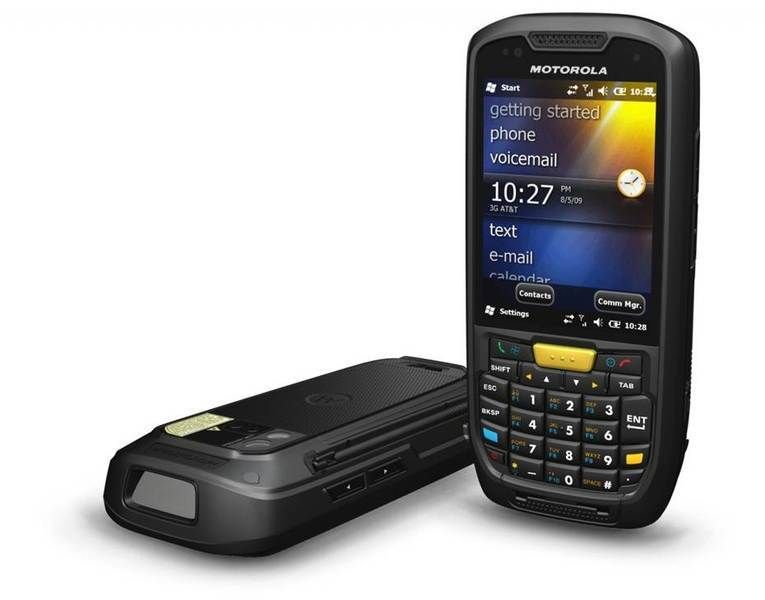

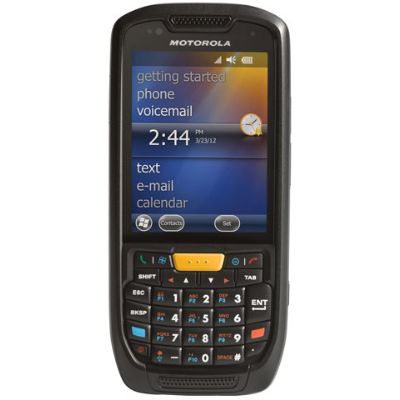

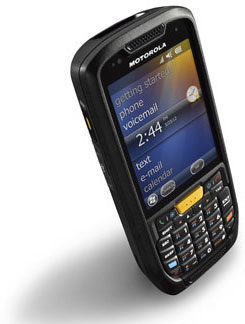

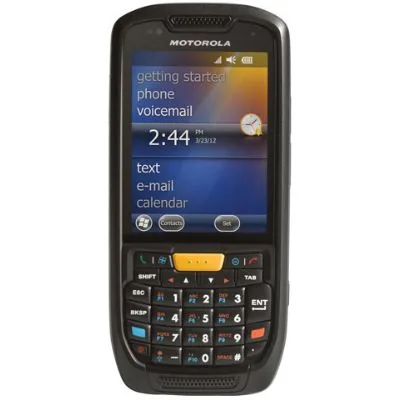

The MC45 is the affordable way to give your workers the real-time information they need to get the job done right right on the spot preventing lost sales and lost customers.
| Physical Characteristics | |
| Dimensions: | 5.6 in. x 2.6 in. x 1.0 in. (14.2 cm x 6.6 cm x 2.5 cm) |
| Weight: | 8.73 oz./247.4 g |
| Display: | Outdoor-viewable 3.2 in. QVGA with backlight (240 W x 320 L) |
| Touchpanel: | Polycarbonate analog resistive touch |
| Backlight: | LED backlight |
| Standard Battery: | Rechargeable Lithium Ion 3.7V, 3080 mAh |
| Expansion Slot: | User accessible 32 GB microSD slot with SDHC support |
| Network Connections: | USB 2.0 High Speed (host and client), WLAN, WWAN and Bluetooth |
| Notification: | Vibrator and audible tone plus multi-color LED |
| Keypad: | 26-key numeric |
| Voice and Audio: | VoWWAN: handset mode with active noise reduction, high-quality speaker phone, Bluetooth //wireless headset mode |
| Performance Characteristics | |
| CPU: | ARM 11 processor (600 MHz), MSM 7627 |
| Operating System: | Microsoft Windows Embedded Handheld 6.5.3 Professional Edition |
| Memory: | 256MB RAM/1GB Flash |
| User Environment | |
| Operating Temp: | -10 C to 50 C (14 F to 122 F) |
| Storage Temp: | -40 C to 70 C (-40 F to 158 F) |
| Humidity: | 5% to 95% non-condensing |
| Drop Specification: | Multiple 5 ft./1.5 m drop per MIL-STD 810G, multiple 3 ft./0.9 m drop to concrete over operating temperature range |
| Tumble Specification: | 250 0.5 m (1.5 ft.) tumbles (500 drops); per applicable IEC tumble specifications |
| ESD: | +/-15kVdc air discharge, +/-8kVdc direct discharge, +/-8kVdc indirect discharge |
| Sealing: | IP 64 per applicable IE C sealing specifications |
| Vibration: | .02g2/Hz Random, Non-Operating, 1 hour duration per axis |
| Thermal Shock: | -40 F to 158 F/-40 C to 70 C rapid transition |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| MC4597-BAPBA0000 | MC45 Mobile Computer. 3.5G WAN (850/1900MHz), WIFI, Bluetooth, GPS, 1D Laser Scanner, WEH 6.5 | $CALL |
| Model | Description | Prices From | |
|---|---|---|---|
| Zebra ES400 MC45 Extended Battery | 3080mAh extended capacity battery for the ES400 & MC45. | $56.93 | View Product |
| Zebra MC55 65 67 Multi Dock Kit | 4-slot charging cradle for the MC55, MC65, & MC67. | $470.58 | View Product |

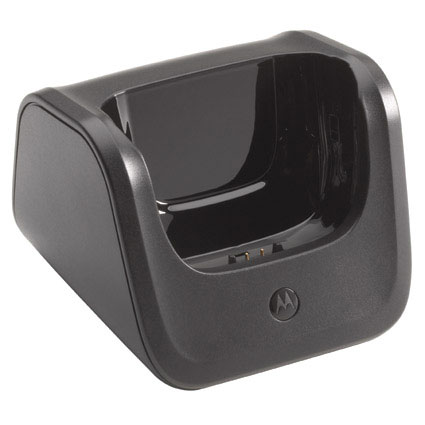

| Zebra MC45 Charging Cradle | MC45 Single Slot Charging Cradle - Must order power supply (PWRS-124306-01R) separately. | $72.11 | View Product |
| Zebra MC45 Multi Dock Charging Kit | 5-slot charge-only multi dock kit for the MC45. | $314.99 | View Product |
| Zebra MC45 Screen Protector | MC45 Screen Protector - 10 pack. | $166.98 | View Product |
| Zebra MC45 Belt Holster | Soft case holster for the MC45. | $54.40 | View Product |
| Zebra MC45 Hand Strap | Single pivot hand strap for the MC45. | $18.98 | View Product |
| Zebra ES400/MC45/TC55 Auto Charge Cable | Micro USB Auto Charger for the Motorola MC45 or TC55 Mobile Barcode Terminals. | $82.23 | View Product |
| Zebra OneCare Essential for MC45XX | Comprehensive Repair/Replace, Software & Technical Support for MC45XX | $106.26 | View Product |
| Wavelink Velocity TE Client License | Wavelink Velocity TE Client License | $379.50 | View Product |
| Zebra ERDP License | ERDP license fee per device for 3 years | $91.08 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
MC45 SPEC SHEET | 1MB | Download |
