ELO 1002L

from $770.00 (incl. GST)

POSMarket SKU: Z5816

This model is available in 3 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

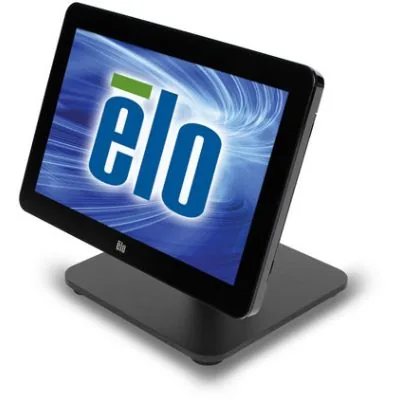

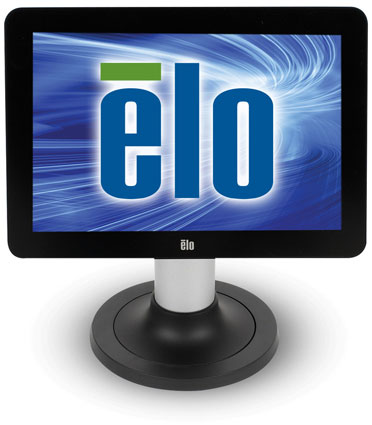

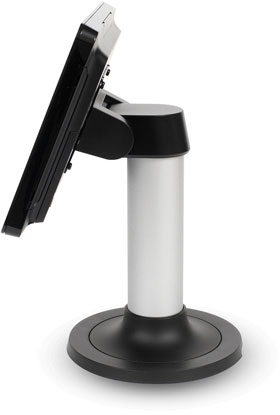

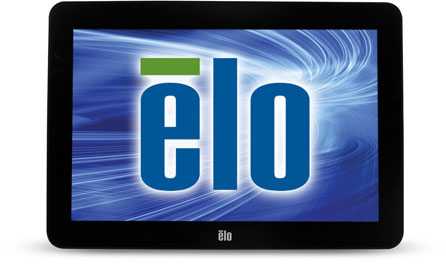

The ELO M-Series 1002L 10-inch widescreen LED touchscreen monitor delivers a seamless zero-bezel edge-to-edge glass design with ELOs industry-leading TouchPro PCAP technology. The sleek low-profile retail-hardened touchscreen features a 10-touch tablet-like experience and an anti-glare surface built to withstand the rigors of continuous public use making the 1002L well suited for high traffic environments.

Product Rating
Product Overview
Installation flexibility
The Elo M-Series is available in 10, 15, and 20 inch sizes with multiple mount and stand options to ensure installation flexibility with tabletop use as well as wall- and pole-mount in portrait and landscape via standard VESA mount patterns.

POS ready

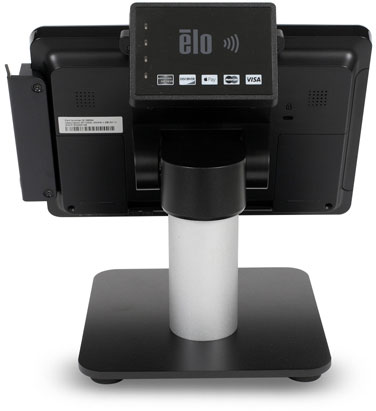

The 1002L offers optional universal retail accessories with easy installation including: a mag stripe reader (MSR), barcode reader, fingerprint scanner, customer-facing display and near-field communication (NFC/RFID) adapter for mobile payments and increased compatibility with the latest point of sale applications.

Commercial grade
The 10-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

Other features
  • Energy savings using LED technology
  • TouchPro and non-touch models available
  • Edge-to-edge glass display with anti-glare for retail interiors
  • Installation flexibility with mounting in portrait, landscape and table-top orientation
  • Typical power consumption: 5.6W; power
  • Power over USB using optional cable
  • Three-year standard warranty
Product Specifications
ELO M-Series 1002
Enclosure ColorBlack
Touch Technology & CapacityNon-Touch, PCAP (Projected Capacitive) - 10 Touch
Diagonal Size10.1'' diagonal, Active matrix TFT LCD (LED)
Monitor Thickness1.14''/ 29mm panel depth
Aspect Ratio16:10
Active Area (mm)8.57'' x 5.37'' / 218mm x 136.6mm
Resolution1280 x 800
Other Supported Resolutions640 x 480 @ 60Hz, 800 x 600 @ 60Hz, 1024 x 768 @ 60Hz, 1280 x 800 @ 60Hz, 1920 x 1080 @ 60Hz, 1920 x 1200 @ 60Hz
Viewing AngleHorizontal: +/-85 degrees or 170 degrees total / Vertical: +/-85 degrees or 170 degrees total
Number of Colors262,000
Brightness (typical)LCD panel: 350 nits, PCAP (DC Power): 315 nits, PCAP (USB Power): 176 nits
Response Time-total (typical)25 m/sec
Contrast Ratio700:1
Touch InterfaceUSB
ModelDescriptionPriceStock
E155834 1002L 10.1" wide LCD Monitor, HD 1280 x 800, Projected Capacitive 10-touch, USB Controller, Anti-glare, Zero-bezel, No stand, USB-C, HDMI and VGA Inputs, Black, Worldwide $983.13
Call
 Add to Cart
E324341 1002L 10" IntelliTouch Pro touch screen, USB-C,VGA, HDMI interface, Black, Stand sold separately $770.00
Call
 Add to Cart
E045337 1002L 10" IntelliTouch Pro touch screen, VGA/HDMI interface, USB touch controller, Black. Stand sold separately $CALL
Call
ModelDescriptionPrices From
ELO Backpack The Elo Backpack android compute engine transforms touchscreen monitors and signage displays into commercial-grade systems capable of running audio and video content interactive HTML webpages and Android-based apps. $CALL
ELO BACKPACK WITH GOOGLE PLAY SERVICES 3.0 Elo Backpack with Google Play Services (3. $1,039.50 View Product
ELO ELO BACKPACK 4.0 The Elo Backpack is a powerful, commercial-grade Android 10 compute engine designed to simplify the deployment of content, websites and Android-based apps. $1,039.50 View Product
ELO EDGE CONNECT 2D BARCODE SCANNER SE4107 Elo Edge Connect 2D Barcode Scanner $495.00 View Product
ELO PSU Kit for 1002 1502L 3M Power Brick Kit - 3m Power Cable - M Series Monitors (1002L/1502L) $181.50 View Product
ELO Cable Kit Mini-VGA to VGA USB HDMI Audio 3m Cable Kit - M Series Monitors (1002L/1502L) Includes: Mini-VGA to VGA, USB, HDMI, and audio $132.00 View Product
ELO DESKTOP STAND FOR 1002L and I-SERIES 10 INCH Tabletop Stand for 10 inch' I-Series and 1002L $297.00 View Product
Atdec Spacedec Direct Wall Mount The black Spacedec SD-WD Wall Mount from Atdec is a low-profile, robust mount created to cope with demanding commercial environments and a heavy workload, where quick installation and flexible screen positioning are required. $108.63 View Product
Ergonomic Solutions SpacePole VESA Bracket for 15 inch Screen Screen add-on bracket for VESA w/ MultiGrip for 15 inch screen. $99.69 View Product
Ergonomic Solutions SpacePole VESA Hook-On Pole Mount The SpacePole Height Adjustable VESA Screen Mount answers an important ergonomic issue at the point of sale. $295.63 View Product
Ergonomic Solutions SpacePole 400mm Dual Screen Mount for Engage One Back-to-back screen mount solution, Engage One/VESA 400mm pole. $632.50 View Product
Ergonomic Solutions SpacePole VESA Pole Mount The classic SpacePole Screen Mount is probably the most used foundation in mounting POS systems. $CALL
Ergonomic Solutions Spacepole Essentials Standard Mount SpacePole Essentials is a product range appropriate for technology partners and end users alike. $254.38 View Product
Ergonomic Solutions SpacePole Back to Back VESA Pole Mount Back to back enables two screens to be fitted to one SpacePole. $508.75 View Product
Ergonomic Solutions SpacePole Swing Arm Pole Mount 200mm Our popular Swing Arm provides an ergonomic solution where peripherals or the screen itself is needed to swing between the operator and customer. $316.25 View Product
Ergonomic Solutions Spacepole Essentials 200mm Swing Arm Mount SpacePole Essentials is a product range appropriate for technology partners and end users alike. $302.50 View Product
Ergonomic Solutions SpacePole Height Adjustable VESA Pole Mount The Height Adjustable Arm is an ergonomically designed mounting solution that reduces the possibility of Repetitive Strain Injury (RSI), whilst assisting productivity at the workstation. $783.75 View Product
Ergonomic Solutions SpacePole 300mm Elbow-Arm Pole Mount When extra reach is required, the elbow arm allows even greater accessibility for the customer or second operator. $419.38 View Product
ELO 24V DC Converter Kit The 24 VDC Converter Kit provides conversion from 24V to 12V, which allows kiosk manufacturers to leverage a common 24V power supply in their kiosk design and have a single AC connection. $111.38 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document 1002l brochure 398KB Download
