POSMarket SKU: Z5819
This model is available in 3 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

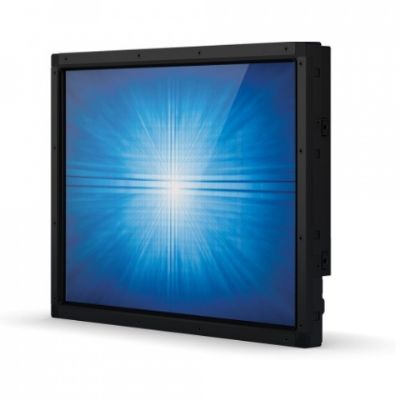

The ELO 1590L 15 open-frame LCD touch display complements the ELO expanding family of touch solutions for kiosks casino and amusement retail self-service and industrial floor automation.
| Enclosure Color: | Black | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Touch Technology andCapacity: | 5-Wire Resistive (AccuTouch) - Single-Touch SAW (IntelliTouch Surface Acoustic Wave) - Single Touch,PCAP (TouchPro Projected Capacitive) - 10 Touch SAW (SecureTouch Surface Acoustic Wave) - Single Touch | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Touch Interface: | TouchPro PCAP - USB 2.0 AccuTouch IntelliTouch, SecureTouch - Dual serial/USB 2.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Diagonal Size: | 15" diagonal, Active matrix TFT LCD (LED) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| On Screen Display: | Accessible through switches on the unit�™s tethered OSD Control box. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Controls: | Menu, Up, Down, Select, Power | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Settings: | Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Thru | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Languages: | English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lockouts: | OSD, Power | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Aspect Ratio: | 4:3 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Active Area (mm): | 11.97" x 8.98"/ 304.1mm x 228.1mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolution: | 1024 x 768 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Other Supported Resolutions: | 640 x 480 60Hz 720 x 400 70Hz 800 x 500 60Hz 800 x 600 56 60Hz 1024 x 768 60Hz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Viewing Angle | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Horizontal: | +/-80 Degrees or 160 Degrees total | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Vertical: | 70 Degrees/80 Degrees or 150 Degrees total | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Number of Colors: | 16.2 million | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Brightness (typical)
| LCD Panel: | 300 nits | AccuTouch: | 240 nits | IntelliTouch: | 270 nits | SecureTouch: | 264 nits | TouchPro PCAP: | 270 nits | Response Time-total (typical): | 23 msec | Contrast Ratio: | 700:1 | Input Video Format: | HDMI V1.3 Type A receptacle for HDMI input, Analog VGA on Female DB-15 connector, DisplayPort V1.1a - Supports later versions of Display Port video input | Input Video Frequency | Horizontal: | 30 - 60 KHz | Vertical: | 50 - 75 Hz | Video Interface: | HDMI, VGA & Display Port | Power Supply: | External DC Optional power brick (sold separately), Input power connector (Monitor),Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth) | Input Voltage: | 12VDC +/- 5% | Adapter Output Power Connector: | DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length) | Power Consumption (Typical) | Monitor + Adapter: | 230V/50Hz | ON: | 12.5 W | SLEEP: | 1.5 W | OFF: | 0.5W | Dimensions | Bezel: | 13.24" x 10.41" x 1.65" / 336.4mm x 264.4mm x 41.9mm | Zero-Bezel: | 14.09" x 11.22" x 1.40" / 358mm x 284.9mm x 35.6mm | Shipping Box Dimensions: | 17.09" x 14.76" x 6.89" / 434mm x 375mm x 175mm | Weight (Unpackaged): | 6.4 lbs / 2.9 Kg | Weight (Packaged): | 10.36 lbs / 4.7 Kg | Operating Temperature: | 0 C to 40 C / 32 F to 104 F | Storage Temperature: | -20 C to 60 C / -4 F to 140 F | Humidity | Operating: | 20% to 80% | Storage: | 10% to 95% | Sealability | Touchscreen | sealed to bezel | Touchscreen | sealed to LCD | MTBF: | 50,000 hours demonstrated | Warranty: | 3-year | | ||||||
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| E334530 | 1590L 15" SecureTouch touch screen, HDMI/VGA/Display Port interface, USB & Serial touch controller, No power brick | $1,464.38 | Add to Cart | |
| E326154 | 1590L 15" AccuTouch touch screen, HDMI/VGA/Display Port interface, USB & Serial touch controller, No power brick | $1,340.63 | Add to Cart | |
| E326738 | 1590L 15" IntelliTouch touch screen, HDMI/VGA/Display Port interface, USB & Serial touch controller, No power brick | $1,340.63 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| ELO Backpack | The Elo Backpack android compute engine transforms touchscreen monitors and signage displays into commercial-grade systems capable of running audio and video content interactive HTML webpages and Android-based apps. | $CALL | |
| ELO BACKPACK WITH GOOGLE PLAY SERVICES 3.0 | Elo Backpack with Google Play Services (3. | $1,039.50 | View Product |
| ELO ELO BACKPACK 4.0 | The Elo Backpack is a powerful, commercial-grade Android 10 compute engine designed to simplify the deployment of content, websites and Android-based apps. | $1,039.50 | View Product |
| ELO Stylus PCAP Pen | PCAP Stylus Pen | $33.00 | View Product |
| Atdec Spacedec AD-30100-WF Vesa Thin Wall Mount | The AD-30100-WF securely supports displays weighing up to 30kg and sits just 14. | $37.13 | View Product |
| Atdec Spacedec Direct Wall Mount | The black Spacedec SD-WD Wall Mount from Atdec is a low-profile, robust mount created to cope with demanding commercial environments and a heavy workload, where quick installation and flexible screen positioning are required. | $108.63 | View Product |
| Ergonomic Solutions SpacePole VESA Bracket for 15 inch Screen | Screen add-on bracket for VESA w/ MultiGrip for 15 inch screen. | $99.69 | View Product |
| Ergonomic Solutions SpacePole VESA Bracket for 22 inch Screen | Screen add-on bracket for VESA w/ MultiGrip for 22 inch Screen. | $110.00 | View Product |
| Ergonomic Solutions SpacePole VESA Pole Mount | The classic SpacePole Screen Mount is probably the most used foundation in mounting POS systems. | $CALL | |
| Ergonomic Solutions Spacepole Essentials Standard Mount | SpacePole Essentials is a product range appropriate for technology partners and end users alike. | $254.38 | View Product |
| Ergonomic Solutions SpacePole Back to Back VESA Pole Mount | Back to back enables two screens to be fitted to one SpacePole. | $508.75 | View Product |
| Ergonomic Solutions SpacePole Swing Arm Pole Mount 200mm | Our popular Swing Arm provides an ergonomic solution where peripherals or the screen itself is needed to swing between the operator and customer. | $316.25 | View Product |
| Ergonomic Solutions Spacepole Essentials 200mm Swing Arm Mount | SpacePole Essentials is a product range appropriate for technology partners and end users alike. | $302.50 | View Product |
| Ergonomic Solutions SpacePole Height Adjustable VESA Pole Mount | The Height Adjustable Arm is an ergonomically designed mounting solution that reduces the possibility of Repetitive Strain Injury (RSI), whilst assisting productivity at the workstation. | $783.75 | View Product |
| ELO 24V DC Converter Kit | The 24 VDC Converter Kit provides conversion from 24V to 12V, which allows kiosk manufacturers to leverage a common 24V power supply in their kiosk design and have a single AC connection. | $111.38 | View Product |
| ELO Backpack 4 | The Elo Backpack is a powerful, commercial-grade Android 10 compute engine designed to simplify the deployment of content, websites and Android-based apps. | $976.80 | View Product |
| Atdec SD-AT-DW-BK | Full motion wall mount | $377.85 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
1590l | 194KB | Download |
