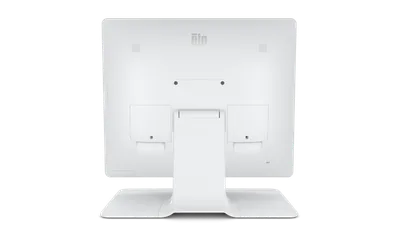

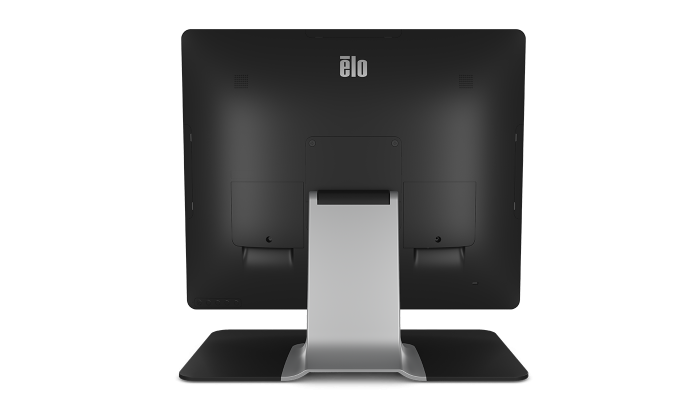

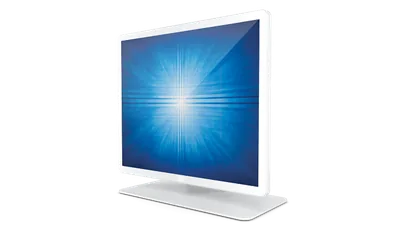

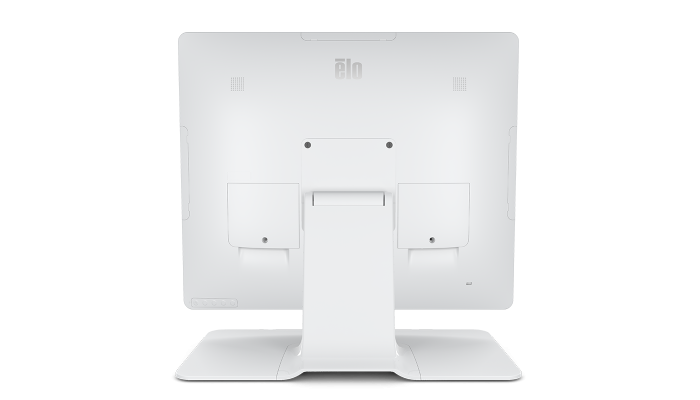

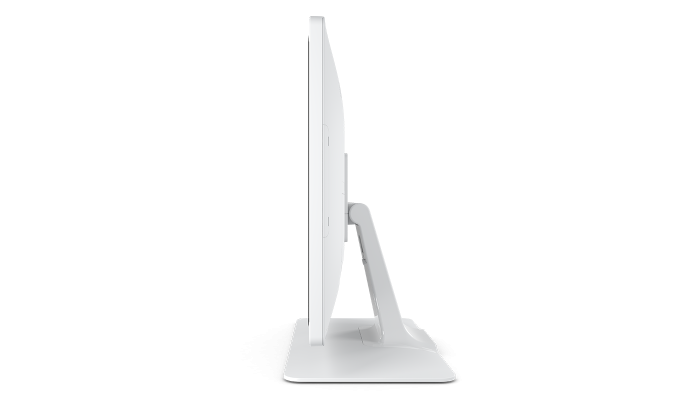

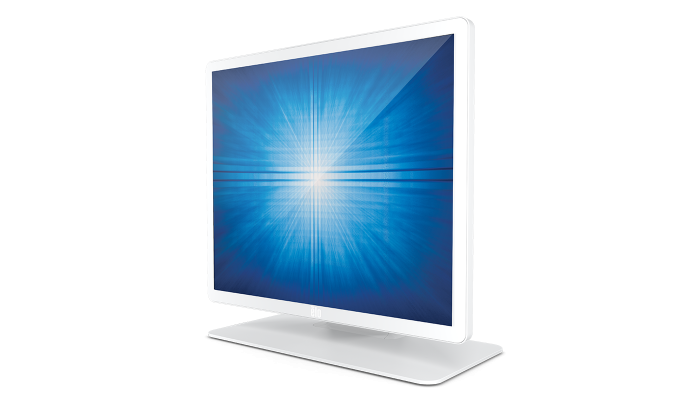

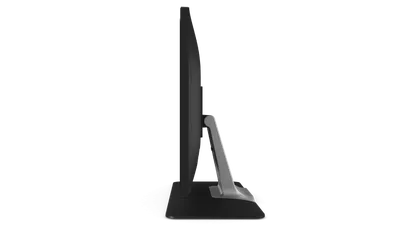

ELO 1903LM

from $2,234.38 (incl. GST)

POSMarket SKU: Z8807

This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

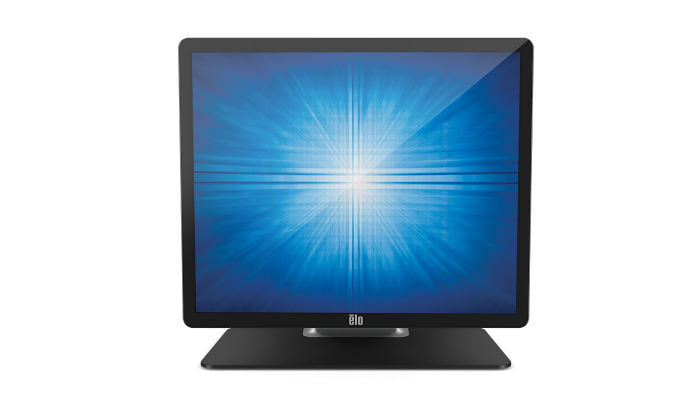

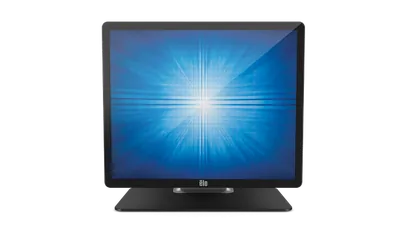

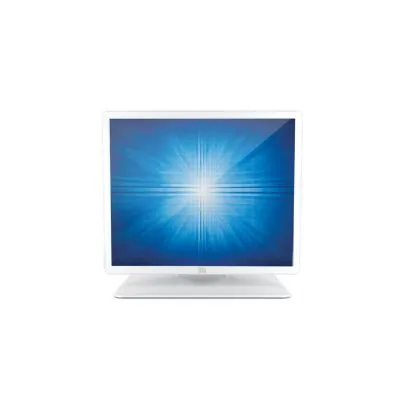

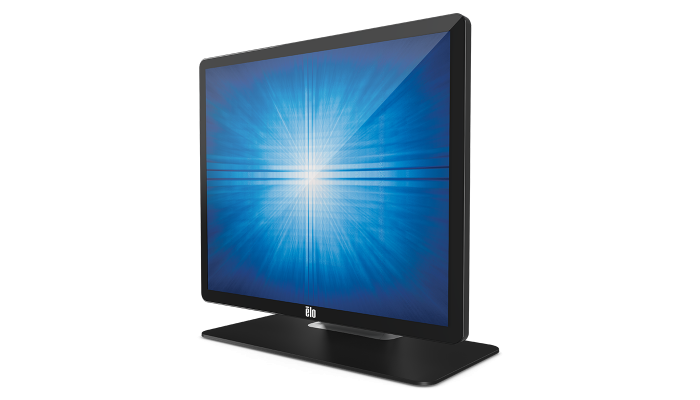

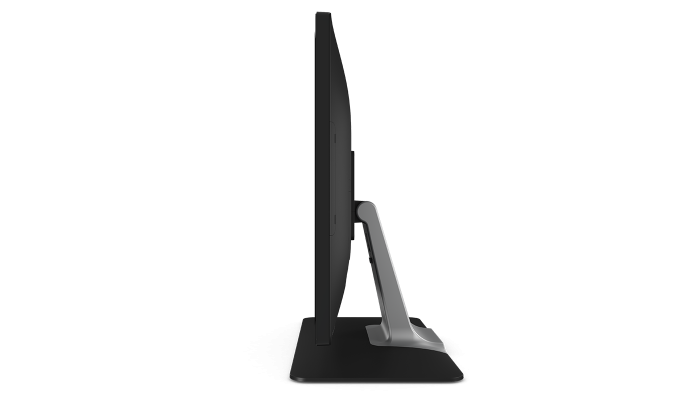

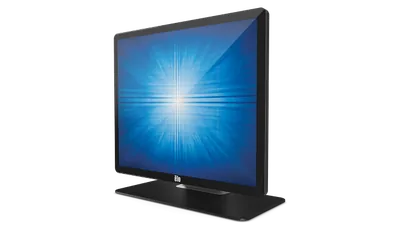

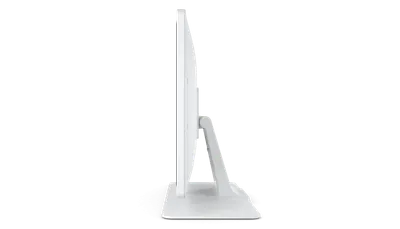

The ELO 1903LM is the 19" square aspect ratio touch monitor in ELO's 03 Series of medical grade touchscreens. With a compact form factor and clean design, the 1903LM is perfect for Point of Sale, Point of Information, Signage & Hospitality industries. Paired with it's IEC60601-1 4th Edition compliance and IP54 rating, the 1903LM is excellent for medical & healthcare environments.

Product Rating
Product Overview
The anti-glare touchscreens with Elo's industry-leading TouchPro PCAP technology offer wide viewing angles with excellent image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 03-Series Monitors provide a tablet-like experience.

The 03-Series Medical Grade Touchscreen Monitors offer flexibility for installation in a variety of healthcare environments - from exam rooms and lab clinics to patient check-in and pharmacy check out. Whether you need a touchscreen at a nurse's station to enable support or as a directory to help patients and visitors get around the healthcare facility, the line of 03-Series monitors can support increased communication among patients and healthcare providers.

Delivering a seamless experience from patient check-in to check-out is important, so monitor placement matters. The monitors can be mounted on a stand or any mount compatible with VESA configuration - allowing integrators to meet the IT monitor placement requirements demanded by healthcare providers.

The 03-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5-years. We design and build the complete solution, with touch integrated from the start.
Product Specifications
Part Number(s)TouchPro PCAP White (Worldwide) - E124149
TouchPro PCAP Black (Worldwide) - E123955
Enclosure ColorWhite or Black
Touch Technology & CapacityPCAP (TouchProProjected Capacitive) - 10 Touch
Diagonal Size19'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio5:4
Active Area (mm)374.78 mm x 299.83 mm
Resolution1280 x 1024 @ 60Hz
Other Supported Resolutions640 x 480 @ 60Hz720 x 400 @ 70Hz
640 x 400 @ 70Hz
800 x 500 @ 60Hz
800 x 600 @ 56, 60Hz
1024 x 768 @ 60Hz
1280 x 720 @ 58Hz, 60Hz
1280 x 800 @ 60 Hz
Number of Colors16.7 million
Brightness (typical)LCD Panel: 250 nits
TouchPro PCAP: 225 nits
Response Time-total (typical)14 msec
Contrast Ratio1000:1
Touch InterfaceUSB
Surface TreatmentAnti-glare
I/O PortsVGAHDMI
Combo Jack
DC jack
USB Type B
USB 2.0 Type A
4x Micro USB
SpeakersTwo 2W internal speakers
Input Video FormatVGA (VGA DE-15 (DB-15) Male connecter cable included)
HDMI (HDMI cable included)
Input Video FrequencyHorizontal: 30 €“ 82KHz
Vertical: 50 - 75Hz
Input ConnectorCoaxial power jack (2.1 mm pin outer diameter, 6.4mm barrel inner diameter)
Peripheral Mounting4x Micro USB side ports (Top, Bottom, Left, Right)
Monitor Dimensions (with Stand)397.7 mm x 429.6 mm x 193.4 mm
Weight (with stand)6.3 kg
Weight (without stand)4.3 kg
MTBF50,000 hours demonstrated

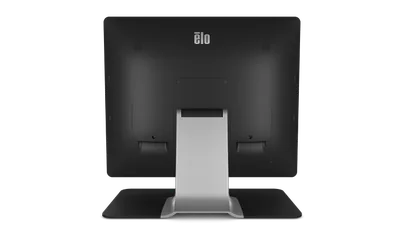

Mounting OptionsVESA 4-hole 100mm mounting interface on rear of unit
Warranty3-year
Ingress ProtectionIP54 entire enclosure
ModelDescriptionPriceStock
E124149 1903LM Touch Monitor. 19" Standard Aspect, PCAP 10-touch, USB Controller, Anti-glare, Zero-bezel, VHA/HDMI Video interface, White $2,234.38
Call
 Add to Cart
E123955 1903LM Touch Monitor. 19" Standard Aspect, PCAP 10-touch, USB Controller, Anti-glare, Zero-bezel, VHA/HDMI Video interface, Black $CALL
Call
ModelDescriptionPrices From
Cherry J84-2120 corded, washable, backlit keyboard with integrated pointing device for medical and industrial applications. $429.76 View Product
Cherry KC-1000 Cherry KC-1000 is a rock-solid keyboard with an excellent price-performance ratio. $24.17 View Product
Cherry MW-2900 Washable 3 Button Optical Mouse with scrolling buttons for Industrial & E-Health applications. $83.60 View Product
TG3 Electronics CMS-W-801 Fully sealed mouse with capacitive sensor as the acting scroll wheel. $77.07 View Product
Atdec Spacedec Direct Wall Mount The black Spacedec SD-WD Wall Mount from Atdec is a low-profile, robust mount created to cope with demanding commercial environments and a heavy workload, where quick installation and flexible screen positioning are required. $108.63 View Product
Ergonomic Solutions SpacePole VESA Bracket for 22 inch Screen Screen add-on bracket for VESA w/ MultiGrip for 22 inch Screen. $110.00 View Product
Ergonomic Solutions SpacePole 400mm Dual Screen Mount for Engage One Back-to-back screen mount solution, Engage One/VESA 400mm pole. $632.50 View Product
Ergonomic Solutions Spacepole Essentials Standard Mount SpacePole Essentials is a product range appropriate for technology partners and end users alike. $254.38 View Product
Ergonomic Solutions SpacePole Back to Back VESA Pole Mount Back to back enables two screens to be fitted to one SpacePole. $508.75 View Product
Ergonomic Solutions SpacePole Swing Arm Pole Mount 200mm Our popular Swing Arm provides an ergonomic solution where peripherals or the screen itself is needed to swing between the operator and customer. $316.25 View Product
Ergonomic Solutions Spacepole Essentials 200mm Swing Arm Mount SpacePole Essentials is a product range appropriate for technology partners and end users alike. $302.50 View Product
Ergonomic Solutions SpacePole Height Adjustable VESA Pole Mount The Height Adjustable Arm is an ergonomically designed mounting solution that reduces the possibility of Repetitive Strain Injury (RSI), whilst assisting productivity at the workstation. $783.75 View Product
Ergotron Monitor Handle Kit Single monitor handle kit $99.69 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document ELO 1903LM Brochure 632KB Download
