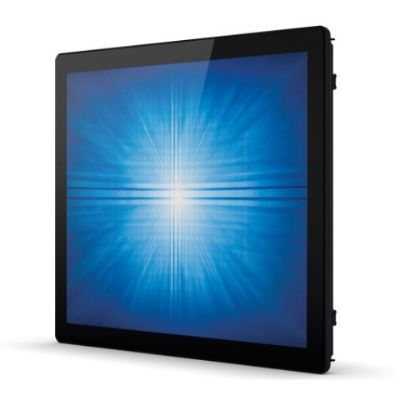

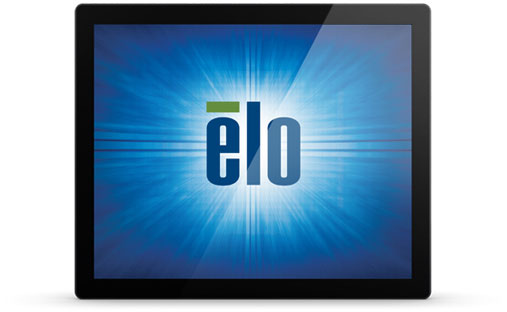

ELO 1991L Open-Frame

from $1,766.88 (incl. GST)

POSMarket SKU: Z5826

This model is available in 3 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

The ELO 1991L 19 open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the art energy-saving LED backlight using less electricity to operate and generating less heat. Featuring a brilliant wide viewing angle panel the 1991L instantly grabs and holds the users attention for kiosks casino and amusement retail self-service and industrial floor automation.

Product Rating
Product Overview
  • Choice of Elo touch technologies: Standard bezel: IntelliTouch SAW, SecureTouch anti-vandal SAW, and AccuTouch or Zero-bezel: Projected Capacitive.
  • Viewing angle of 178 degrees (h) x 178 degrees (v), for sharp colors and graphics in both portrait and landscape modes.
  • Touchscreen sealed against dirt, dust and liquids.
  • PCAP 2GS (two glass solution) offers pristine optical clarity and touch durability.
  • 10 touch projected capacitive (PCAP) with Thru-glass capabilities that passes UL-60950 & IK-07 Impact testing.
  • Display Port and VGA video interfaces.
  • 3 year warranty
Product Specifications
Model
BrandELO TOUCHSYSTEMS
ModelE328700
Cabinet ColorBlack
Display
Touchscreen Type IntelliTouch
Screen Size 19"
Recommended Resolution 1280 x 1024
Viewing Angle Horizontal: +/-89 degree or 178 degree total / Vertical: +/-89 degree or 178 degree total
Brightness 225 cd/m2
Contrast Ratio 1000:1
Response Time14ms
Connectivity
ConnectorsUSB
Power
Power SupplyExternal DC - Optional power brick (sold separately)
Power ConsumptionON: 17W, SLEEP: 1.5W, OFF: 0.5W
Convenience
Regulatory ApprovalsAustralia RCM; Canada cUL, IC; China CCC; Europe CE TUV; Japan VCCI; Korea KCC; Mexico CoC; Taiwan BSMI; United States UL, FCC; International CB; RoHS, China RoHS, WEEE, IMERC
VESA Compatibility - Mountable100 x 100mm
Dimensions
Dimensions (H x W x D)Bezel: 13.50" x 16.33" x 1.97"
Zero-Bezel: 13.70" x 16.54" x 1.60"
Weight10.14 lbs.
Temperature RangeOperating Temperature: 0 degree C to 40 degree C / 32 degree F to 104 degree F
Storage Temperature: -20 degree C to 60 degree C / -4 degree F to 140 degree F
Humidity RangeOperating: 20% to 80%, Storage: 10% to 95%
ModelDescriptionPriceStock
E331019 1991L 19" TouchPro PCAP 10 touch screen, HDMI/VGA/Display Port interface, USB touch controller, No power brick $1,815.00
Call
 Add to Cart
E328700 1991L 19" Intellitouch touch screen, HDMI/VGA/Display Port interface, USB & Serial touch controller, No power brick $1,787.50
Call
 Add to Cart
E326541 1991L 19" Accutouch touch screen, HDMI/VGA/Display Port interface, USB & Serial touch controller, No power brick $1,766.88
Call
 Add to Cart
ModelDescriptionPrices From
ELO Backpack The Elo Backpack android compute engine transforms touchscreen monitors and signage displays into commercial-grade systems capable of running audio and video content interactive HTML webpages and Android-based apps. $CALL
ELO BACKPACK WITH GOOGLE PLAY SERVICES 3.0 Elo Backpack with Google Play Services (3. $1,039.50 View Product
ELO ELO BACKPACK 4.0 The Elo Backpack is a powerful, commercial-grade Android 10 compute engine designed to simplify the deployment of content, websites and Android-based apps. $1,039.50 View Product
Atdec Spacedec AD-30100-WF Vesa Thin Wall Mount The AD-30100-WF securely supports displays weighing up to 30kg and sits just 14. $37.13 View Product
Atdec Spacedec Direct Wall Mount The black Spacedec SD-WD Wall Mount from Atdec is a low-profile, robust mount created to cope with demanding commercial environments and a heavy workload, where quick installation and flexible screen positioning are required. $108.63 View Product
Ergonomic Solutions SpacePole VESA Pole Mount The classic SpacePole Screen Mount is probably the most used foundation in mounting POS systems. $CALL
Ergonomic Solutions SpacePole Back to Back VESA Pole Mount Back to back enables two screens to be fitted to one SpacePole. $508.75 View Product
Ergonomic Solutions SpacePole Swing Arm Pole Mount 200mm Our popular Swing Arm provides an ergonomic solution where peripherals or the screen itself is needed to swing between the operator and customer. $316.25 View Product
ELO 24V DC Converter Kit The 24 VDC Converter Kit provides conversion from 24V to 12V, which allows kiosk manufacturers to leverage a common 24V power supply in their kiosk design and have a single AC connection. $111.38 View Product
Atdec SD-AT-DW-BK Full motion wall mount $377.85 View Product
Zebra GX420T 4" TT Zebra GX420t Prl+Serial+USB Thermal Transfer $917.13 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document 1991l data sheet 133KB Download
