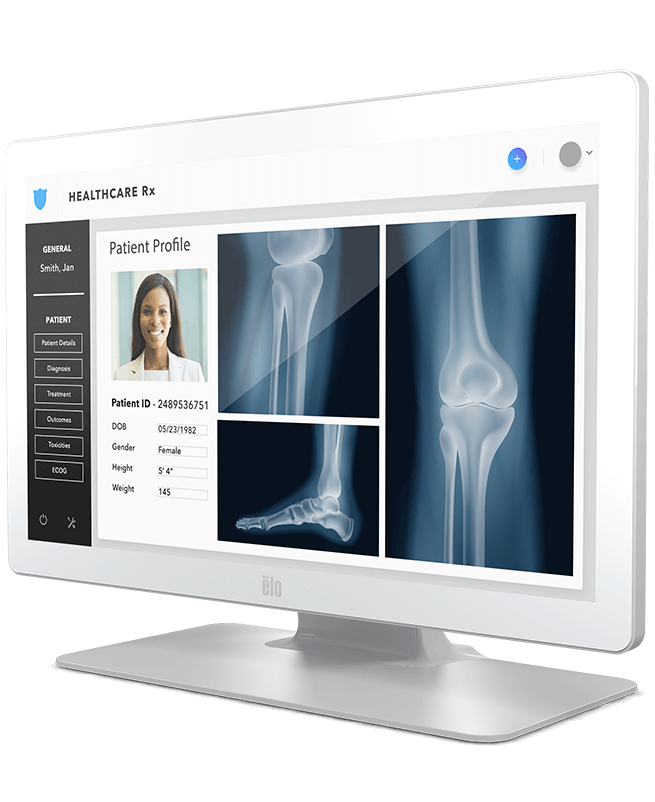

ELO 2203LM Medical Grade Touchscreen Monitors
POSMarket SKU: Z13898
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.
The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.
Product Overview
Product Specifications
| Part Number(s) | TouchPro PCAP White - E658992
TouchPro PCAP Black - E658788 |
| Enclosure Color | White |
| Touch Technology & Capacity | PCAP (TouchPro Projected Capacitive) - 10 Touch |
| Diagonal Size | 21.5'' diagonal, Active matrix TFT LCD (LED) |
| Aspect Ratio | 16:9 |
| Active Area (mm) | 18.74" x 10.54" / 476.06 mm x 267.79 mm |
| Resolution | 1920 x 1080 @ 50, 60Hz |
| Viewing Angle | Horizontal: +/-89deg or 178deg total / Vertical: +/-89deg or 178deg total |
| Number of Colors | 16.7 million |
| Brightness (typical) | LCD Panel: 250 nits
TouchPro PCAP: 225 nits |
| Touch Interface | USB, Serial (via VGA) |
| Speakers | Two x 2W internal speakers |
| I/O Ports | VGA (RS232 touch supported via E810917)
HDMI Combo Jack DC jack USB Type B USB 2.0 Type A 4x Micro USB |
| Input Video Format | VGA (VGA DE-15 (DB-15) Male connecter cable included)
HDMI (HDMI cable included) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| E658992 | 2203LM 22-inch wide LCD Medical Grade Touch Monitor, Full HD, Projected Capacitive 10-touch, DICOM 14, USB and Serial Touch Interface, Anti-glare, Zero-bezel, VGA and HDMI Video Interface, White | $2,145.00 | Add to Cart | |
| E658788 | 203LM 22-inch wide LCD Medical Grade Touch Monitor, Full HD, Projected Capacitive 10-touch, DICOM 14, USB and Serial Touch Interface, Anti-glare, Zero-bezel, Stand, VGA and HDMI Video Interface, Black | $2,110.63 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Cherry J84-2120 | corded, washable, backlit keyboard with integrated pointing device for medical and industrial applications. | $429.76 | View Product |
| Cherry KC-1000 | Cherry KC-1000 is a rock-solid keyboard with an excellent price-performance ratio. | $32.59 | View Product |
| Cherry MW-2900 | Washable 3 Button Optical Mouse with scrolling buttons for Industrial & E-Health applications. | $83.60 | View Product |
| TG3 Electronics CMS-W-801 | Fully sealed mouse with capacitive sensor as the acting scroll wheel. | $77.07 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
Elo 2203LM DICOM DS | 170KB | Download |
