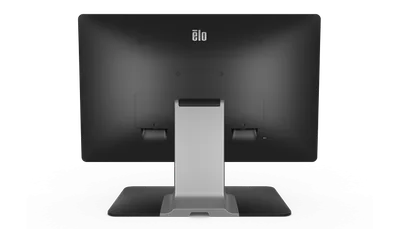

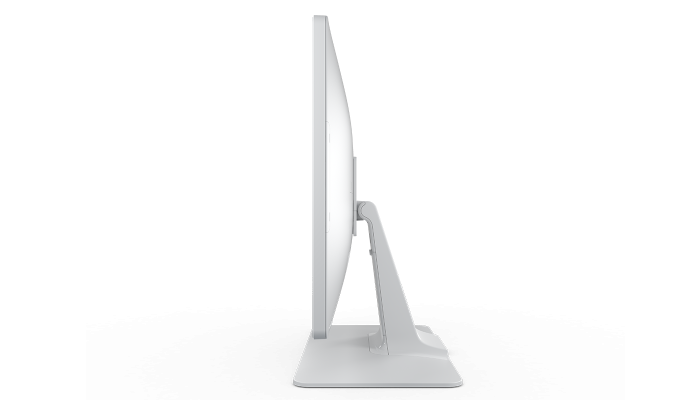

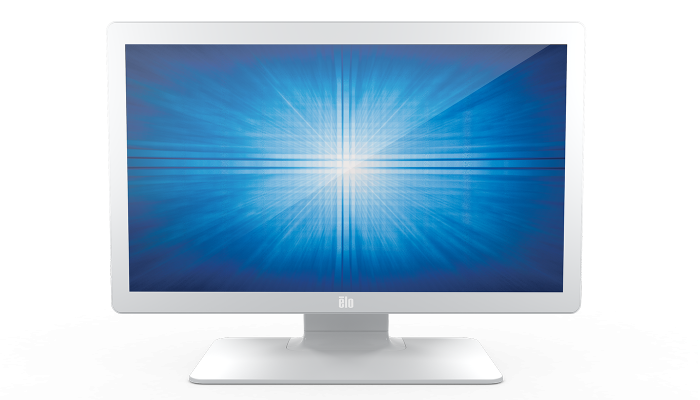

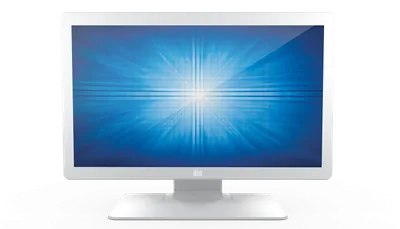

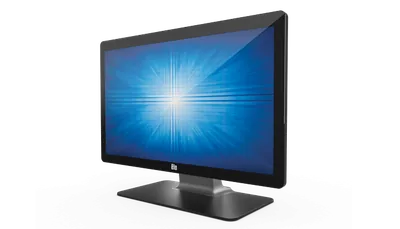

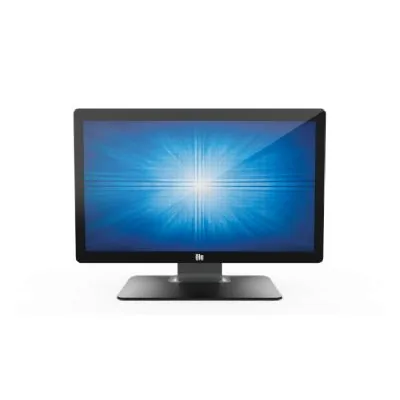

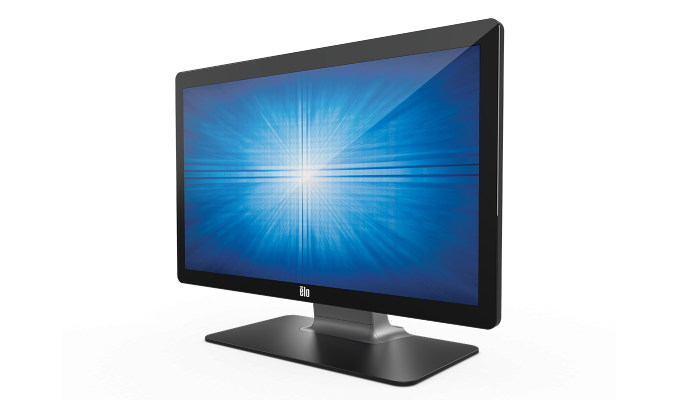

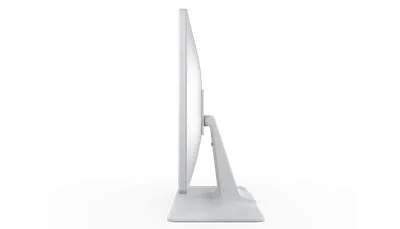

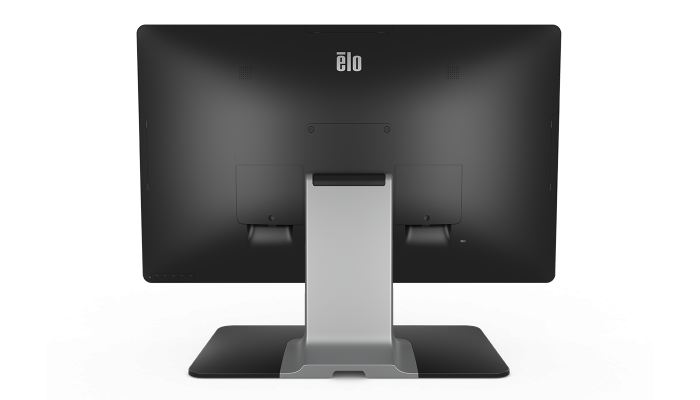

ELO 2403LM

$CALL

POSMarket SKU: Z8717

E350629: 2403LM 24" Widescreen Touchscreen. PCAP 10-touch, Full HD, USB controller, Zero Bezel, VGA & HDMI video interface, Black

The ELO 03 Series of Touchscreen Monitors is designed for healthcare applications. With a compact form factor and clean design for easy integration, this 24" widescreen touch monitor is well suited for healthcare installations, as well as point of sale, ooint of information, signage, & hospitality. As it's made for healthcare, it complies with IEC60601-1 4th edition requirements and is IP54 certified.

Product Rating
Product Overview
The 03-Series Medical Grade Touchscreen Monitors offer flexibility for installation in a variety of healthcare environments - from exam rooms and lab clinics to patient check-in and pharmacy check out. Whether you need a touchscreen at a nurse's station to enable support or as a directory to help patients and visitors get around the healthcare facility, the line of 03-Series monitors can support increased communication among patients and healthcare providers.
  • Integrated Touch, ELO's industry leading PCAP touchscreen technology with a 10-touch tablet like experience
  • IP54 Rating, sealed against dirt, dust and liquids
  • Includes a special power supply that is IEC 60601 compliant
  • Built to Last, backed by ELO's 3 year warranty
Product Specifications
Enclosure ColorWhite or Black
Touch Technology and Capacity PCAP (TouchPro Projected Capacitive) - 10 Touch
Diagonal Size23.8'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio16:9
Active Area (mm)20.75'' x 11.67'' / 527.04 mm x 296.46 mm
Resolution1920 x 1080 @ 50, 60Hz
Number of Colours16.7 million
Brightness (typical)LCD Panel: 250 nits
TouchPro PCAP: 240 nits
Response Time-total (typical)15 msec
Contrast Ratio1000:1
Touch InterfaceUSB
Surface TreatmentAnti-glare
I/O PortsVGA
HDMI
Combo Jack
DC jack
USB Type B
USB 2.0 Type A
4x Micro USB
SpeakersTwo x 2W internal speakers
Input Video FormatVGA (VGA DB-15 Male connecter cable included)
HDMI (HDMI cable included)
Input Video FrequencyHorizontal: 30 €“ 82KHz
Vertical: 50 - 75Hz
Power Consumption (Typical)Monitor + AC/DC adapter
ON: 25.5W
SLEEP: 0.33W
OFF: 0.27W
Input Voltage12VDC +/- 5%
100-240VAC, 50/60Hz
Input ConnectorCoaxial power jack (2.1 mm pin outer diameter, 6.4mm barrel inner diameter)
Peripheral Mounting4x Micro USB side ports (Top, Bottom, Left, Right)
Monitor Dimensions (with Stand)432.9 mm x 574.6 mm x 233 mm
Weight (with stand) 8.7 kg
Weight (without stand)5.42 kg
SealabilityTouchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF50,000 hours demonstrated
Mounting OptionsVESA 4-hole 100mm mounting interface on rear of unit
Warranty3-year
ModelDescriptionPriceStock
E350629 2403LM 24" Widescreen Touchscreen. PCAP 10-touch, Full HD, USB controller, Zero Bezel, VGA & HDMI video interface, Black $CALL
Call
ModelDescriptionPrices From
Cherry J84-2120 corded, washable, backlit keyboard with integrated pointing device for medical and industrial applications. $429.76 View Product
Cherry MW-2900 Washable 3 Button Optical Mouse with scrolling buttons for Industrial & E-Health applications. $83.60 View Product
Datalogic Powerscan PBT9501 Industrial Area Imager Barcode Scanner $1,170.13 View Product
Atdec Spacedec Direct Wall Mount The black Spacedec SD-WD Wall Mount from Atdec is a low-profile, robust mount created to cope with demanding commercial environments and a heavy workload, where quick installation and flexible screen positioning are required. $108.63 View Product
Ergonomic Solutions SpacePole 400mm Dual Screen Mount for Engage One Back-to-back screen mount solution, Engage One/VESA 400mm pole. $632.50 View Product
Ergonomic Solutions Spacepole Essentials Standard Mount SpacePole Essentials is a product range appropriate for technology partners and end users alike. $254.38 View Product
Ergonomic Solutions Spacepole Essentials 200mm Swing Arm Mount SpacePole Essentials is a product range appropriate for technology partners and end users alike. $302.50 View Product
Ergonomic Solutions SpacePole Height Adjustable VESA Pole Mount The Height Adjustable Arm is an ergonomically designed mounting solution that reduces the possibility of Repetitive Strain Injury (RSI), whilst assisting productivity at the workstation. $783.75 View Product
Cherry JK-A0400 Secure Board 1.0 w/ Smart Card Reader Intelligent security keyboard with integrated reader for smart cards and cards/tags with RF/NFC interface. $194.63 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document ELO Touch 2403LM User Manual 934KB Download
PDF Document ELO 2403LM Brochure 667KB Download
