ELO 2494L Open Frame

from $1,753.13 (incl. GST)

POSMarket SKU: Z5832

This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

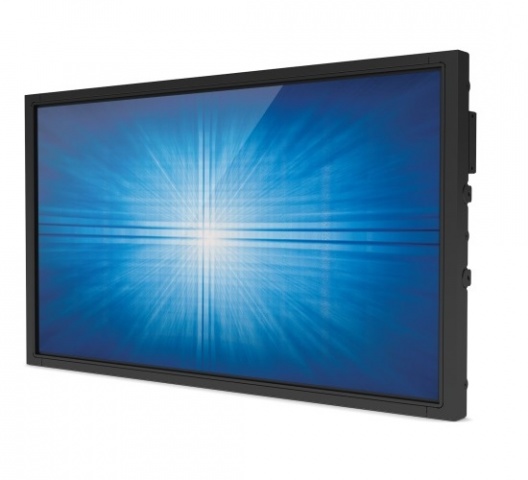

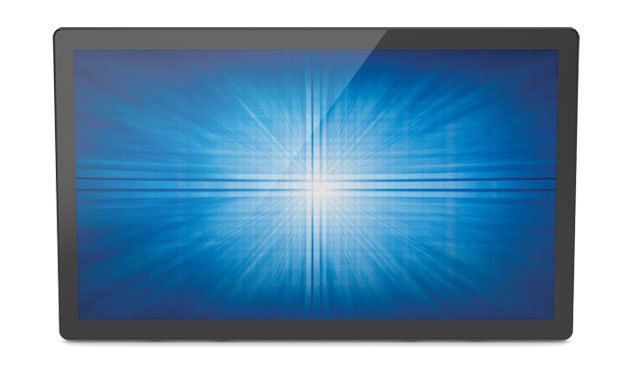

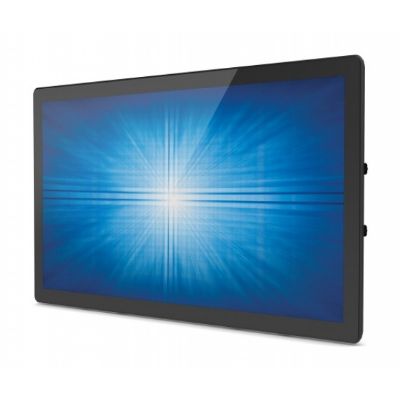

The ELO 2494L is a 23.8" Open frame touch display with a thin & compact design, energy saving and low heat LED panels, and a choice of Intellitouch (SAW) or TouchPro (PCAP) touch screens. The 2494L offers the versatility required for commercial kiosk applications from industrial automation to Self-Service, Gaming, and Retail.

Product Rating
Product Overview
Featuring a brilliant wide viewing angle panel, ELO's open frames can be mounted in landscape, portrait, and face-up orientations providing optimal flexibility for integrating in any table, kiosk, or cabinet design. With proven Elo expertise and reliability built in, the industrial-grade displays provide outstanding image clarity and light transmissivity as well as stable, drift-free operation for accurate touch responses.

  • Choice of touch technology: Standard bezel: IntelliTouch SAW or IntelliTouch Dual-Touch SAW. Zero-bezel: TouchPro PCAP or IntelliTouch SAW
  • ELO's TouchPro PCAP offers 10-touch capability that passes UL-60950, IK-07 impact testing and GLI ESD 27kV air / 8kV contact
  • OSD enabled touch thru with up to 6mm of additional coverglass for increased durability & protection
  • Video Interfaces: HDMI, VGA & Display Port
  • 3 Year warranty
Product Specifications
Color Black
Active Display Area 527.04mm x 296.46mm
Diagonal 23.8"
Aspect Ratio 16:9
DimensionsBezel: 562.4mm x 326.6mm x 41.7mm
IntelliTouch ZB: 570.1mm x 342mm x 37.1mm
PCAP: 569.2mm x 341.1mm x 37mm
Native Resolution 1920x1080 50, 60Hz
Number of Colors 16.7 million
Number of Touches Single-touch, dual-touch and 10-touch
Brightness (typical) LCD panel: 250 nits
IntelliTouch: 225 nits
TouchPro PCAP: 225 nits
Response (typical) 16 msec
Contrast Ratio 3000:1
I/O Ports Serial port (Only available for IntelliTouch and IntelliTouch ZB)
USB TypeB
RJ45 for OSD remote key
VGA
HDMI
DisplayPort
12V D/C in
VideoHDMI V1.3 Type A receptacle for HDMI input
Analog VGA on Female DB-15 connector
DisplayPort V1.1a - Supports later versions of DisplayPort video input
Input Video Horizontal Sync frequency range: 30 82KHz / Input Video Vertical Sync (frame rate) frequency range: 50-75Hz
Warranty 3 years standard
ModelDescriptionPriceStock
E146641 2494L Open Frame Touch Monitor. 23.8" FHD LCD Screen, PCAP 10 Touch Zero Bezel, HDMI/VGA/Display Port, USB touch controller. No Power supply $1,925.00
Call
 Add to Cart
E330019 2494L Open Frame Touch Monitor. 23.8" FHD LCD Screen, Intellitouch, HDMI/VGA/Display Port, USB & Serial touch controller. No Power supply $1,753.13
Call
 Add to Cart
ModelDescriptionPrices From
ELO Backpack The Elo Backpack android compute engine transforms touchscreen monitors and signage displays into commercial-grade systems capable of running audio and video content interactive HTML webpages and Android-based apps. $CALL
ELO BACKPACK WITH GOOGLE PLAY SERVICES 3.0 Elo Backpack with Google Play Services (3. $1,039.50 View Product
ELO ELO BACKPACK 4.0 The Elo Backpack is a powerful, commercial-grade Android 10 compute engine designed to simplify the deployment of content, websites and Android-based apps. $1,039.50 View Product
ELO Stylus PCAP Pen PCAP Stylus Pen $33.00 View Product
Atdec Spacedec Direct Wall Mount The black Spacedec SD-WD Wall Mount from Atdec is a low-profile, robust mount created to cope with demanding commercial environments and a heavy workload, where quick installation and flexible screen positioning are required. $108.63 View Product
Ergonomic Solutions SpacePole VESA Bracket for 22 inch Screen Screen add-on bracket for VESA w/ MultiGrip for 22 inch Screen. $110.00 View Product
ELO 24V DC Converter Kit The 24 VDC Converter Kit provides conversion from 24V to 12V, which allows kiosk manufacturers to leverage a common 24V power supply in their kiosk design and have a single AC connection. $111.38 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document ELO 2494L Brochure 153KB Download
