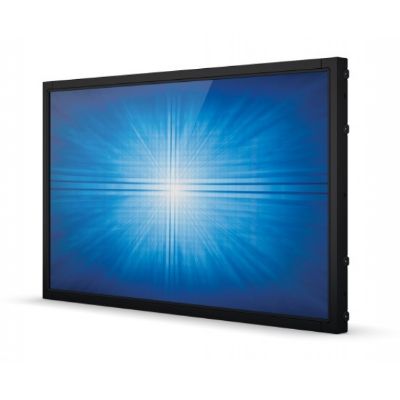

ELO 2794L Open-Frame

from $2,234.38 (incl. GST)

POSMarket SKU: Z5828

This model is available in 3 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

The ELO 2794L 27 open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the art energy-saving LED backlight using less electricity to operate and generating less heat. Featuring a brilliant wide viewing angle panel the 2794L instantly grabs and holds the users attention for kiosks casino and amusement retail self-service and industrial floor automation.

Product Rating
Product Overview
The Elo 2794L 27-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare

Features
  • Choice of Elo touch technologies: Standard bezel: IntelliTouch SAW and IntelliTouch Plus SAW or Zero-bezel: Projected Capacitive and iTouch.
  • Viewing angle of 178 degrees (h) x 178 degrees (v), for sharp colors and graphics in both portrait and landscape modes.
  • High definition LCD display offers ultimate HD interactivity, clarity and resolution.
  • PCAP 2GS (two glass solution) offers pristine optical clarity and touch durability.
  • 10 touch projected capacitive (PCAP) with Thru-glass capabilities that passes UL-60950 & IK-07 Impact testing.
  • Intellitouch SAW models come standard with chemically strengthened glass and pass UL-60950 & IK-07 impact testing.
  • Display Port and VGA video interfaces.
  • 3 year standard warranty
Product Specifications
Part Number(s):IntelliTouch - E329262
IntelliTouch Dual Touch - E329077
TouchPro PCAP - E493591
Enclosure Color:Black
Touch Technology and Capacity:SAW (IntelliTouch Surface Acoustic Wave) - Single Touch
SAW (IntelliTouch Surface Acoustic Wave) - Dual Touch,PCAP (TouchPro Projected Capacitive) - 10 Touch
Touch Interface:TouchPro PCAP
IntelliTouch DT - USB 2.0
IntelliTouch - Dual serial/USB 2.0
Diagonal Size:27" diagonal
Active matrix TFT LCD (LED)
On Screen Display:Accessible through switches on the unit€™s tethered OSD Control box.
Controls: Menu, Up, Down, Select, Power
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Thru (Only available for TouchPro PCAP)
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power
Aspect Ratio:16:9
Active Area (mm):23.53" x 13.23" / 597.6 mm x 336.15 mm
Resolution:1920 x 1080
Other Supported Resolutions:640 x 480 60Hz,720 x 400 70Hz
800 x 500, 60Hz,800 x 600 56, 60Hz
1024 x 768 60Hz
1280 x 800 60Hz
1280 x 1024 60Hz
1366 x 768 60Hz
60Hz RB
1440 x 900 60Hz
60Hz RB
1680 x 1050 60Hz
60Hz RB
1920 x 1080 50
60Hz
Viewing AngleHorizontal: +/- 89 Degrees or 178 Degrees total / Vertical: +/- 89 Degrees or 178 Degrees total
Number of Colors: 16.7 million
Brightness (typical)
LCD panel:300 nits
IntelliTouch:270 nits
IntelliTouch Dual-Touch:270 nits
TouchPro PCAP:270 nits
Response Time-total (typical):12 msec
Contrast Ratio:3000:1
I/O Ports:Serial port (IntelliTouch only)
USB TypeB
RJ45 for OSD remote key
VGA
HDMI
DisplayPort
12V D/C in
Input Video Format:HDMI V1.3 Type A receptacle for HDMI input,Analog VGA on Female DB-15 connector,DisplayPort V1.1a - Supports later versions of,DisplayPort video input
Input Video Frequency:Horizontal: 30 - 82 KHz
Vertical: 50 - 75 Hz
Video Interface,HDMI
VGA & Display Port
Power Supply:External DC - Optional power brick (sold separately)
Input power connector (Monitor):Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth)
Input Voltage:12VDC +/- 5%
Adapter Output Power Connector:DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length)
Power Consumption (Typical)
ON (Default - 75% Brightness):21 W
ON (Typical - 100% Brightness):27 W
SLEEP FROM PC (monitor + adapter):1.5 W
OFF (monitor + adapter):0.5 W
Dimensions
Bezel:24.93" x 14.74"x 1.65" / 633.2 mm x 374.4 mm x 41.8 mm
Zero-Bezel:25.36" x 15.29"x 1.6" / 644.2 mm x 388.4 mm x 40.6 mm
Shipping Box Dimensions:30.79" x 20.87" x 7.87" / 782 mm x 530 mm x 200 mm
Weight (Unpackaged):16.09 lbs / 7.3 Kg
Weight (Packaged):22.49 lbs / 10.2 Kg
Operating Temperature:0 C to 40 C / 32 F to 104 F
Storage Temperature:-20 C to 60 C / -4 F to 140 F
Humidity
Operating:20% to 80%
Storage:10% to 95%
Sealability
Touchscreensealed to bezel
Touchscreensealed to LCD
MTBF: 50,000 hours demonstrated
Warranty:3-year
Extended Warranty Options:4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125
Regulatory approvals and declarations:Australia RCM; Canada cUL, IC; China CCC; Europe CE TUV; United Kingdom UKCA; Japan VCCI; Korea KCC; Mexico CoC; Taiwan BSMI; United States UL, FCC; International CB; RoHS, China RoHS, WEEE
Compliance:GLI 27 kV air / 8 kV contact ESD compliant (TouchPro PCAP only),UL 62368 ball-drop compliant (TouchPro PCAP only),IK08 impact compliant (TouchPro PCAP only)
Mounting Options:200x100mm VESA mount on rear of unit,4 Hole mounting interface on all four sides.,Front mount with optional bezel kit,IntelliTouch/IntelliTouch DT Models see Part Numbers for details - Not for use with TouchPro PCAP Models),Flush mount with included brackets (TouchPro PCAP Models see Part Numbers for details)
What's in the Box:HDMI cable,VGA Cable,RJ45 OSD Remote,Touch USB Cable,Quick Install Guide,For Zero-Bezel Models: Flush Mount Brackets w/Screws,For Bezeled - IntelliTouch/IntelliTouch,DT Models: (Side Mount) Brackets and w/Screws,EEI Label,Japan Class-B TM info sheet
ModelDescriptionPriceStock
E329077 2794L 27" Intellitouch Plus Dual touch screen, Open Frame, HDMI/VGA/Display Port interface, USB Touch controller, No power brick $2,282.50
Call
 Add to Cart
E329262 2794L 27" Intellitouch touch screen, Open Frame, HDMI/VGA/Display Port interface, USB & Serial Touch controller, No power brick $2,234.38
Call
 Add to Cart
E331401 2794L 27" TouchPro PCAP 10 Touch, Open Frame, HDMI/VGA/Display Port interface, USB Touch controller, No power brick $CALL
Call
ModelDescriptionPrices From
ELO Backpack The Elo Backpack android compute engine transforms touchscreen monitors and signage displays into commercial-grade systems capable of running audio and video content interactive HTML webpages and Android-based apps. $CALL
ELO BACKPACK WITH GOOGLE PLAY SERVICES 3.0 Elo Backpack with Google Play Services (3. $1,039.50 View Product
ELO ELO BACKPACK 4.0 The Elo Backpack is a powerful, commercial-grade Android 10 compute engine designed to simplify the deployment of content, websites and Android-based apps. $1,039.50 View Product
Atdec Spacedec AD-30100-WF Vesa Thin Wall Mount The AD-30100-WF securely supports displays weighing up to 30kg and sits just 14. $37.13 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document 2794l 198KB Download
Product Videos
No videos found for this product.

Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.
