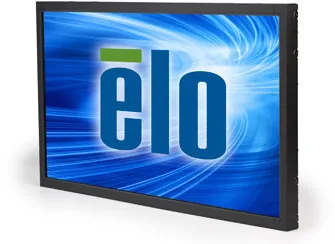

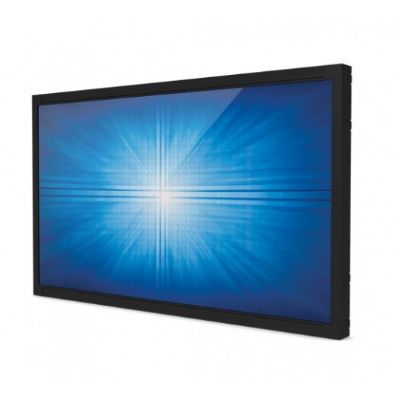

ELO 3243L Open-frame
from $3,430.63 (incl. GST)
POSMarket SKU: Z5810
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.
The ELO 3243L 32" Full HD Open-frame touchscreen utilizes ELO's proven expertise & reliability to deliver a professional grade large format touchscreen at less than 58mm total thickness. This touchscreen is perfect for small kiosk designs in Retail, Hotels, Gaming, Transport & other commercial uses
Product Overview
The ELO Touch Solutions 3243L 32-inch full HD open-frame touchmonitor is available with a choice of two multi-touch touchscreen technologies, Zero-bezel Projected Capacitive (PCAP) or IntelliTouch dual-touch surface acoustic wave. The PCAP touchscreen offers a fast and extremely sensitive response similar to the experience on mobile devices and is compatible with Windows 7, Windows 8 and Windows 10 operating systems with up to 10 touches recognized simultaneously.
IntelliTouch dual-touch surface acoustic wave offers undistorted display clarity due to use of clear glass. State-of-the-art HD display technology is utilized including a high contrast/brightness LED-backlit LCD panel, extended color gamut with movie/ gaming / photo modes, black level adjustment, and onscreen menu enhancements. The 3243L touchmonitor is less than 2.3" (58mm) in total thickness. It also incorporates an LED-based LCD panel that reduces power consumption and heat enabling thinner and smaller kiosk designs for various applications in retail, hotels, gaming, transportation and other commercial uses. The touchscreen glass is tested with robust "ball-drop" requirements supporting applications in demanding public access environments.
IntelliTouch dual-touch surface acoustic wave offers undistorted display clarity due to use of clear glass. State-of-the-art HD display technology is utilized including a high contrast/brightness LED-backlit LCD panel, extended color gamut with movie/ gaming / photo modes, black level adjustment, and onscreen menu enhancements. The 3243L touchmonitor is less than 2.3" (58mm) in total thickness. It also incorporates an LED-based LCD panel that reduces power consumption and heat enabling thinner and smaller kiosk designs for various applications in retail, hotels, gaming, transportation and other commercial uses. The touchscreen glass is tested with robust "ball-drop" requirements supporting applications in demanding public access environments.
Product Specifications
| Color | Black |
| Active Display Area | IntelliTouch Dual-Touch: 700.4 x 394.85 mm Projected Capacitive: 700.4 x 394.9 mm |
| Dimensions | IntelliTouch Dual-Touch:736.4 x 443 x 57.2 mm Projected Capacitive: 747.3 x 452.7 x 55 mm |
| LCD Technology | Active matrix TFT LCD |
| Diagonal Size | 31.5" |
| Mounting Options | 400mm x 200mm VESA 4-hole mounting interface on rear of unit Side mounting brackets included with unit |
| Aspect Ratio | 16:9 |
| Native Resolution | 1920 x 1080 |
| Preset Video Timings | 640x480 60Hz 800x500 60Hz 800x600 60Hz 1024x768 60Hz 1280x720 60Hz 1280x960 60Hz 1280x1024 60Hz 1360x768 60Hz 1366x768 60Hz 1440x900 60Hz 1600x1200 60Hz 1680x1050 60Hz 1920x1080 60Hz |
| Number of Colors | 16.7 million |
| Brightness (typical) | LCD Panel: 500 nits with IntelliTouch Dual-Touch: 450 nits with Projected Capacitive (PCAP): 425 nits |
| Response Time (Tr + Tf) (typical) | 8 ms |
| Contrast Ratio (typical) | 3000:1 |
| Video | Analog VGA on Female DE-15 connector HDCP-capable HDMI 1.3 on HDMI Type A receptacle connector (ET3243L-XXWA models only) Digital DVI on Female DVI-D, Dual-Link connector (ET3243L-XXAA models only) Input Video Horizontal Sync frequency range: 31.5-80KHz Input Video Vertical Sync (frame rate) frequency range: 47-63Hz |
| Weight | IntelliTouch Dual-Touch Model: 12.1 kg Projected Capacitive Model: 11.2kg |
| Warranty | 3 year standard |
| MTBF | 50,000 hours demonstrated |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| E304029 | 3243L 32" PCAP 10-touch Full HD touch screen, Zero-Bezel, VGA/HDMI video interface, USB touch controller, Gray | $3,850.00 | Add to Cart | |
| E326202 | 3243L 32" Intellitouch Plus HD touch screen, VGA/HDMI video interface, USB touch controller, Gray | $3,430.63 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| ELO Backpack | The Elo Backpack android compute engine transforms touchscreen monitors and signage displays into commercial-grade systems capable of running audio and video content interactive HTML webpages and Android-based apps. | $CALL | |
| ELO BACKPACK WITH GOOGLE PLAY SERVICES 3.0 | Elo Backpack with Google Play Services (3. | $1,039.50 | View Product |
| ELO ELO BACKPACK 4.0 | The Elo Backpack is a powerful, commercial-grade Android 10 compute engine designed to simplify the deployment of content, websites and Android-based apps. | $1,039.50 | View Product |
| Atdec Spacedec AD-30100-WF Vesa Thin Wall Mount | The AD-30100-WF securely supports displays weighing up to 30kg and sits just 14. | $38.50 | View Product |
| Atdec Spacedec Direct Wall Mount | The black Spacedec SD-WD Wall Mount from Atdec is a low-profile, robust mount created to cope with demanding commercial environments and a heavy workload, where quick installation and flexible screen positioning are required. | $115.50 | View Product |
| Ergonomic Solutions SpacePole VESA Bracket for 15 inch Screen | Screen add-on bracket for VESA w/ MultiGrip for 15 inch screen. | $99.69 | View Product |
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
| Filename | Size | ||
|---|---|---|---|
 |
ELO 3243L Open-Frame Brochure | 531KB | Download |
