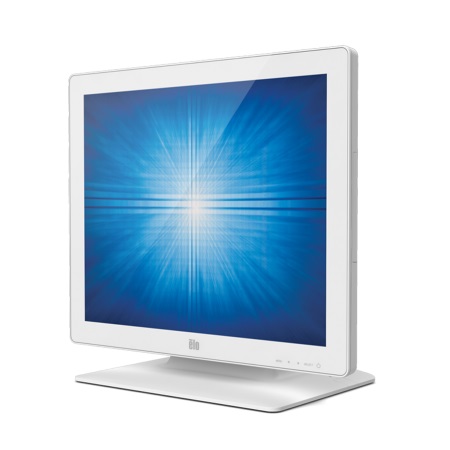

ELO D Top 1523L 15 Inches VGA DVI USB PCAP White

$1,567.50 (incl. GST)

POSMarket SKU: Z11332

E336518: 1523L 15-inch LCD (LED backlight) Desktop, WW, Projected Capacitive 10-touch, Zero-bezel, USB Controller, Anti-glare, Bezel, VGA & DVI video interface, White

ELO 1523L 15-inch LCD (LED backlight) Desktop, WW, Projected Capacitive 10-touch, Zero-bezel, USB Controller, Anti-glare, Bezel, VGA & DVI video interface, White

Product Rating
Product Overview
The Elo 1523L 15-inch standard format touchscreen monitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions. The sleek, edge-to-edge glass design of the 1523L brings a clean, modern feel to any environment. The zero-bezel touchmonitor is available in both black or white with Elo's industry-leading touch technologies, both providing a stable drift-free operation with outstanding image clarity, resolution and light transmission - for an accurate touch response and vivid images.
Product Specifications
General
Display15.0" diagonal
Aspect Ratio4:3
LCD TechnologyActive matrix TFT LCD with LED backlighting
Active Display AreaIntelliTouch ZB : 11.97 x 9.98 inches / 304.13 x 228.1 mm
IntelliTouch Pro PCAP : 12 x 9.01 inches / 305.1 x 229.1 mm
Native (Optimal) Resolution1024 x 768 at 60 Hz
Other Supported Resolutions1024 x 768 at 60, 65, 70 or 75 Hz
800 x 600 at 56, 60,75 Hz
720 x 400 at 70 Hz
640 x 480 at 60,75 Hz
Colors16.2 million
Brightness (Typical)LCD panel: 250 nits
IntelliTouch Zero-Bezel: 225 nits
IntelliTouch Pro PCAP: 215 nits
Response Time - (Typical)25 ms
Viewing Angle (Typical)Horizontal: 160/deg total
Vertical: 140/deg total
Contrast Ratio (Typical)700:1
On-Screen Display (OSD)Controls (side): Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power
WeightActual with stand and touchscreen: : 9.8 lbs (4.44 kg)
Actual without stand, with touchscreen:: 5.86 lbs (2.65 kg)
Shipping with stand and touchscreen: : 15.43 lb (7.0 kg)
Environmental
TemperatureOperating: 0 C to 40 C (32 F to 104 F)
Storage: -20 C to 60 C (-4 F to 140 F)
Humidity (noncondensing)Operating: 20-80%
Storage: 10-95%
Other
Form FactorDesktop
Enclosure ColorBlack, white
MTBF50,000 hours demonstrated
OptionsTwo external USB ports
Stand OptionsTilt, remove
Mounting Options75mm VESA mount
SealingTouchscreen sealed to bezel
Touchscreen sealed to LED
Other Features2 stage DPMS
VESA DDC Plug and Play
Security lock receptacle
Internal speakers
Agency ApprovalsUL/cUL (recognized component), FCC-A, Semko, CE, VCCI, C-Tick
Warranty 3 years
ModelDescriptionPriceStock
E336518 1523L 15-inch LCD (LED backlight) Desktop, WW, Projected Capacitive 10-touch, Zero-bezel, USB Controller, Anti-glare, Bezel, VGA & DVI video interface, White $1,567.50
Call
 Add to Cart
ModelDescriptionPrices From
ELO SERVICE EXT WARRANTY TOUCH MONITOR 5YR Touch Monitor 5 Year Warranty Coverage. $144.38 View Product
ELO PSU Power Supply External 50W Power Brick and Cable LVL 6 Australia Suitable for - 1902L, 2202L, 2402L, 2702L, 1523L, 1723L $74.25 View Product
ELO PSU 12V 50W F 1093for External Power Brick and Cable LVL 5 EMEA and KR $78.38 View Product
ELO Stylus PCAP Pen PCAP Stylus Pen $33.00 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document ELO 1523L Spec Sheet 401KB Download
