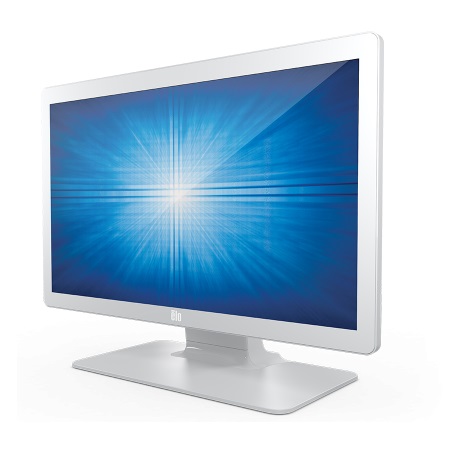

ELO Desktop 2403LM 24 PCAP VGA HDMI USB White
$CALL
POSMarket SKU: Z11366
E124923: 2403LM 24-inch Wide LCD Medical Grade Touch Monitor, Full HD, Projected Capacitive 10-touch, USB Controller, Anti-Glare, Zero-bezel, VGA and HDMI video interface, White, Worldwide
2403LM 24-inch Wide LCD Medical Grade Touch Monitor, Full HD, Projected Capacitive 10-touch, USB Controller, Anti-Glare, Zero-bezel, VGA and HDMI video interface, White, Worldwide
Product Overview
The Elo 03-Series of Touchscreen Monitors designed for the Healthcare applications includes four sizes - a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration the 03-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. Additionally, the 03-Series complies with IEC60601-1 4th edition requirements and is IP54 certified to support healthcare installations.
Product Specifications
| Input | |
| Type | Touchscreen - touchscreen |
| Movement Detection Technology | Projected capacitive |
| Miscellaneous | |
| Cables Included | 1 x VGA cable ¦ 1 x HDMI cable ¦ 1 x USB cable ¦ 1 x audio cable |
| MTBF | 50,000 hours |
| Compliant Standards | UL, VCCI, BSMI, cUL, CB, CCC, IC, FCC, KCC, IP54, IEC 60601-1, ISO 14971, EAC, RCM, ANSI/AAMI ES60601-1, CoC, CAN/CSA C22.2 No. 60601-1:14, IEC 60601-1:2005 + A1:2012 |
| Localization | Worldwide |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Mechanical | |
| VESA Mounting Interface | 100 x 100 mm |
| Environmental Parameters | |
| Min Operating Temperature | 32 F |
| Max Operating Temperature | 104 F |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| General | |
| Display Type | LCD monitor / TFT active matrix |
| Diagonal Size | 24" |
| Viewable Size | 23.8" |
| Built-in Devices | USB hub |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD (1080p) 1920 x 1080 at 60 Hz |
| Brightness | 250 cd/m² |
| Brightness w/touchscreen | 240 cd/m² |
| Contrast Ratio | 1000:1 |
| Color Support | 16.7 million colors |
| Response Time | 15 ms (tr - tf) |
| Vertical Refresh Rate | 50 - 75 Hz |
| Horizontal Refresh Rate | 30 - 82 kHz |
| Horizontal Viewing Angle | +89 / -89 |
| Vertical Viewing Angle | +89 / -89 |
| OSD Languages | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Russian, Spanish, Japanese, Korean |
| Features | TouchPro technology |
| Color | White |
| Dimensions (WxDxH) | 22.6 in x 9.2 in x 17 in - with stand |
| Weight | 19.18 lbs |
| Connectivity | |
| Interfaces | HDMI ¦ VGA ¦ Audio line-out (mini-jack) ¦ USB (Type B) ¦ USB 2.0 (Type A) ¦ 4 x Micro-USB |
| Audio | |
| Type | Speakers - stereo |
| Output Power / Channel | 2 Watt |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 26.8 in |
| Shipping Depth | 12.5 in |
| Shipping Height | 20.7 in |
| Shipping Weight | 26.46 lbs |
| Power | |
| Shipping Width | 26.8 in |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption (Typical) | 25.5 Watt |
| Power Consumption Operational | 25.5 Watt |
| Power Consumption Sleep | 0.33 Watt |
| Warranty | 36 Months |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| E124923 | 2403LM 24-inch Wide LCD Medical Grade Touch Monitor, Full HD, Projected Capacitive 10-touch, USB Controller, Anti-Glare, Zero-bezel, VGA and HDMI video interface, White, Worldwide | $CALL |
| Model | Description | Prices From | |
|---|---|---|---|
| Cherry MW-2310 | The CHERRY MW 2310 is multi-purpose wireless mouse in an ergonomic design. | $33.32 | View Product |
| ELO Cable Kit Mini-VGA to VGA USB HDMI Audio | 3m Cable Kit - M Series Monitors (1002L/1502L) Includes: Mini-VGA to VGA, USB, HDMI, and audio | $127.88 | View Product |
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
| Filename | Size | ||
|---|---|---|---|
 |
Elo 2403LM Datasheet | 284KB | Download |
