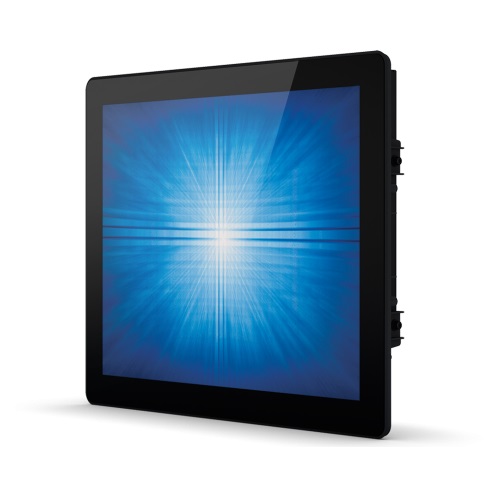

ELO Open Frame 1790L 17 PCAP HDMI VGA DP USB
$1,595.00 (incl. GST)
POSMarket SKU: Z11341
TMELE330225: 1790L, 17-inch LCD (LED Backlight), Open Frame, HDMI, VGA & Display Port video interface, Projected Capacitive 10 Touch Zero-Bezel, USB touch controller interface, Worldwide-version, Clear, No power brick
1790L, 17-inch LCD (LED Backlight), Open Frame, HDMI, VGA and Display Port video interface, Projected Capacitive 10 Touch Zero-Bezel, USB touch controller interface, Worldwide-version, Clear, No power brick
Product Overview
The Elo 1790L 17-inch open-frame LCD touch display features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch with proven Elo expertise and reliability built in. The 1790L provides stable, drift-free operation with outstanding image clarity and light transmission - for accurate touch responses and vivid images. Instantly grabbing and holding user's attention, the 1790L open is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Key Features
Key Features
- Next generation Projected Capacitive (PCAP)
- 2GS (two glass solution) technology
- Seamless, edge-to-edge glass touch display
- Ten touch "tablet like" Interactive experience
- Open-Frame architecture for hassle-free installation
- Drop in replacement allows easy replacement of existing units
- LED back-lighting reduces power consumption
- Comes with 3 Year Warranty.
Product Specifications
| Brand Name | ELO |
| Manufacturer | ELO |
| Model | 1790L |
| Bezel color | Black |
| Dimensions | IntelliTouch: 368.4 x 306.4 x 47.6 mm max / 14.5 x 12.0 x 1.9 inches SecureTouch: 368.4 x 306.4 x 47.6 mm max AccuTouch: 368.4 x 306.4 x 47.6 mm max Projected Capacitive: 393.2 x 328.5 x42.8 mm / 15.5 x 13.0 x 1.7 inches |
| Form Factor | Open-Frame |
| MTBF | 50,000 hours demonstrated |
| Mounting Options | 75 mm and 100 mm VESA mount Rear mount or with included standard mounting brackets Front mount with optional bezel (see Accessories tab for details) Rack mount with optional bracket (see Accessories tab for details) Flush mount with optional bezel kit (see Accessories tab for details) |
| Box contents | HDMI cable VGA Cable RJ45 OSD Remote Touch USB Cable User Manual CD Quick Install Guide For Zero-Bezel Models: Flush Mount Brackets w/Screws For Bezeled: IT/ST/AT Models: “L†(Side Mount) Brackets and w/Screws EEI Label Japan Class-B TM info sheet |
| Regulatory approvals and declarations | Australia RCM Canada cUL, IC China CCC Europe CE, TUV Japan VCCI Korea KCC Mexico CoC Taiwan BSMI United States UL, FCC International CB RoHS, China RoHS, WEEE, IMERC |
| Weight | Unpackaged: 3.6 kg ( 7.94 lb) Packaged: 5.5 kg ( 12.13 lb) |
| Warranty | 3 years |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| TMELE330225 | 1790L, 17-inch LCD (LED Backlight), Open Frame, HDMI, VGA & Display Port video interface, Projected Capacitive 10 Touch Zero-Bezel, USB touch controller interface, Worldwide-version, Clear, No power brick | $1,595.00 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| ELO Backpack | The Elo Backpack android compute engine transforms touchscreen monitors and signage displays into commercial-grade systems capable of running audio and video content interactive HTML webpages and Android-based apps. | $CALL | |
| ELO BACKPACK WITH GOOGLE PLAY SERVICES 3.0 | Elo Backpack with Google Play Services (3. | $1,039.50 | View Product |
| ELO ELO BACKPACK 4.0 | The Elo Backpack is a powerful, commercial-grade Android 10 compute engine designed to simplify the deployment of content, websites and Android-based apps. | $1,039.50 | View Product |
| ELO SERVICE EXT WARRANTY TOUCH MONITOR 5YR | Touch Monitor 5 Year Warranty Coverage. | $156.75 | View Product |
| ELO PSU 12V 50W F 1093for | External Power Brick and Cable LVL 5 EMEA and KR | $74.25 | View Product |
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
| Filename | Size | ||
|---|---|---|---|
 |
ELO 1790L Data Sheet | 187KB | Download |
