ELO OPEN FRAME 2794L

from $1,347.50 (incl. GST)

POSMarket SKU: Z11344

This model is available in 3 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

2794L 27-inch wide FHD LCD WVA (LED Backlight), Open Frame, HDMI, VGA & Display Port video interface, IntelliTouch, USB & RS232 touch controller interface, Worldwide-version, Clear, No power brick

Product Rating
Product Overview

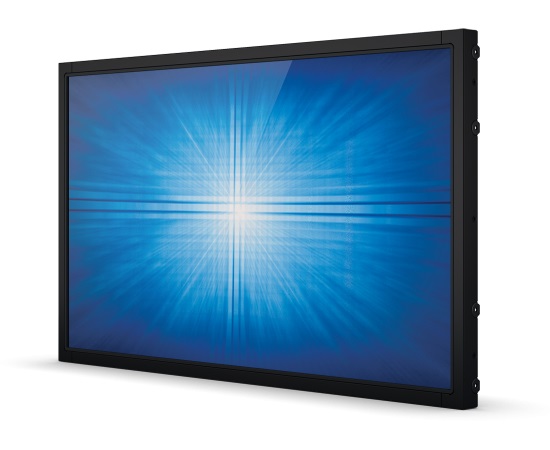

The Elo 2794L 27-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 2794L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users’ attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Product Specifications
Brand NameELO
ManufacturerELO
Model2794L
ColorBlack
Active Display Area597.6 x 336.15 mm / 23.53 x 13.23 inches
Diagonal27-Inch
Aspect Ratio16:9
DimensionsBezel: 633.2 x 374.4 x 41.8 mm / 24.93 x 14.74 x 1.65 inches
Zero-Bezel: 644.2 x 388.4 x 39.6 mm / 25.36 x 15.29 x 1.56 inches
Native Resolution1920x1080 50, 60Hz
Other Supported Resolutions640x480 at 60Hz; 720x400 at 70Hz; 800x500 at 60Hz; 800x600 at 56, 60Hz; 1024x768 at 60Hz; 1280 x 800 60 Hz; 1280x1024 at 60Hz;
1366x768 at 60Hz, 60Hz RB; 1440x900 at 60Hz, 60Hz RB; 1680x1050 at 60Hz, 60Hz RB; 1920 x 1080 at 50, 60HzB
Colors16.7 million
Brightness(typical) LCD panel: 300 nits; iTouch: 270 nits
IntelliTouch: 270 nits; IntelliTouch Plus: 270 nits; PCAP: 270 nits
Response (typical)12ms
ViewingAngle Horizontal: 89 Deg/178 Deg
Vertical: 89 Deg/178 Deg
Contrast Ratio 3000:1
Temperature Operating0 C to 40 C (32 F to 104 F); Storage: -20 C to 60 C (-4 F to 140 F)
HumidityOperating: 20% to 80%
Storage: 10% to 95%
WeightUnpackaged: 16.1 lb (7.3 Kg)
Packaged: 22.27 lb (10.1 Kg)
Shipping Dimensions782 (L) x 530 (W) x 200 (H) mm / 30.79 (L) x 20.87 (W) x 7.87 (H) inches
Mounting Options200x100mm VESA mount on rear of unit; 4 Hole mounting interface on all four sides; Front mount with optional bezel kit (IT/AT/ST Models); Flush mount with included brackets (PCAP/iTouch/Non-Touch Models)
Warranty3 years standard
ModelDescriptionPriceStock
TMELE329077 2794L, 27-inch wide FHD LCD WVA (LED Backlight), Open Frame, HDMI, VGA & Display Port video interface, IntelliTouch Plus Dual Touch, USB touch controller interface, W/wide-version, Clear, No power brick $2,282.50
Call
 Add to Cart
TMELE329262 2794L 27-inch wide FHD LCD WVA (LED Backlight), Open Frame, HDMI, VGA & Display Port video interface, IntelliTouch, USB & RS232 touch controller interface, Worldwide-version, Clear, No power brick $2,234.38
Call
 Add to Cart
E327914 2294L 21.5-inch wide FHD LCD WVA (LED Backlight), Open Frame, HDMI, VGA & Display Port video interface, IntelliTouch, USB & RS232 touch controller interface, Worldwide-version, Clear, No power brick $1,347.50
Call
 Add to Cart
ModelDescriptionPrices From
ELO BACKPACK WITH GOOGLE PLAY SERVICES 3.0 Elo Backpack with Google Play Services (3. $1,039.50 View Product
ELO ELO BACKPACK 4.0 The Elo Backpack is a powerful, commercial-grade Android 10 compute engine designed to simplify the deployment of content, websites and Android-based apps. $1,039.50 View Product
ELO Stylus PCAP Pen PCAP Stylus Pen $33.00 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document ELO 2794L Data Sheet 153KB Download
