POSMarket SKU: Z20139

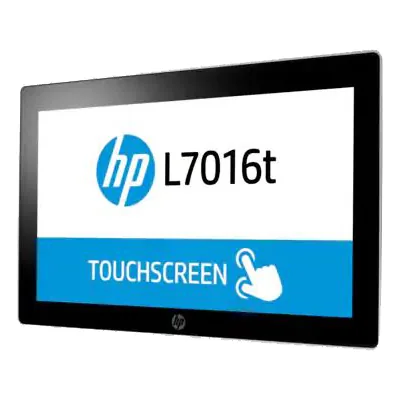

15.6-inch Retail Touch Monitor
| L7016t 15.6-inch Retail Touch Monitor | |
| Display size (diagonal) | 15.6 in |
| Display type | TN w/LED backlight |
| Native resolution | 1366 x 768 at 60Hz |
| Aspect ratio | 16:9 |
| Brightness | 360 nits (with glass) |
| Static contrast ratio | 500:1 static |
| Dynamic contrast ratio | N/A |
| Pixel pitch | 0.252 x 0.252 mm |
| Pixels per inch (PPI) | 100 |
| Backlight lamp life | 50,000 hrs (minimum) |
| Anti-glare panel | Yes |
| BrightView panel | No |
| Response time | 8 ms on/off (typical) |
| Color gamut | 62% |
| Color support | 16.2 M colors |
| Horizontal viewing angle (typical CR>10) | 170 degrees |
| Vertical viewing angle (typical CR>10) | 160 degrees |
| 3D vertical viewing angle | N/A |
| Panel active area | 344.23 x 193.53 mm |
| Supported resolutions | 640 x 480 at 60 Hz 720 x 400 at 70 Hz 800 x 600 at 60 Hz 1024 x 768 at 60 Hz 1280 x 720 at 60 Hz 1280 x 800 at 60 Hz 1280 x 1024 at 60 Hz 1366 x 768 at 60 Hz |
| Maximum resolution | 1366 x 768 at 60 Hz |
| Recommended resolution | 1366 x 768 at 60 Hz |
| Vertical scan range | 50 to 76 Hz |
| Horizontal scan range | 24 to 80 kHz |
| Default color temperature | 6500K |
| Maximum pixel clock speed | 110 MHz |
| Exterior color of monitor bezel and stand | HP logo(front): PMS Cool Gray 10c Rear cover: Asteroid Front cover: HP Black |
| Plug & play | Yes |
| Tilt | -5 to +135 degrees |
| Swivel | N/A |
| Pivot | N/A |
| Security lock ready | N/A |
| Height adjustment | N/A |
| Height adjustment range (Min-Max) | N/A |
| Detachable base | Yes |
| Webcam | N/A |
| Speakers output power | N/A |
| Warranty | 3 years |
| VESA mounting | Yes |
| Touch specifications | |
| Touch panel type | Projected Capacitive Touch, > 10 points |
| Positional accuracy | Within 1.0 mm each target & 10% Jitter limit on moving |
| Resolution accuracy | 25 ppi (minimum) |
| Optical light transmission (per ASTM D1003) | Normal Glass: ?85% |
| Electrostatic projection (pr EN6100-4-2, 1955) | Air +/- 8kv, contact +/-4k |
| On screen display (OSD) | |
| User controls | Brightness, Contrast, Input Control, Color, Image Control, Power Control, Menu Control, Management, Language, Information, Factory Reset, Exit |
| User programmable modes | Yes, 8 |
| Monitor control buttons or switches | Brightness, Color Control, Information, Menu |
| Audio controls | N/A |
| Languages | Brazilian Portuguese, Chinese (Simplified), Chinese (Traditional), English, French, German, Italian, Japanese, Netherlands, Spanish |
| Input connectors | |
| Input connectors | (1) DisplayPort 1.2 HDCP Support |
| Power | |
| Power supply | External power supply |
| Power source | 100-240VAC 50/60Hz |
| Power consumption (maximum) | 14 W |
| Energy saving/Standby mode | <0.5 W |
| Power consumption (typical) | 11.8 W |
| Power cable length | 1.83 m |
| Operational Mode at 100 VAC | N/A |
| Operational Mode at 115 VAC | N/A |
| Operational Mode at 230 VAC | N/A |
| Operating conditions | |
| Operating temperature | 5° to 35° C (41 to 95° F) at 20% to 80% humidity (non-condensing) |
| Non-operating temperature | -20° to 60° C (-4° to 140° F) at 5% to 95% humidity (noncondensing) |
| Operating humidity | 20% - 80% (non-condensing) |
| Non-operating humidity | 5% - 95% |
| Operating altitude | 0 to 5,000 m (16,400 ft) |
| Non-operating altitude | 0 to 12,192m (40,000 ft) |
| Weight and dimensions | |
| Unpacked without stand | 397.3 x 45 x 251.4 mm (15.6 x 1.8 x 9.9 in) |
| Packed | 478 x 140 x 330 mm (18.82 x 5.51 x 12.99 in) |
| Display head dimensions (unpacked without stand) | 397.3 x 45 x 215.4 mm (15.6 x 1.8 x 9.9 in) |
| Weight (unpacked with stand) | 3 kg (6.61 lb) |
| Weight (packed) | 4.45 kg (9.81 lb) |
| Environmental | |
| Mercury-free display backlighting | Yes, Mercury-free backlights |
| Arsenic-free display glass | Yes |
| Low halogen | Yes |
| Agency approvals and certifications | CB, CE, FCC marking, ErP, CSA/C-UL/C-ETL Mark, cTUVus/UL/CSA-NTRL/ETL-NRTL Mark, ICES, Japan VCCI, CCC, CECP, China CEL, Taiwan BSMI, Bauart; KCC; e-standby; PSB, ISC mark, C-tick, ETC, Vietnam MEPS, Australian-New Zealand MEPS/EPA7.0 |
| Microsoft WHQL certification | Windows 7, 8, 10 |
| ENERGY STAR qualified | N/A |
| EPEAT Registered | N/A |
| China energy label | Grade1 (GB21520-2008) |
| TCO certified edge | N/A |
| TCO certified | N/A |
| SmartWay transport partnership | Yes (NA SKU) |
| Contains recycled plastics in back cover | Yes |
| Contains recycled plastics in base/stand | Yes |
| Contains recycled plastics in other parts | Yes |
| Recyclable plastics | N/A |
| Recyclable packaging | N/A |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| V1X13AA | 15.6 Inch Wide Format Projected Capacitive TouchScreen, Edge-to-Edge Glass, Beep on Touch Support, 100mm VESA mountable. Includes PSU and Power Cord only (H6Y88AA) | $CALL |
| Model | Description | Prices From | |
|---|---|---|---|
| HP CDU MOUNTING KIT FOR RP9 L7010 L7014 L7016 | Cable kit for mounting L7014 / L7014t / L7016t on RP9 as CFD | $CALL | |
| HP CABLE DISPLAYPORT + 12V PUSB Y USB 3M L701XT | Cable kit consisting of 3m displayport cable & 3m 12V powered USB cable. | $74.25 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
HP RP9 G1 Retail System Solution brief.pdf | 312KB | Download |
|
HP RP9 G1 Retail System, Model 9015 Datasheet.pdf | 713KB | Download |
|
HP RP9 G1 Retail System Quickspecs.pdf | 1MB | Download |
