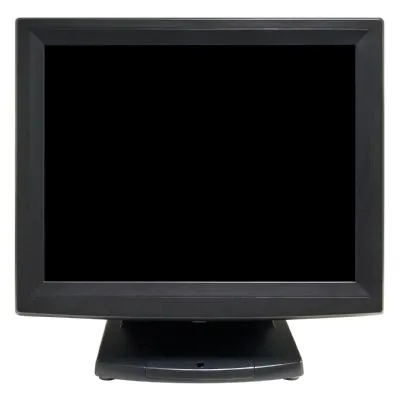

VPOS 135
POSMarket SKU: Z7558
The VPOS135 with long life cycle LED backlight is flexible and a user-friendly design. It has a versatile Touch Screen adjustable from 4 to 90 degrees. Moreover, it can be extended to a more complete POS solution by simply adding optional POS peripherals.
Product Overview
- 5 Wire ELO Resistive Touch Panel
- Long Life LED backlight
- 36 Month Return to Base Warranty
- Slim and Lightweight
- VESA Wall Mountable
Optional Extra's: - Magnetic card reader
- Flush mount VFD screen
- Finger print scanner
Product Specifications
| LCD / Touch Panel | |
| LCD Size: | 15" TFT LCD |
| Brightness: | 250 cd/m2 |
| Resolution: | 1024 x 768 |
| Touch Screen: | ELO 5-wire resistive |
| Tilt Adjustment: | 4-90 Degrees |
| External I / O Ports | |
| VGA: | 1 |
| DC Jack: | 1 |
| OSD Button: | 5 x (left, right, power, menu, select) |
| USB Port: | 1 x USB 2.0 (Type A), 1 x USB 2.0 (Type B to PC) |
| Serial Port: | 2 x COM (1 x DB-9/F type to PC, 1 x RJ-45 type to VFD) |
| Power Adapter: | DC 36W, 12V, 3A |
| Control/Indicator | |
| Power Button: | 1 |
| Indicator LED: | 1 |
| Peripheral (Optional) | |
| MSR / Finger print: | MSR (USB) / Finger print scanner (USB) (Either one module is accepted) |
| Customer display: | 2 x 20 VFD customer display (COM) |
| Certificate | |
| EMC & Safety: | FCC Class A / CE Mark / LVD |
| Environment | |
| Operating Temperature: | 0C - 40C |
| Storage Temperature: | -20C - 55C |
| Operating Humidity: | 5% - 95% RH non-condensing |
| Storage Humidity: | 5% - 95% RH non-condensing |
| Dimension (W x D x H): | LCD 90 Degree tilt angle: 365.2 x 217.8 x 338.9 mm |
| Weight: | 4.8kg |
| Mounting: | 100mm x 100mm VESA Standard holes |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| TMFLVPOS135C1115EL | 135 15" Touch Monitor. Resistive touch, LED, Black | $CALL |
| Model | Description | Prices From | |
|---|---|---|---|
| Cherry MW-2400 | The CHERRY MW 2400 wireless mouse is optimised for professional use in any workplace. | $15.03 | View Product |
| Cherry SPOS G86-615xx | Freely programmable USB-keyboard with magnetic card reader (with encryption) and optional touchpad, mouse keys. | $233.82 | View Product |
| VPOS Desk Stand | The VPOS Desk stand is designed to Mount a POS Terminal or Monitor. | $CALL | |
| Datalogic Powerscan PBT9501 | Industrial Area Imager Barcode Scanner | $1,170.13 | View Product |
| VPOS Cable Display Port Male to Male 4K 5M | Featuring a bandwith of up to 21. | $49.50 | View Product |
| Atdec Spacedec Direct Wall Mount | The black Spacedec SD-WD Wall Mount from Atdec is a low-profile, robust mount created to cope with demanding commercial environments and a heavy workload, where quick installation and flexible screen positioning are required. | $115.50 | View Product |
| Ergonomic Solutions SpacePole 400mm Dual Screen Mount for Engage One | Back-to-back screen mount solution, Engage One/VESA 400mm pole. | $632.50 | View Product |
| Ergonomic Solutions Spacepole Essentials Standard Mount | SpacePole Essentials is a product range appropriate for technology partners and end users alike. | $254.38 | View Product |
| Ergonomic Solutions Spacepole Essentials 200mm Swing Arm Mount | SpacePole Essentials is a product range appropriate for technology partners and end users alike. | $302.50 | View Product |
| Zebra Cable Serial To RJ45 W Strain Relief For QLN | Serial cable for connecting the QLn to RJ-45 serial devices. | $43.38 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
VPOS135 Brochure | 576KB | Download |
