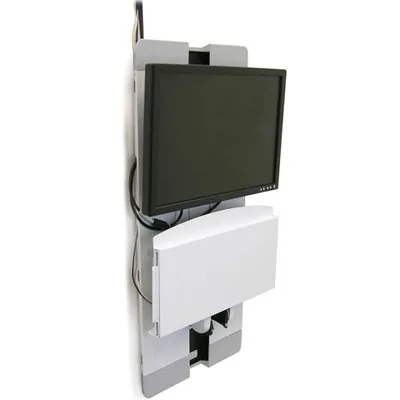

Styleview Vertical Lift (with tray folde

Ergotron StyleView Vertical Lift Patient Room White

$1,656.88 (incl. GST)

POSMarket SKU: Z9342

60-609-216: ERGOTRON STYLEVIEW VERTICAL LIFT PATIENT ROOM WHITE

StyleView Vertical Lift, Patient Room (White) - 5 Year Warranty Perfect for space-constrained patient exam rooms, the low-profile vertical lift provides 9" (23 cm) of smooth vertical adjustment and folds into a slim, compact unit when not in use. The slide-out, back-tilt keyboard enhances user comfort, while the monitor and keyboard pan capability promote patient-caregiver interaction. A unique cable management system conceals and organizes cords and makes cleaning a snap!

Product Rating

Product Overview

A very low-profile workstation that adjusts between sitting and standing working heights: With a storage depth of just 6" (15.2 cm), it is the perfect solution for space-constrained patient rooms.

Move the entire system - monitor, keyboard, mouse and scanner in a single motion. The slide-out, back-tilt keyboard enhances user comfort, while the monitor and keyboard pan capability promotes patient-caregiver interaction.

Side-to-side pan of keyboard and display promote patient caregiver interaction while access data

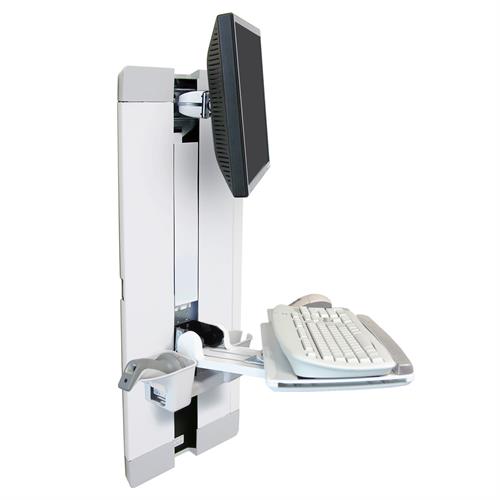

Slide-out Keyboard Tray can extend out an extra 5" (125 mm) for comfortable data entry
With the keyboard folded up, total system depth is as little as 4.5" (114 mm)
Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry
Patented counterbalance system provides smooth adjustment while maintaining touch-screen stability
9" (229 mm) vertical adjustment enhances ergonomics for multiple users
Steel construction for long-lasting durability
Right- or left-side cable management system conceals and organizes cords and makes cleaning a snap!

Product Specifications

Model	60-593-216
Manufacturer	Ergotron
Part Number	60-593-216
UPC	698833008685
Color	White
Weight Capacity	5-30 lbs (2.3-13.6 kg). Listed weight capacity represents total load, including both the monitor and contents of keyboard tray. Maximum monitor weight = 25 lbs (11.3 kg); monitor thickness greater than 3" (7.6 cm) may decrease capacity.
Lift	(22.9 cm) 9 in
Tilt	10 degree
Mounting Pattern	VESA FDMI MIS-D, 100/75 (hole pattern: 100 x 100 mm & 75 x 75 mm)
Shipping Weight	36.4 lbs (16.5 kg)
Shipping Dimensions	39.5" x 16" x 10.75" (1000 x 406 x 273 mm)
Warranty	Five (5) years
Monitor Size	Up to 24"

Model	Description	Price	Stock
60-609-216	ERGOTRON STYLEVIEW VERTICAL LIFT PATIENT ROOM WHITE	$1,656.88	Call	Add to Cart

Model	Description	Prices From
Ergotron StyleView Vertical Lift Patient Room White	StyleView Vertical Lift, Patient Room (White) - 5 Year Warranty Perfect for space-constrained patient exam rooms, the low-profile vertical lift provides 9" (23 cm) of smooth vertical adjustment and folds into a slim, compact unit when not in use.	$1,656.88	View Product

Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.

Filename	Size
Ergotron Styleview Datasheet	1MB	Download
Ergotron Styleview User Manual	5MB	Download
Ergotron Styleview Dimensional Illustrations	178KB	Download

Product Videos

Ergotron StyleView: Your cart. Your way.
