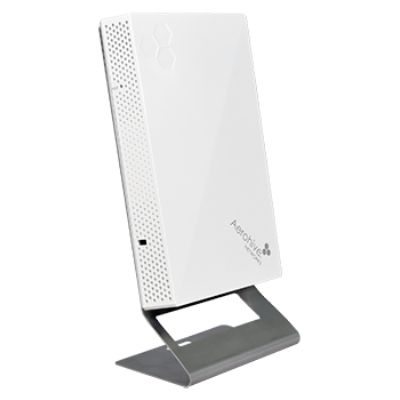

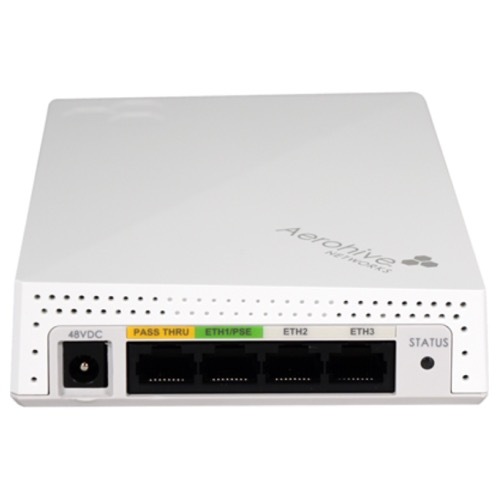

Aerohive AP150W

$501.88 (incl. GST)

POSMarket SKU: Z7578

AH-AP-150W-AC-W: AP150W. Indoor wall plate access point, 2 radio 3x3:3 802.11ac, MU-MIMO, 4 10/100/1000 Ethernet ports, BLE, POE, configurable regulatory domain. Includes HiveManager Connect & HiveCare Community

The AP150W is the industrys only wallplate 3x33 802.11ac Wave 2 Wi-Fi Access Point and wired Switch cloud-managed by Aerohive's next generation HiveManager NG. It delivers high performance wireless data rates up to 1.3 Gbps integrated Bluetooth Low Energy BLE and ZigBee for IoT connectivity and 4 Gigabit Ethernet ports that can also power VoIP phones IoT sensors and cameras.

Product Rating
Product Overview
Transform any existing Ethernet jack into a versatile and compact cloud-managed AP and Switch for connectivity ideal for hospitality, cruise ships, residential halls, or other multi-dwelling-unit deployments.

Aerohive™'s AP150W is designed to address key use cases like:
  • Higher education - University dorm rooms
  • Hospitality Hotel rooms/suites/cruise ships
  • Long term care units
  • Multiple Dwelling Units (MDU)
  • Retail In-store connectivity including checkout kiosks
Product Specifications
Product Description
SpacePole Dock And Chargemounting kit
Product TypeMounting kit - desktop
Mounting ComponentsEnclosure, DuraTilt stand
Integrated DevicesCharging unit
Pan210 Degrees
AdjustmentsPan, tilt
Nominal VoltageAC 100 - 240 V
Recommended UseTablet
Recommended Display Size10.1"-10.5"
Voltage Provided12 V
ColorWhite
Designed ForSamsung Galaxy Tab A (2016) (10.1 in), Tab A (2018) (10.5 in), Tab A (2019) (10.1 in), Tab S4, Tab S5e
NETWORKING
TypeWireless access point
Connectivity Technologywired, wireless
Data Link ProtocolBluetooth, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
FeaturesMU-MIMO technology, manageable, wall mountable
Compliant StandardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x
Wireless Protocol802.11a/b/g/n/ac, Bluetooth
Data Transfer Rate867 Mbps
Wi-Fi Bands2.4 GHz, 5 GHz
Spread Spectrum MethodDSSS, OFDM
Power Over Ethernet (PoE)PoE
GENERAL
Height6.9 in
Ruggedized DesignIndoor
Depth1.1 in
ManufacturerExtreme Networks, Inc
ANTENNA
Antenna Qty7
Antenna Form Factorinternal
MISCELLANEOUS
Color Categorywhite
Compliant StandardsFCC
ENVIRONMENTAL PARAMETERS
Min Operating Temperature32 F
Max Operating Temperature104 F
Humidity Range Operating0 - 95%
HEADER
BrandAerohive
Product LineAerohive
ModelAP150W
Packaged Quantity1
CompatibilityPC
INTERFACE PROVIDED
Qty1, 2
DIMENSION And WEIGHT
Width4.2 in
Depth1.1 in
Height6.9 in
Weight13.76 oz
ModelDescriptionPriceStock
AH-AP-150W-AC-W AP150W. Indoor wall plate access point, 2 radio 3x3:3 802.11ac, MU-MIMO, 4 10/100/1000 Ethernet ports, BLE, POE, configurable regulatory domain. Includes HiveManager Connect & HiveCare Community $501.88
Call
 Add to Cart
ModelDescriptionPrices From
Aerohive HIVEMANAGER VIRTUAL APPLIANCE DOWNLOAD Aerohive's HiveManager NMS is a central management system for Aerohive HiveAPs. $3,416.88 View Product
Extreme LIGHTNING PROTECTOR GIGABIT ETHERNET Ethernet lightning Protector. $519.75 View Product
Aerohive A3 Partner Support License A3 delivers a complete Network Access Control (NAC) for all wireless and wired clients on the network. $9,315.63 View Product
Extreme Extreme Wall Mount for AP305C AP410 AP510C CX Bracket, Wall Mount, Supported on AP630, AP650 and AP650X. $64.35 View Product
Extreme Extreme Ethernet Flat Male Male Cable AP150W in-box accessory sold as a spare : Flat male-male Ethernet cable, 100mm. Qty 5 $31.35 View Product
Extreme Aerohive Desk Mount Stand for AP150W Desk Mount stand for AP150W. Includes screws. $58.44 View Product
Aerohive AP150W AC 36W Power Supply Unit 36W Level 6 power supply for AP150W for AU $152.63 View Product
Extreme 25GB Direct Attach Cable SFP28-SFP28 Extreme 25Gb DAC SFP28-SFP28, 3m $693.00 View Product
Extreme Summit X450-G2 Series X450-G2-48p-GE4 Switch 48 ports Role-based policy and host integrity enforcement, and identity management. $6,105.00 View Product
Extreme Summit X450-G2 Series X450-G2-24p-GE4 - switch - 24 ports Role-based policy and host integrity enforcement, and identity management. $6,407.50 View Product
Extreme ExtremeSwitching X440-G2 X440-G2-12t-10GE4 switch 12 ports The ExtremeSwitching X440-G2 series is based on Extreme Networks ExtremeXOS, a highly resilient OS that provides continuous uptime, manageability and operational efficiency. $3,410.00 View Product
Extreme ExtremeSwitching X440-G2 X440-G2-24t-10GE4 Switch The ExtremeSwitching X440-G2 series are powered by ExtremeXOS, a highly resilient OS providing continuous uptime, manageability, and operational efficiency. $5,163.13 View Product
Extreme X440-G2 The X440-G2 Series easy-to-use, yet powerful, management services include role-based policies for controlled access to specific network applications. $7,363.13 View Product
Extreme ExtremeSwitching X440-G2 X440-G2-24t-GE4 switch 24 ports The ExtremeSwitching X440-G2 series are powered by ExtremeXOS, a highly resilient OS providing continuous uptime, manageability, and operational efficiency. $3,203.75 View Product
Extreme ExtremeSwitching X440-G2 Quad 10GbE Upgrade License upgrade The Quad 10GbE Upgrade License converts four 1GbE SFP ports to be 10GbE SFP+. $2,821.50 View Product
Extreme ExtremeSwitching X440-G2 Dual Upgrade 10GbE to Quad The X440-G2 Series easy-to-use, yet powerful, management services include role-based policies for controlled access to specific network applications. $1,410.75 View Product
Extreme Extreme Switch 220-24T-10GE2 24-Port 2X 10GBE The ExtremeSwitching 200 Series is an economical, fixed-configuration family of managed Gigabit Ethernet Layer 2/3 switches designed for enterprises, branch offices and small to medium-sized businesses looking for key features in a flexible, yet easy-to-manage solution. $2,674.38 View Product
Extreme Extreme Switch 220-48T-10GE4 48-Port 4X 10GBE The ExtremeSwitching 200 Series is an economical, fixed-configuration family of managed Gigabit Ethernet Layer 2/3 switches designed for enterprises, branch offices and small to medium-sized businesses looking for key features in a flexible, yet easy-to-manage solution. $4,269.38 View Product
Extreme Extreme Switch 220-48P-10GE4 48-Port 4X 10GBE POE+ The ExtremeSwitching 200 Series is an economical, fixed-configuration family of managed Gigabit Ethernet Layer 2/3 switches designed for enterprises, branch offices and small to medium-sized businesses looking for key features in a flexible, yet easy-to-manage solution. $6,407.50 View Product
Extreme Extreme Switch 210-12T-GE2 12-Port 2X 1GBE The ExtremeSwitching 200 Series is an economical, fixed-configuration family of managed Gigabit Ethernet Layer 2/3 switches designed for enterprises, branch offices and small to medium-sized businesses looking for key features in a flexible, yet easy-to-manage solution. $295.63 View Product
Extreme Summit X460-G2 Series X460-G2-24t-10GE4 Switch 24 Port The X460-G2 series is based on Extreme Networks revolutionary ExtremeXOS, a highly resilient OS that provides continuous uptime, manageability, and operational efficiency. $10,938.13 View Product
Extreme Extreme Switch X460-G2-48T-10GE4-BASE 48 Port The X460-G2 series is based on Extreme Networks revolutionary ExtremeXOS, a highly resilient OS that provides continuous uptime, manageability, and operational efficiency. $16,740.63 View Product
Extreme Extreme Switch Summit X460-G2-24P-10GE4-Base The X460-G2 series is based on Extreme Networks revolutionary ExtremeXOS, a highly resilient OS that provides continuous uptime, manageability, and operational efficiency. $11,041.25 View Product
Extreme Extreme Switch X460-G2-48P-10GE4-BASE 48 Port The X460-G2 series is based on Extreme Networks revolutionary ExtremeXOS, a highly resilient OS that provides continuous uptime, manageability, and operational efficiency. $17,902.50 View Product
Extreme Extreme Switch X460-G2-24T-GE4-BASE 24 Port The X460-G2 series is based on Extreme Networks revolutionary ExtremeXOS, a highly resilient OS that provides continuous uptime, manageability, and operational efficiency. $7,548.75 View Product
Extreme Extreme Switch X460-G2-16MP-32P-10GE4 16 Port The X460-G2 series is based on Extreme Networks revolutionary ExtremeXOS, a highly resilient OS that provides continuous uptime, manageability, and operational efficiency. $22,763.13 View Product
Extreme Extreme Switch X460-G2-24P-24HP-10GE4-BASE 24 Port The X460-G2 series is based on Extreme Networks revolutionary ExtremeXOS, a highly resilient OS that provides continuous uptime, manageability, and operational efficiency. $18,562.50 View Product
Extreme Extreme Switch X590-24X-1Q-2C Base System The X590 Series can serve as the controlling aggregation switch within Extreme's innovative Extended Edge Switching solution, simplifying the deployment and operation of connected edge switches. $23,753.13 View Product
Extreme Extreme Switch X620 X620-10X-BASE X620 10 100Mb/1Gb/10GBASE-X SFP+ ports integrated power supply and fans ExtremeXOS Edge license. $7,720.63 View Product
Extreme Extreme Switch V400-48P-10GE4 As an extension of the central ExtremeXOS aggregation switch, V400 edge devices/ports deliver the same network services and software features across the network. $11,013.75 View Product
Extreme Mounting Plate for Indoor APs Mounting Plate Indoor APs (included in AP Box) - only order for spares. $52.80 View Product
Extreme Drop Ceiling Flat Tile T-Bar Bracket Accommodates 9/16 15/16 and 1.5 wide T-bars. $111.38 View Product
Extreme Extreme 40G AOC QSFP+ 5m MSA Ethernet 40GBase-AOC cable - 5 m $1,925.00 View Product
Extreme Extreme 40G ACTIVE DAC QSFP+ 1M Extreme Networks transceiver modules are 100% compatible in all OEM applications. $955.63 View Product
Extreme Extreme 40G PASSIVE DAC QSFP+ TO 4XSFP+ 2M Extreme Networks transceiver modules are 100% compatible in all OEM applications. $2,557.50 View Product
Extreme Extreme Switch 5420F 16PORT MR 802.3BT 90W 32 POE+ The ExtremeSwitching 5420 Series is a family of high-performance, feature-rich edge switches designed for the next-generation digital enterprise. $23,931.88 View Product
Extreme Extreme Switch 5420F 24 port POE+ Switch The ExtremeSwitching 5420 Series is a family of high-performance, feature-rich edge switches designed for the next-generation digital enterprise. $11,419.38 View Product
Extreme Exreme Switch 5420F 24port Fiber Switch The ExtremeSwitching 5420 Series is a family of high-performance, feature-rich edge switches designed for the next-generation digital enterprise. $11,632.50 View Product
Extreme Extreme Switch 5420F 48PORT POE+ Switch The ExtremeSwitching 5420 Series is a family of high-performance, feature-rich edge switches designed for the next-generation digital enterprise. $17,558.75 View Product
Extreme Extreme Switch 5420F 48PORT POE+ Switch w LRM The ExtremeSwitching 5420 Series is a family of high-performance, feature-rich edge switches designed for the next-generation digital enterprise. $18,404.38 View Product
Extreme Extreme Switch 5420F 8PORT 802.3BT 90W 16 POE+ The ExtremeSwitching 5420 Series is a family of high-performance, feature-rich edge switches designed for the next-generation digital enterprise. $12,065.63 View Product
Extreme Extreme Switch 5420M 16PORT MR 802.3BT 90W 32 POE+ The ExtremeSwitching 5420 Series is a family of high-performance, feature-rich edge switches designed for the next-generation digital enterprise. $23,478.13 View Product
Extreme Extreme Switch 5420M 24 Port Data Switch The ExtremeSwitching 5420 Series is a family of high-performance, feature-rich edge switches designed for the next-generation digital enterprise. $11,838.75 View Product
Extreme Extreme Switch 5420M 24PORT 802.3BT 90W POE Switch The ExtremeSwitching 5420 Series is a family of high-performance, feature-rich edge switches designed for the next-generation digital enterprise. $11,873.13 View Product
Extreme Extreme Switch 5520 24 Port Data The ExtremeSwitching 5520 Series is a family of high-performance, feature-rich edge and aggregation switches designed for the nextgeneration digital enterprise. $9,975.63 View Product
Extreme ExtremeWorks 97000-AH-AP-150W-AC-W ExtremeWorks, Software and TAC, Service, 24 x 7, Technical, Electronic Service, 1 Year, 97000-AH-AP-150W-AC-W $68.75 View Product
Extreme ExtremeWorks NBD AH-AP-150W-AC-W ExtremeWorks NBD Advanced Hardware Replacement AH-AP-150W-AC-W $165.00 View Product
Extreme ExtremeWorks 4hr AHR AH-AP-150W-AC-W ExtremeWorks 4 Hour Advanced Hardware Replacement AH-AP-150W-AC-W $226.88 View Product
Extreme Micro-USB to USB Console Adapter Cable Micro-USB to USB Console Adapter Cable for Extreme Wireless Access Points $86.63 View Product
Extreme ERS 4926GTS 26-port Ethernet Switch ERS 4926GTS 26-port Ethernet Switch, supporting 24 x 1000BASE-T & 2 x 10GBASE-SFP+ ports. $7,816.88 View Product
Extreme ExtremeWireless AP360i - wireless access point AP360i-WR Outdoor Access Points, Dual Radio 802. $2,090.00 View Product
Extreme AP410e-WR Tri Radio 802.11ax AP410e-WR Tri Radio 802. $2,550.63 View Product
Extreme AP460 Internal Outdoor Omni WiFI6 V2 ExtremeCloud IQ: Tri-radio Outdoor WiFi6 AP (4x4 5 GHz, 2x2 dual band & 1x1 sensor). $2,461.25 View Product
Extreme AP460e-WR, Tri Radio 802.11ax Outdoor WiFI6 AP460e-WR, Tri Radio 802. $2,970.00 View Product
Extreme Antenna Patch 4 Dual Element Indoor Dual-Band, Ceiling Mount, Circular Omni Array (4 V-Pol ports) $460.63 View Product
Extreme AP7161 Vehicle Mounting Kit Mounting kit to suit the AP7161 installed as a Vehicle Mount Model (VMM) $577.50 View Product
FEC AP/MP Series Power Supply Unit FEC 90W 12V power Adapter to suit AerPOS and MegaPOS series $189.75 View Product
Extreme EXTREME HIVEMANAGER CLASSIC ONLINE AP SR BR HiveManager Classic Cloud Services Subscription for one (1) Extreme Device (AP, Router or Switch). $220.00 View Product
Aerohive SUPPORT GLOBAL SELECT 1 YR RNW global support program designed for those customers that want to augment their existing IT resources. $385.00 View Product
Aerohive HIVEMANAGER CLASSIC ONPREM DEVICE Renewal and New subscription Only. $79.06 View Product
Extreme HIVEMANAGER NG ONLINE AP SR Hive Manager helps organizations automate end-to-end, edge-to-DC network operations, unlock new analytics, scale faster, and secure and optimize the end user and application experience. $165.00 View Product
Extreme HIVEMANAGER NG ONPREM AP SR HiveManager is an enterprise-class cloud-based management solution for enabling a converged, next-generation campus network. $79.06 View Product
Extreme EXTREME SUPPORT 95600 Flexible Business models to fit your service needs. $61.88 View Product
Extreme SUPPORT 95604 Partner Works Plus support for 95604 $115.50 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document Aerohive Datasheet AP150W 680KB Download
Product Videos
AP150W Wallplate Access Point and Switch Product Overview
