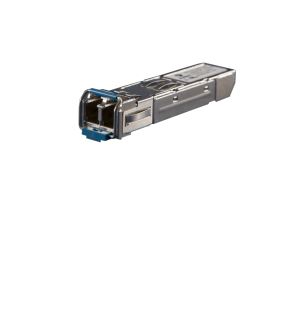

Extreme 10GBASE-BiDi-40

Extreme Networks offers a wide variety of 10Gb SFP+ modules for connectivity at 10Gb data rates.

The Extreme 10GBASE-BiDi-40 Optics modules support link lengths of up to 40Km over a single fiber with LC connector. They provide 10G optical links over one Single mode fiber by transmitting and receiving bidirectionally at different wavelengths over the same fiber, using one module which transmits at 1270nm paired with a second module which transmits at 1330nm.

Extreme Networks offers a complete set of high-performance, reliable, and cost-effective optical transceivers to help enterprises and service providers meet the challenges of diverse network topologies. To ensure maximum quality, Extreme selects and tests the most reliable, highest-performing optical transceivers on the market, and then warrants their availability, capacity, and performance in Extreme Networks products.

Features

• Hot-swappable input/output device that plugs into a 100 Gigabit Ethernet Extreme platform
• Interoperable with other IEEE-compliant 100GBASE interfaces where applicable
• Certified and tested on Extreme platforms for superior performance, quality, and reliability
• High-speed electrical interface compliant to IEEE 802.3bm.
• QSFP Form factor, 2-wire I2C communication interface and other low-speed electrical interface compliant to SFF 8436 and QSFP Multisource Agreement (MSA)

*Note: Customers should ensure that 10GBASE-BiDi-40 receivers are protected from excessive input optical power by adding additional optical attenuation if necessary. TX and RX power levels are described for each module in the Optics compatibility website.
