Product Overview
- Real-time network optimization for high density
- Application detection, analysis and control at the edge
- Service differentiation for inventory control, staff and guest access
- Digitise the shopper experience with guest access, social analytics, application QoS and Location aware services
The AP 7632 is packed with a comprehensive feature set based on the market proven WiNG 5 technology that delivers a self-optimizing, self-correcting Wi-Fi network to support devices from a student’s tablet to a warehouse inventory control device. With the integrated Deep Packet Inspection engine, the AP 7632 provides on-board application visibility and control right on the AP itself. No matter how many users are on your WLAN or what applications they are using, they can count on dependable blazing desktop-style speed. Integrated sensor firmware extends the Extreme Networks AirDefense security suite across the network.

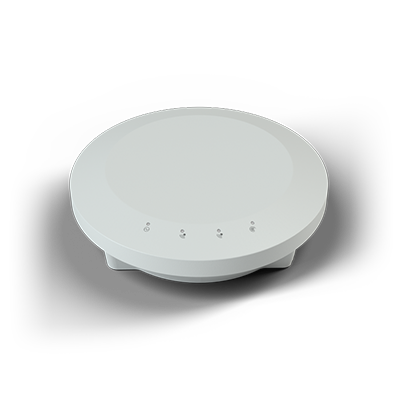

Available in two form factors to meet high aesthetics use case and flexible high temperature use cases. The AP 7632i (internal antenna) features a durable low profile polycarbonate enclosure and four distinct mounting options. The AP 7632e (external antenna) features an all metal enclosure and internal circuity to extend the operating temperature from -20°C to 60°C; ideal for maximum range and performance in demanding industrial applications.
Product Specifications
| AP 7632 | |
| 802.11AC Capabilities | |
| 802.11ac 2x2:2, MIMO, MU-MIMO 256-QAM, HT20/40/80 MHz | Packet Aggregation (AMSDU, AMPDU) RIFS, STBC, LDPC MIMO Power Save; 802.11ac Tx beamform; MRC |
| IoT Radio | Bluetooth Low Energy (BLE) v4.2, and IEEE 802.15.4 compliant |
| Physical Characteristics | |
| Dimensions | AP 7632i: 6.3 in x 1.7 in, 161 mm diameter x 48.5 mm AP 7632e: 6.9 in x 5.0in x 1.2 in, 175 mm x 128 mm x 26.9 mm |
| Weight | AP 7632i: .7 lbs, .3 kg AP 7632e: 1.4 lbs, .6 kg |
| Housing | Plenum-rated housing (UL2043) |
| Available Mounting | WiNG bracket compatible, Extreme Multi-Tbar, keyhole slots, Wall04 |
| Configurations | Above drop ceiling, under ceiling or on wall |
| LEDs Activity Indication | 2 top-mounted LEDs; activity indication |
| LAN Ethernet | 1x IEEE 802.3 Gigabit Ethernet auto-sensing |
| Antenna | AP 7632-680B30: 4dBi - 2.4 GHz band; 6 dBi - 5GHz band, IoT 4.1 dBi |
| Antenna Connectors | AP 7632-680B40: Three RP SMAs: 2 dual band ports, 1 BTLE |
| Console Port | RJ45 |
| USB Port | USB2.0 for purpose-built modules. Available on AP-7632-680B40 model |
| Warranty | Limited Lifetime Warranty |
| User Environment | |
| Operating Temperature | AP-7632-680B30: 32° F to 104° F/ 0° C to 40°C AP-7632-680B40: -4° F to 131° F/ -20° C to 55°C ambient temperature anywhere -4° F to 140° F/ -20° C to 60° Cambient temperature near sea level |
| Storage Temperature | -40°F to 158°F/-40°C to 70°C |
| Operating Humidity | 0% - 95% (noncondensing) |
| Electrostatic Discharge | AP-7632-680B30: 15kV air, 8kV contact AP-7632-680B40: 12kV air, 6kV contact |
| Power Specifications | |
| Operating Voltage | PoE-PD: 48VDC; Wall brick: 12VDC |
| Operating Current | PoE-PD: 230mA at 48V; Wall brick: 1.5a |
| PoE-PD Class | 802.3af, 802.3at |
| Power Consumption | AP 7632i Typical: 11 W, Idle (Radios ON): 4.8 W AP 7632e Typical: 10 W, Idle (Radios ON): 4.8 W w/o USB consumption |
| Networking Specification | |
| Layer 2 and Layer 3 | Layer 3 routing, 802.1q, DynDNS, DHCP server/client, BOOTP client, PPPoE and LLDP |
| Security | Stateful Firewall, IP filtering, NAT, 802.1x, 802.11i, WPA2, WPA Triple Methodology Rogue Detection: 24x7 dual-band WIPS sensing, on-board IDS, and secure guest access (hotspot) with captive portal, IPSec, and RADIUS Server |
| Quality of Service | WMM, WMM-UAPSD, 802.1p, Diffserv, and TOS |
| Radio Specifications | |
| Wireless Medium | Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM), and Spatial Multiplexing (MIMO) |
| Network Standards | IEEE 802.11a/b/g/n/ac, 802.11d and 802.11i WPA2, WMM, and WMM-UAPSD, L2TPv3, Client VPN, MESH (released in a future version of WiNG), Captive Portal server, Support SNMP v1, v2c, v3 |
| Data Rates Supported | 802.11b/g: 1,2,5.5,11,6,9,12,18,24,36,48 and 54 Mbps; 802.11a: 6,9,12,18,24,36,48, and 54 Mbps; 802.11n: MCS 0-15 up to 300 Mbps; 802.11ac on 2G VHT MCS0-9 up to 400Mbps, 802.11ac on 5G: VHT MCS 0-9 up to 867 Mbps |
| Operating Channels* | 2.4 GHz band: channel 1 through channel 13 5 GHz band: channel 36 through channel 165 |
| Antenna Configuration | 2X2 MIMO (transmit/receive on both antennas). Transmit power adjustment 1dB increment |
| Operating Frequencies | 2412 to 2472 MHz, 5180 to 5825 MHz |
| Performance and Capacity | |
| Concurrent Users | 256 per radio |
| SSID | 8 per radio, 16 per AP |
| Certifications | |
| Wi-Fi Alliance (WFA) | 802.11a/b/g/n/ac |
| Bluetooth | Bluetooth SIG listed |
| Regulatory | |
| Product Safety Certifications | IEC 60950-1, EN 60950-1, UL 60950-1, CSA 22.2 No.60950-1-03 AS/NZS 60950.1, RoHS Directive 2011/65/EU |
| Radio Approvals | FCC CFR 47 Part 15, Class B, ICES-003 Class B, FCC Subpart C 15.247, FCC Subpart E 15.407, RSS247, EN 301 893, EN 300 328, EN 301 489 1 & 17, EN 50385, EN 55032 (CISPR 32), EN 60601-1-2, AS/NZS4268 + CISPR32 |
| Maximum Total Conducted Transmit Power One Antenna Tx | |
| Internal Antenna (AP-7632-680B30-xx) | 2.4 GHz Band: 23 dBm, 5 GHz Band: 23 dBm, BLE: 3 dBm |
| External Antenna (AP-7632-680B40-xx) | 2.4 GHz Band: 20 dBm, 5 GHz Band: 20 dBm, BLE: 3 dBm |
| Maximum Total Conducted Transmit Power Two Antennas Tx | |
| Internal Antenna (AP-7632-680B30-xx) | 2.4 GHz Band: 26 dBm, 5 GHz Band: 26 dBm, BLE: 3 dBm |
| External Antenna (AP-7632-680B40-xx) | 2.4 GHz Band: 23 dBm, 5 GHz Band: 23 dBm, BLE: 3 dBm |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| AP-7632-680B30-WR | WiNG 802.11ac Indoor Wave 2,MU-MIMO Access Point, 2x2:2, Dual Radio 802.11ac/abgn, internal antenna | $CALL |
| Model | Description | Prices From | |
|---|---|---|---|
| Extreme ExtremeWorks 97000-AP510C-CE | ExtremeWorks, Software and TAC, Service, 24 x 7, Technical, Electronic Service, 1 Year, 97000-AP510C-CE | $68.75 | View Product |
| Extreme ExtremeCloud IQ Global Select Support | Renewal Only. | $254.38 | View Product |
| Extreme Support 97004 EW NBD 37112- 37114 AP7632 | Extreme Support 97004 EW NBD 37112- 37114 AP7632 | $151.25 | View Product |
| Filename | Size | ||
|---|---|---|---|
![]() |
AP7632 Data Sheet.pdf | 784KB | Download |
![]() |
Wing AP7632 Quick Referrence Guide.pdf | 1MB | Download |
