POSMarket SKU: Z11239

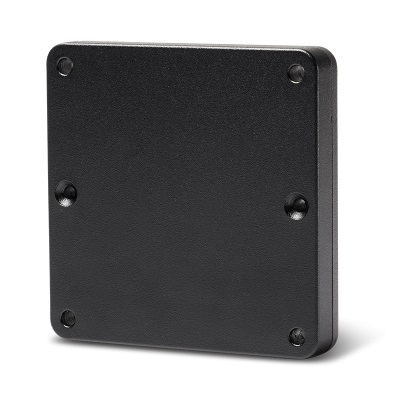

Kit, Power-over-Ethernet (PoE) adapter for I-Series 2.0 for Android
| Part Number(s) | E413396 |
| Enclosure Color | Black |
| POE Standard Protocols | IEEE802.3, 10BASE T/1000BASE-T IEEE802.3u,100BASE-TX, IEEE802.3at, Power over Ethernet |
| Transmission Media | RJ-45 (10/100BASE-T): Cat.3, 4, 5 UTP/STP RJ-45 (1000BASE-T): Cat.5, 5e, 6,7 UTP/STP |
| Efficiency | Isolated power supply efficiency >85% |
| Customizable Settings | Panel Brightness Wi-Fi/ Bluetooth Audio USB Port1 (type A) USB Port2 (type C) MicroUSB3 MicroUSB4 MicroUSB5 MicroUSB6 GPIO External Display |
| Dimensions | Without 21.5'' spacer: 3.46'' x 3.46'' x 0.74'' / 88 mm x 88 mm x 18.8 mm With 21.5'' spacer: 4.53'' x 4.53'' x 0.74'' / 115 mm x 115 mm x 18.8 mm |
| Shipping Box Dimensions | Single box: 6.57'' x 6.45'' x 2.52'' / 167 mm x 164 mm x 64 mm |
| Mounting Options | VESA 75mm and 100mm |
| Weight (Unpackaged) | Without 21.5'' spacer: 0.218 lbs / 0.099 kg With 21.5'' spacer: 0.262 lbs / 0.119 kg |
| Weight (Packaged) | 2.87 lbs / 1.3 kg |
| Temperature | Operating: 0 C to 40 C (32 F to 104 F) Storage: -20 C to 70 C (-4 F to 158 F) Protection: +/-15KV of Ethernet isolation for ESD/Surge protection OTP, SCP, OCP protection Isolation: 1500Vrms |
| Humidity | Operating: 20% to 80% Storage: 5% to 95% |
| Warranty | 2-year |
| Regulatory approvals and declarations | UL/cUL (US) FCC (US) IC (Canada) CE (Europe) CB (International) VCCI, MIC (Japan) RCM (Australia) |
| What's in the Box | POE Device Quick Install Guide 2x M3x8mm flat head screws (in a ziplock bag, labeled) 4x M4x12mm flat head screws (in a ziplock bag, labeled) 4x M4x12mm pan head screws (in a ziplock bag, labeled) 1x POE Spacer Hot plug warning label |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| E615169 | Power-over-Ethernet (PoE) adapter for I-Series 2.0 for Android kit | $233.75 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Extreme Outdoor 802.3AT PoE 1 Port Midspan | ExtremeWireless 802.3at PoE Injector - 30 watt - 1 port midspan - outdoor | $962.50 | View Product |
| Extreme Single Port, 1 Gigabit 802.3at PoE Midspan | Extreme PD-9001GR-ENT Extreme Networks Accessories, Miscellaneous Single Port 1 Gigabit 802. | $233.75 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
ELO PoE DS | 143KB | Download |
