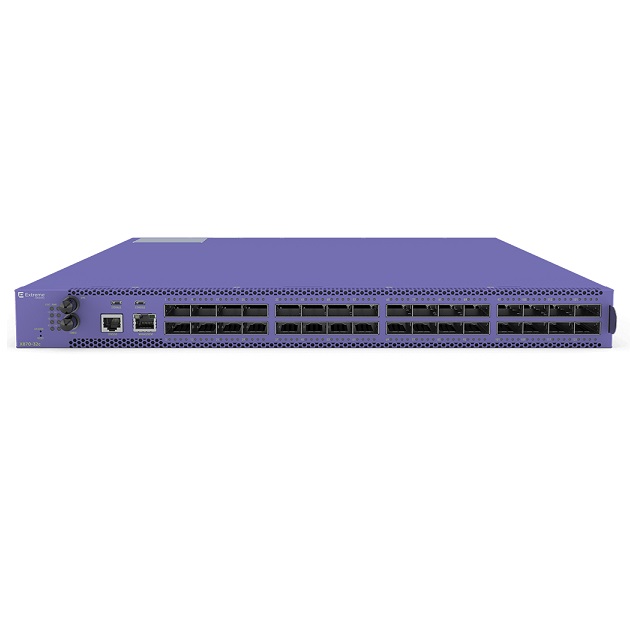

Extreme SWITCH X870-32C-BASE
POSMarket SKU: Z15097
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.
100Gb Spine Switch and High Density 10Gb Leaf Switch
Product Overview
The ExtremeSwitching X870 product family are high-density, purpose-built 100Gb switches designed for high-performance enterprise and cloud data centers. With 32 QSFP28 ports, the X870 can support a range of interface speeds, including 10Gb, 25Gb, 40Gb, 50Gb and 100Gb, all in a compact 1RU form factor. This enables the ExtremeSwitching X870 to be flexibly deployed in either spine/leaf or high-density top of rack architectures. Low-latency cut-through switching and an advanced feature set make it ideal for high-performance data center applications.
Environmental Certification
- EU RoHS
- EU WEEE
- China RoHS
ExtremeXOS Intelligent L2/L3 Switching
The ExtremeSwitching X870 family supports sophisticated, intelligent Layer 2 switching, as well as Layer 3 IPv4/IPv6 routing including policy-based switching and routing. The X870 Series simplifies network operation with the ExtremeXOS modular operating system, which is used across a wide range of ExtremeSwitching networking products.
Flexible Deployment Options
The X870 Series can handle a wide range of high bandwidth applications, including high-density 10Gb top-of-rack aggregation, emerging 25Gb and 50Gb Ethernet, and 100Gb spine/leaf fabric deployments.
Product Specifications
| Manufacturer | EXTREME NETWORKS |
| Brand | EXTREME |
| Product Name | X870-32C-Base |
| Manufacturer Part Number | 17800 |
| Product Type | Ethernet Switch |
| Manageable | Yes |
| Ethernet Technology | 100 Gigabit Ethernet |
| Number of Total Expansion Slots | 32 |
| Product Family | X870 |
| Stack Port | Yes |
| Media Type Supported | Optical Fiber |
| Redundant Power Supply Supported | Yes |
| Expansion Slot Type | QSFP28 |
| Form Factor | Rack-mountable |
| Power Source | Power Supply |
| Layer Supported | 3 |
| Environmentally Friendly | Yes |
| Compatible Rack Unit | 1U |
| Modular | Yes |
| Uplink Port | No |
| Shared SFP Slot | No |
| Port / Expansion Slot Details | 32 x 100 Gigabit Ethernet Expansion Slot |
| Height | 1.7'' |
| Width | 17.3'' |
| Depth | 20.5'' |
| Product Series | X870 |
| Product Model | X870-32c |
| Network Technology | 100GBase-X |
| Limited Warranty | 1 Year |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| 17800 | X870-32c Base unit 32 10Gb/25Gb/40Gb/50Gb/100Gb QSFP28 ports unpopulated ExtremeXOS Advanced Edge License 2 unpopulated power supply slots 6 unpopulated fan module slots | $71,582.50 | Add to Cart | |
| 17810 | X870-96x-8c Base unit 96 10Gb ports on 24 QSFP28 ports unpopulated 8 10Gb/25Gb/40Gb/50Gb/100Gb QSFP28 ports unpopulated ExtremeXOS Advanced Edge License 2 unpopulated power supply slots 6 unpopulated fan module slots | $56,168.75 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Extreme 100GB Direct Attach Passive Copper Cable | 100Gb QSFP28-QSFP28 Direct attach passive copper cable 1m | $767.25 | View Product |
| Extreme Extreme Power Supply AC 770W | 770W AC Power Supply, Front to Back Airflow. | $1,377.75 | View Product |
| Extreme X870 Fan Module Front to Back Airflow | Keep your system at the optimum temperature with the Extreme Networks Fan Unit. | $474.38 | View Product |
| Extreme X870 Fan Module Back to Front Airflow | X870 Fan Module Back-to-Front airflow (FAN ASSY 1x229.2CFM12BF). | $474.38 | View Product |
| Extreme ExtremeWorks 97000-17800 | ExtremeWorks, Software and TAC, Service, 24 x 7, Technical, Electronic Service, 1 Year, 17800 | $7,748.13 | View Product |
| Filename | Size | ||
|---|---|---|---|
![]() |
Extreme X870 Data Sheet | 2MB | Download |
