ZF Electronics Snap Switch

$1.69 (incl. GST)

POSMarket SKU: Z20322

CSDK1G-TRD1: DK-Series, 2A 12V, SPDT PCB R Lever

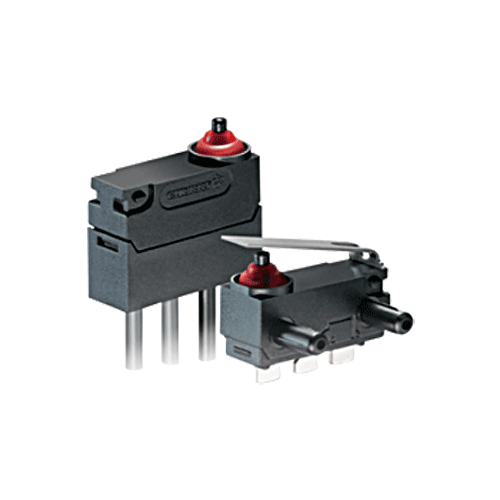

Snap Switch - Sealed DK Series

Product Rating
Product Overview
  • Sealed sub-subminiature switch IP6K5 sealed (IP6K7 on request)
  • Switching current from 5 mA up to 2 A at 12 VDC
  • Actuation possible vertically or with auxiliary actuator
  • High contact stability thanks to AuAg crosspoint contacts
  • Operating temperature up to 105 °C
  • Mechanical life min. 500,000 actuations
  • Wide variety of terminal options, including leads
Product Specifications
Brand ZF Electronics
Electrical
Temperature Rating -40°C to +85°C
Flammability Rating N/A
Materials
Base PBT
Cover PBT + ASA
Actuator POM (+85°C)
Auxiliary Actuator Stainless Steel
Internal Actuator Stainless Steel
Spring Stainless Steel
Moving Blade Gold-Plated Beryllium Copper
Terminals Silver-Plated Copper-Zinc
Contacts Gold Crosspoint
Gasket Silicon
  • ASA = Acrylonitrile-styrene-acrylicester
  • PBT = Polybutyleneterephthalate
  • POM = Polyacetal
    • ModelDescriptionPriceStock
    CSDK1G-TRD1 DK-Series, 2A 12V, SPDT PCB R Lever $1.69
    Call
    		 Add to Cart
    Product Accessories
    Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
    FilenameSize
    PDF Document DK series Subminiature Switches Datasheet 363KB Download
