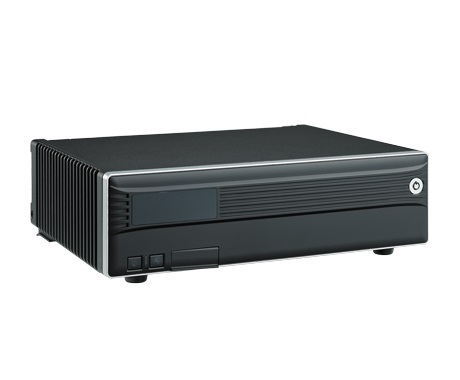

FEC BP-566
POSMarket SKU: Z12595
BP-500 is an advanced POS PC that enables incredible performance and reliability to retail environments. BP-500s innovative design allows for access to key components without detaching any peripherals, taking downtime to a minimum and ensures fast service and simple upgrades.
Product Overview
- Intel Q170 Chipset (Kaby Lake)
- Intel i3-7101TE 3.4GHz Dual Core CPU (Raid Enable)
- RAM: 8GB (up to 32GB, 2 x 260pin DDR4/L slot)
- 128GB M.2 SATAIII (2 x 2.5 inch SATA 3.0 Drive Bay)
- 4 x Serial port, DB9(RI/5V/12V)
- 4 x USB port (2x2.0, 2x3.0)
- 1 x 12V RJ11 Cash drawer port
- 1 x Line-out, 1 x Mic In
- 1 x RJ45 Giga Lan
- 1 x VGA port (5V/12V provided), 1 x DVI-I
- 1 x PS2
- 2 x 12V DC out power Jack (can be changed to Riser Card PCI-e)
Optional Port: - +24V powered USB PLUS 3 x 12V powered USB
- 250W Internal Power supply
- Housing color: Black or white
- Aluminum Die-casting + Plastic
- Windows 10 IOT Enterprice 2016 Value
Product Specifications
| System Memory | 4GB Standard, Maximum 32GB (2x260-pin DDR4) |
| Power Supply | 250W Internal ATX Power Supply |
| Storage Device | 2 x 2.5" SATA HDD or SSD , 1 X M.2 |
| Chipset | Intel H110 |
| Construction | Aluminum Die-casting + Plastic |
| Housing | Color Black with Silver Trim or White with Silver Trim |
| Serial Port | 4 x External: COM 1, COM 2, COM 3, COM 4 (DB9) |
| USB Port | 6 x External (4 Rear + 2 Front) |
| Cash Drawer Port | 1 x RJ11 (12V) |
| Keyboard / Mouse | 1 x PS/2 |
| LAN Port | 1 x RJ45 Giga LAN |
| Audio Port | 1 x Line Out, 1 x Mic In |
| Video Port | 1 x VGA, 1 x DVI-I |
| DC Output | 2 x 12V DC Jack 2.5 mm |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| PCFIBP566001 | BP-566; Intel Q170 Chipset (Kaby Lake), Intel i3-7101TE 3.4GHz Dual Core CPU (Raid Enable), RAM: 8GB, 128GB M.2 SATAIII, Windows 10 IOT Enterprice 2016 Value | $2,326.50 | Add to Cart |
Product Accessories
| Filename | Size | ||
|---|---|---|---|
 |
FEC BP-566-BP567 Spec | 7MB | Download |
Product Videos
Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.
