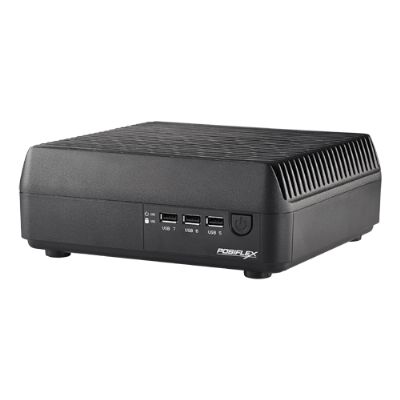

Posiflex TX-5003
POSMarket SKU: Z2002
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.
TX-5000 Series is the latest high-end fan-free POS Box. Incorporating leading CPU technology - 4th generation Intel Haswell processor, TX-5000 Series provides unmatched performance, working multiple programs with ease.
Product Overview
FEATURES
- High Performance 4th generation Intel Haswell i3 CPU (optional up to Core i7)
- Standard with 128G SSD (other options available)
- 4 GB DDR3 RAM expandable to 16GB
- Fanfree Design
- Small footprint
- Aluminium die-cast housing for efficient cooling
- Powered Serial ports
- VGA and DP Port
- Mini PCIe slot
- Optional Touch monitors, Pole displays available
Product Specifications
| CPU | Intel Haswell core i3-4330TE -2.4GHz (4M cache) |
| Memory | DDR3 1333/1600 MHz, SO-DIMM socket x 2, max 16 GB, default 2 GB |
| Storage device(s) | In Australia Standard with 32 GB SSD, can also be purchased with a 320 GB SATA HDD (Special Order) or larger SSD Drives |
| I/O Ports | 6 x RS-232 Ports (4 x DB9 standard, optional COM5/COM6 with cable from Service window) with 5V/12V Support 1 x Parallel port 8 x USB Ports 2 x USB 3.0/2.0 and 6 x USB 2.0 1 x 10/100/1000Mb Ethernet Port 1 x VGA Port (D-Sub with 12V Power for Posiflex LCD Monitors) 1 x DP Port 1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable) 1 x Mini-PCIe Slot |
| Audio | Internal 2W Speaker (optional) 1 x Mic-in 1 x Line Out |
| OS Support | Windows 7 / POSReady 7 / Windows Embedded 8.1 Industry / Linux per request |
| Environmental Sealing | N/A |
| Operating Environment | 0 ~ +50 C, 20 ~ 90% RH with SSD 0 ~ +40 C, 20 ~ 90% RH with HDD |
| Storage Environment | -20 ~ +70 C, 10 ~ 90% RH |
| Power Supply | 12V DC Power Adapter (80W) |
| External Dimensions (WxDxH) | 220mm x 202mm x 83mm |
| Weight | 2.75 Kg |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| TX500022614200 | TX-5000 POS Box. Intel Haswell Core i3 2.4GHz CPU, 8GB RAM, 128GB SSD, 4 x Serial, 8 x USB, 1 x Parallel, 1 x LAN, 1 x PCI Slot, 1 x Cash Drawer port, Windows POSReady 7 64 Bit | $1,730.78 | Add to Cart | |
| TX50002A614200 | TX-5000 POS box. Intel Haswell core i3-4330TE , 8GB RAM, 120GB SSD,4S, Windows 10 IoT LTSC 64 bit | $1,629.38 | Add to Cart |
Product Accessories
| Filename | Size | ||
|---|---|---|---|
 |
Posiflex TX-5000 5000e Brochure | 241KB | Download |
|
Posiflex TX 5000 TX 5000E Datasheet | 538KB | Download |
