POSMarket SKU: Z20226
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

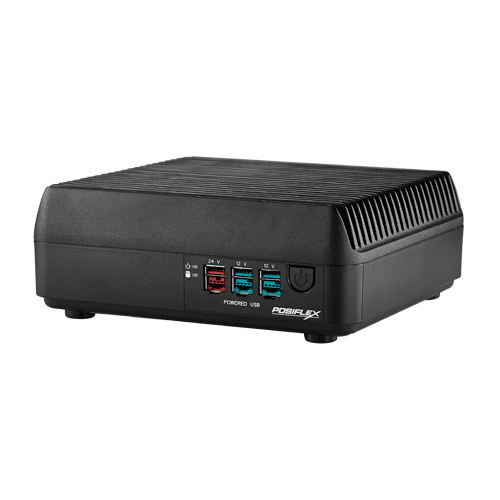

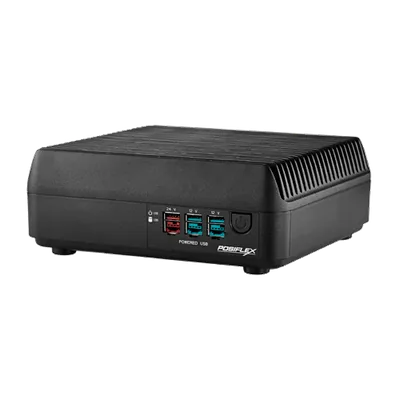

Powerful Fanless POS Box- i5 8G 128G SSD WIN10 IoT
| TX-5300 | |
| System Configuration | |
| Processor | Intel Coffee Lake Core i3-8100T; Intel Coffee Lake Core i5-8500T |
| System Memory | DDR4 SO-DIMM x 2, max. 32 GB |
| Storage Device | SATA x 2 + M.2 x 1 (supporting SATA) |
| RAID Function | N/A |
| Intel vPro Support | N/A |
| TPM | N/A |
| Power Supply | 12V/80W |
| OS support | Windows 10 IoT 64 bit / Linux per request |
| I/O Expansion | |
| Serial Port | 6, DB9 x 4, COM5/COM6 via optional cable from service window, 5V/12V support on all COM ports |
| Parallel Port | Yes |
| Standard USB Port | 7, USB 3.0 x 4 + USB 2.0 x 3 |
| PoweredUSB Port | N/A |
| LAN Port | 10 / 100 / 1000 Mb x 2 |
| Display Port | VGA x 1, 12V support for Posiflex monitors; HDMI x 1 |
| CR Port | 1, control 2 CR via optional Y-cable, support 24V |
| PS/2 Port | N/A |
| Audio | Internal 2W speaker x 1 + Mic-in/Line-out |
| Expansion Slot | M.2 slot x 1 |
| Physical Dimension | |
| Dimension (W x D x H in mm) | 220 x 202 x 83 |
| Weight (N. W. in kg) | 2.75 |
| Environmental | |
| Operating Condition | 0°C - 50°C, 20%RH - 90%RH (Equipped with SSD) |
| Storage Condition | -20°C - 70°C, 10%RH - 90%RH |
| Built-in Option | |
| WiFi | M.2 WiFi/BT module |
| Tamper Switch | N/A |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| TX5300E1362234 | TX-500R Series POS box with Intel Coffee Lake core i5-8500T up to 3.5GHz(9M Cache), 8GB DDR4, 128GB SSD,4S, 4xUSB3.0, 2 x 12V USB, 1 x 24V USB, 1 parallel, 1 x VGA, 1 x HDMI, 1 x CR, 1 x M.2 slot, 1xLAN, 1x line out/mic in, | $2,305.53 | Add to Cart | |
| TX5300E126223000 | TX-500R series Fanless POS PC Intel Coffee Lake core i5-8500T up to 3.5GHz(9M Cache), 8GB DDR4, 128GB SSD,4S, 4xUSB3.0, 2 x 12V USB, 1 x 24V USB, 1 parallel, 1 x VGA, 1 x HDMI, 1 x CR, 1 x M.2 slot, 1xLAN, 1x line out/mic i | $CALL |
| Filename | Size | ||
|---|---|---|---|
 |
Fanless POS Box User Manual.pdf | 439KB | Download |
|
Powerful Fanless POS Box brochure.pdf | 2MB | Download |
