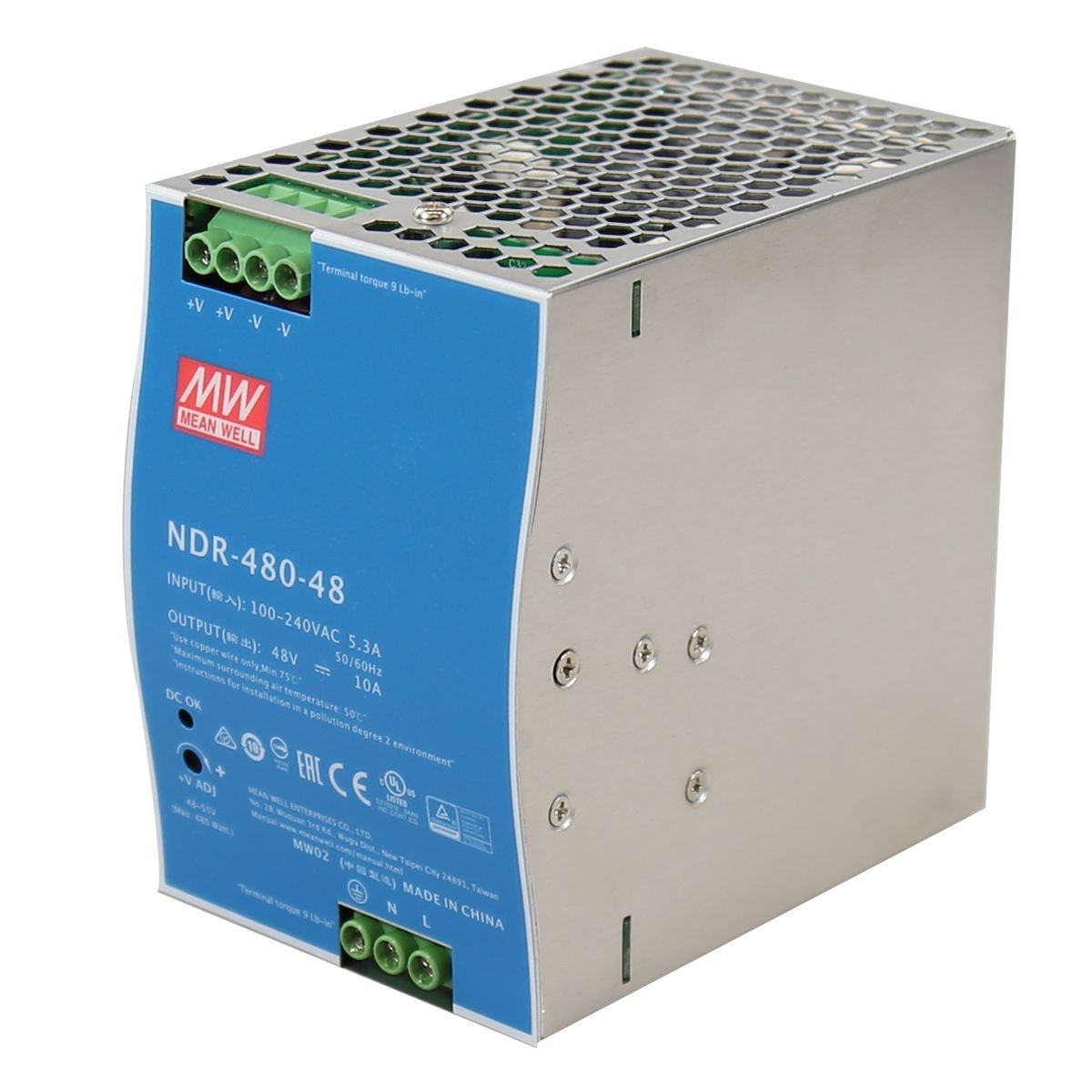

Mean Well CSD-NDR480-48

Product Specifications

Mean Well NDR Series Single Output Industrial DIN Rail Power Supply Economical and slim, the NDR range of power supplies (PSU) can be installed on TS-35/7.5 or TS-35/15 mounting rails and have been designed to allow space saving within cabinets. The entire series conforms to EN61000-3-2 and has been designed with metal housing enhancing the PSUs power dissipation. The entire series can operate between -20°C and 60°C under air convection. Features and Benefits

Universal AC input/Full range

Short circuit/Overload/Over voltage/Over temperature protections

Can be installed on DIN Rail TS-35/7.5 or 15

Cooling by free air convection

UL 508 (industrial control equipment) approved

EN61000-6-2 (EN50082-2) industrial immunity level

100% full load burn-in test

3 years warranty

Built-in active PFC function (NDR-240and NDR-480) Product Application Information The NDR series PSU by Mean Well is ideal for use in industrial control systems, semiconductor fabrication equipment, factory automation and electro-mechanical apparatus. Why use a DIN Rail power supply? The flexibility of DIN Rail mounting systems enables quicker installation time as all devices are able to simply snap onto the metal rails. Power supplies can be easily organised on DIN Rails within enclosed wall boxes or in areas where there is limited space. Similar devices can be mounted next to each other reducing the amount of cabling required. Most power supplies are convection cooled so no cooling fans are needed. DIN Rail AC to DC power supplies are widely used in many automation, instrumentation and industrial applications. They are used to power a wide variety of DC operated devices including sensors, motors, actuators, solenoids, relays and many more.
