Tactical Power Products TP-RLB8-DP

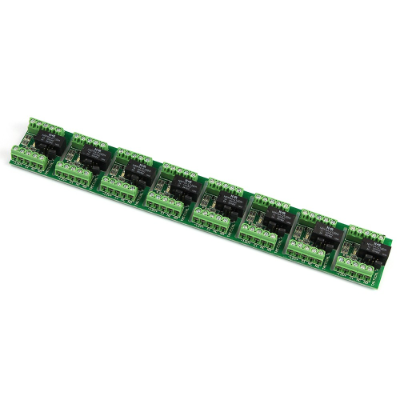

The 12Vdc powered TP-RLB8 relay board features a strip of eight (8) individual dual buffered, Double Pole / Double Throw (DPDT) Relays which share a common power rail. Each relay features a transistor buffered input which may be triggered by any positive DC voltage over 5Vdc or by 0Vdc. (Inputs are provided for + or - trigger). An onboard LED illuminates when the relay is triggered. Each relay segment is provided with a common pole link for each relay pole (DPDT=2 Poles) By setting this link, either +ve or -ve may be jumpered to the common of either relay pole.

Features

• Dual buffered input (+ trigger 5V-12Vdc or - trigger 0V)

• Relay contacts may be voltage free or jumpered to + or - ve

• May be separated into multiples or single units

• Power needs only needs to be applied to the first relay in the strip
