Inner Range IR-995204PE8
POSMarket SKU: Z17228

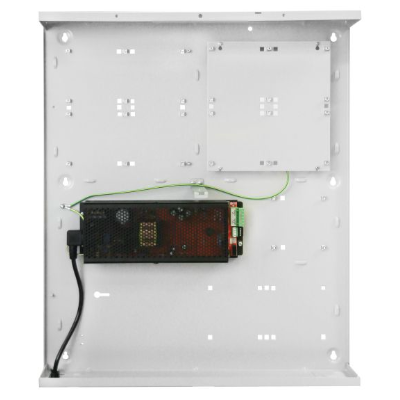

Integriti Wide Body Powered Enclosure with 8 Amp (6.5A + 1.5A) Power Supply
Product Overview
The 8A smart power supply provided in the 'powered' version can be used to power Integriti modules and associated devices such as detectors and auxiliary devices. It is a fully assembled, enclosed unit with a standard IEC power cord and does not require installers to be specially certified. It features a high reliability design that offers exceptional stability when used with the recommended battery type and is also compatible with proximity type reader heads.
Features
- 8 amp smart power supply included
- Flexible mounting options for all Integriti PCBs
- Accommodates up to 2 x 18Ah batteries
- Tamper protected, key lockable
- Low profile metal enclosure: 595 (H) x 510 (W) x 90mm (D)
Product Specifications
| General | |
| Manufacturer | Inner Range |
| Brand | Integriti |
| Packaged Quantity | 1 |
| Type | Wide Body Powered Enclosure |
| Enclosure Size | 595 (H) x 510 (W) x 90mm (D) |
| Voltage and current | 8 Amp |
| Cable Entry Points | |
| Top | 4 x 25mm Round Conduit Punch-outs 2 x 50x50mm Punch-out (with 25mm round inset) |
| Base | 1 x 50x50mm Punch-out (with 25mm round inset) 1 x Power Entry 1 x 25x50 IEC lead entry point (Entry plate included) |
| Back | Through wall cable entry behind main plate |
| Powered Versions | 2/3/8Amp See the Integriti 2/3/8Amp PSU Datasheets for PSU Specifications |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| IR-995204PE8 | Integriti Wide Body Powered Enclosure with 8 Amp (6.5A + 1.5A) Power Supply | $CALL |
Product Accessories
| Filename | Size | ||
|---|---|---|---|
 |
IR-995204xx Datasheet | 908KB | Download |
