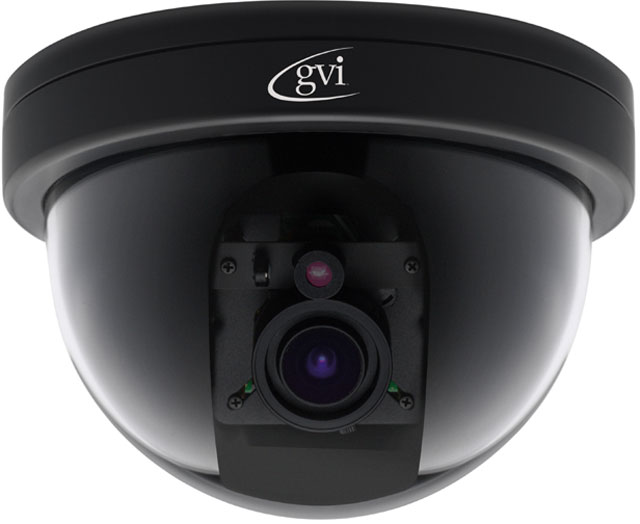

Samsung GV-FXDVFA40 Fixed Dome
POSMarket SKU: Z6202
The GV Series of fixed domes offer crisp clear images in a small package designed for interior surveillance. With a 13 interline color CCD Super HAD with DSP Digital Signal Processing the integrator can count on true and clear images consistently.The Samsung GV-FXDVFA40 Fixed Dome comes standard with backlight compensation CCD defect compensation and 480 TV horizontal lines of resolution. For a high quality color fixed dome with varifocal 4.09.0 mm F1.6 auto iris lens choose the GV-FXDVFA40 Fixed Dome.
Product Overview
The GV Series of fi xed domes offer crisp clear images, in a small package designed for interior surveillance. With a 1/3'' interline color CCD (Super HAD) with DSP (Digital Signal Processing), the integrator can count on true and clear images consistently. The GV-FXDVFA40 comes standard with backlight compensation, CCD defect compensation, and 480 TV horizontal lines of resolution. For a high quality color fi xed dome with varifocal 4.0~9.0mm F1.6 auto iris lens, choose the GVFXDVFA40 dome.
FEATURES
- High quality Camera
- 4'' Dome bubble
- 1/3'' Super HAD color CCD
- 480 TV lines resolution
- 0.5 lux
- Varifocal lens 4.0mm ~ 9.0mm
- 24VAC Operation
- Line Lock Synchronization
- External screw connection
- DC Auto Iris Lens
- CCD Defect Compensation (Max. 4 Point)
- Auto Backlight Compensation
- Secure Dome Locks
Product Specifications
| Total/Effective Pixels: | 380K |
| Pick-up Device: | 1/3- inch interline color CCD (Super HAD) |
| Lens: | Vari-focal lens 4.0 ~ 9.0 F1.6 Auto Iris Lens |
| Iris: | Electronic Shutter Iris |
| Signal Process: | Digital Signal Process (CxD3117R) |
| Scanning System: | 2:1 Interlace |
| Sync. System: | External (Auto) |
| Scanning Frequency: | 59.94Hz (VD) |
| Horizontal Resolution: | 480 TV Line |
| S/N Ratio: | More than 48dB |
| Standard Illuminance: | 2000 lux (3200 K) |
| Sensitivity (1/3 Output): | 0.5 lux (F:1.2) |
| Video Output Signal: | 1 Vp-p Composite (75 ohm) |
| Gain Control: | Auto |
| Shutter Speed: | Electronic Shutter (1/60 ~ 1/10000) |
| White Balance: | Auto |
| Back Light: | Compensation Auto, On/Off |
| Power Source: | Input: AC 24V |
| Power Consumption: | 3W |
| Operating Temp.: | -10 C~50 C/14 F-122 F (Humidity: 0%RH~60%RH) |
| Storage Temp.: | -20 C- 60 C/-4 F-140 F (Humidity :0%RH~85%RH) |
| Weight: | 261g / 0.6 lb |
| Dimensions | : 100mm (Diameter) x 91mm(H), 121.5mm (Base Diameter) / 3.9€ (Diameter) x 3.6€ (H), 4.7€ (base diameter) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| SD-POS-VBM | Display POS Multi Black | $236.50 | Add to Cart |
Product Accessories
| Filename | Size | ||
|---|---|---|---|
 |
Samsung GV-FXDVFA40 Datasheet | 67KB | Download |
