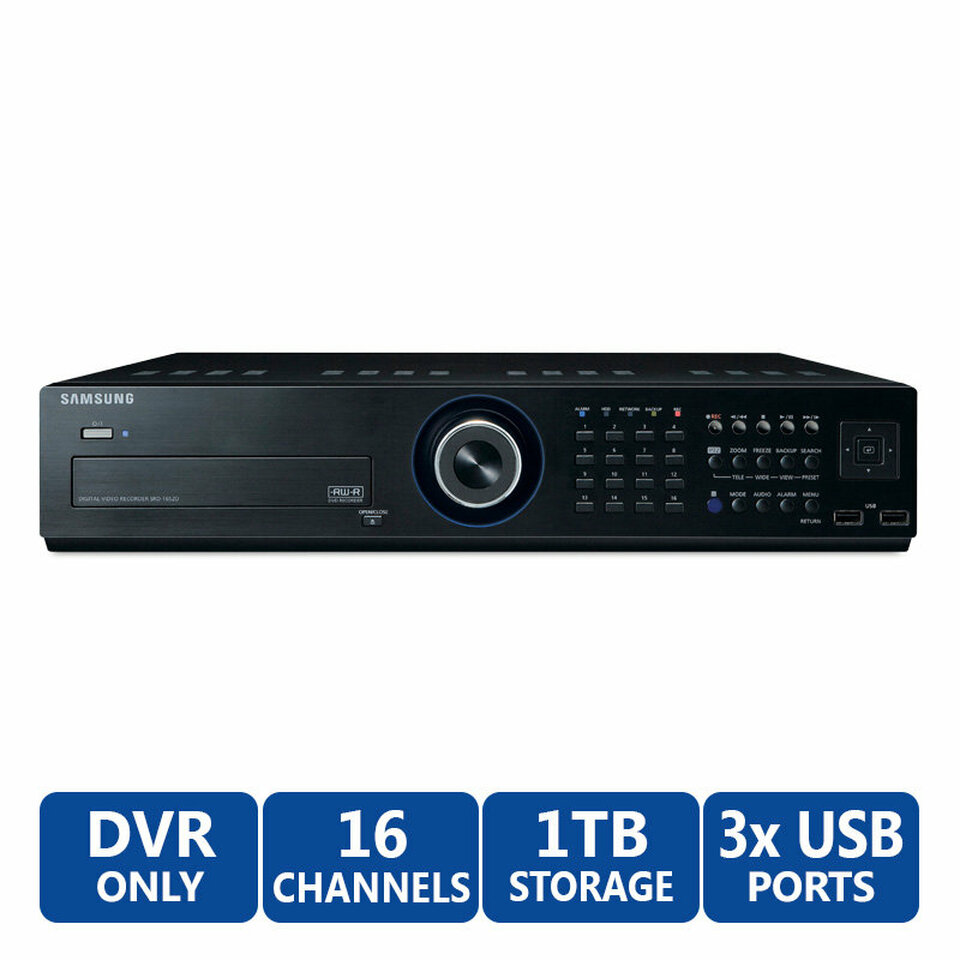

Samsung SRD-1650DC
$CALL
POSMarket SKU: Z6111
SRD-1673D-8TB: SRD-1650DC,16CH PREM DVR 650TVL 8TB 1080P HD HDMI OUT
Combined BNC and VGAHDMI video output for main display SRD-1650DC is a high performance 16 channel recording solution with embedded Linux and H.264 codec technology. This DVR records up to 480400 NTSCPAL fps at CIF resolution. The SRD-1650DC comes equipped with up the coax support feature and multiple RS-485 protocol support.
Product Overview
The Samsung SRD-1650DC-1TB H.264 16ch DVR 480fps 500gb Storage provides a broad range of features, from the H.264 compression technique, to a massive storage and back-up capacity of 500 GB. Substantial video content can be stored on up to 5 internal Hard Disk Drives. The HDD/DVD SATA interface enables quick and reliable data transfer rates. Another appealing inclusion is the integrated web viewer.
The SRD-1650DC-1TB is a high performance 16 channel recording solution, that gives clearer images using the H.264 codec technology. This DVR records up to 480 fps at CIF resolution. The DVR also comes equipped with the coax support feature and multiple RS-485 protocol support. It supports video output display formats like BNC and VGA/HDMI. The Samsung SRD-1650DC-1TB H.264 16ch DVR 480fps 500gb Storage also sends out email notifications of events.
Key Features:
The SRD-1650DC-1TB is a high performance 16 channel recording solution, that gives clearer images using the H.264 codec technology. This DVR records up to 480 fps at CIF resolution. The DVR also comes equipped with the coax support feature and multiple RS-485 protocol support. It supports video output display formats like BNC and VGA/HDMI. The Samsung SRD-1650DC-1TB H.264 16ch DVR 480fps 500gb Storage also sends out email notifications of events.
Key Features:
- 16ch Real-Time Video Input: supports 16 CCTV security cameras
- H.264 Video Compression: less disk space and faster file transfer
- Recording at 480 fps: clear, high quality images
- 1TB Internal Hard Drive: data storage and back-up
- Built-in Web Viewer: view data anywhere, anytime
Product Specifications
| Display | |||||||||||||
| Video Inputs | 16 x Composite video 0.5 to 1 Vpp, 75 ohm automatic termination | ||||||||||||
| Video Resolution | NTSC: 704 x 480 / PAL: 704 x 576 | ||||||||||||
| Live Frame Rate | NTSC: 480 fps / PAL: 400 fps | ||||||||||||
| Live Resolution | NTSC: 704 x 480 / PAL: 704 x 576 | ||||||||||||
| Multi-Screen Display | 1 / 4 / 6 / 8 / 9 / 13 / 16 / PIP | ||||||||||||
| Performance | |||||||||||||
| Operating System | Embedded Linux | ||||||||||||
| Recording | |||||||||||||
| Compression | H.264 | ||||||||||||
| Record Rate (IPS) | NTSC: Up to 60 fps @ 704 x 480/ PAL: Up to 50 fps @ 704 x 576 | ||||||||||||
| Mode | NTSC: Manual, Schedule (Continuous / Event) /Event (Pre / Post), Time lapse (0.9 / 1.9 / 3.8 / 7.5 / 15 / 30 fps)
PAL: Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (0.8 / 1.6 / 3.1 / 6.2 / 12.5 / 25 fps) | ||||||||||||
| Overwrite Modes | Continuous | ||||||||||||
| Pre-Alarm | Up to 30 sec (5, 10, 20, 30 sec) | ||||||||||||
| Post-Alarm | Up to 6 hours (5, 10, 20, 30 sec, 1, 3, 5, 10, 20 min, 1, 2, 3, 4, 5, 6 hours) | ||||||||||||
| Search Modes | Date/Time, Event, Back up, POS | ||||||||||||
| Motion | |||||||||||||
| Playback Function | Fast forward / backward, Slow forward / backward, Step forward / backward/All search modes include preview function | ||||||||||||
| Network | |||||||||||||
| Transmission Speed | CIF: 480/400 fps | ||||||||||||
| Bandwidth | Up to 8 Mb/s Unlimited (8M) / 2 / 1.5 / 1 Mb/s / 800 / 600 / 500 / 400 / 300 / 200 / 100 / 50 kb/s | ||||||||||||
| Bandwidth Control | Selectable | ||||||||||||
| Streaming | H.264 (4CIF / 2CIF / CIF selectable) | ||||||||||||
| Remote Access | Search: 3 Live Unicast:10 Live Multicast:20 | ||||||||||||
| Monitoring | NET-i viewer, SmartViewer, Webviewer | ||||||||||||
| Smartphone | |||||||||||||
| Platform | Android, iPhone | ||||||||||||
| Protocol Support | RTSP/RTP (UDP), CGI, HTTP | ||||||||||||
| Transmission Speed | Wi-Fi: CIF Maximum 4 fps (single channel) / CIF Maximum 4 fps (Quad channel) 3G: CIF Maximum 4 fps (single channel) / CIF Maximum 4 fps (Quad channel) | ||||||||||||
| Maximum Number of Users | Live 1 | ||||||||||||
| Storage | |||||||||||||
| Internal HDD | Up to 5 SATA HDDs supported | ||||||||||||
| Storage Capacity | 500 GB built-in HDD | ||||||||||||
| External HDD | Up to 2 expansion bays (Up to 4 HDD each) | ||||||||||||
| Backup | Via DVD Writer | ||||||||||||
| File Format | BU (DVR player), EXE (Include player), AVI | ||||||||||||
| Security | |||||||||||||
| Password Protection | 1 Admin, 10 Group, 20 Users per 1 group, Users can be assigned authority for function | ||||||||||||
| Data Authentication | Watermark | ||||||||||||
| Interface | |||||||||||||
| Monitors | VGA: 1 x VGA 800 x 600, 1024 x 768, 1280 x 1024 resolution HDMI: 480p / 720p / 1080p resolution | ||||||||||||
| Audio | Input/Output: 16-channel line in (built-in 4-channel, option: audio extension cable) / 1-channel line out | ||||||||||||
| Alarm | Input / Output: Terminal 16 inputs (NO/NC), Terminal 4 relay outputs (NO/NC) Rating: 30 VDC / 2 A, 125 VAC / 0.5 A Remote Notification: Notification via e-mail | ||||||||||||
| Connections | Ethernet: 1 x RJ45 10/100/1000 Base-T USB: 3 x USB 2.0 ports (Front) | ||||||||||||
| Language | Korean, Japanese, Chinese, English, French, German, Spanish, Italian, Russian, Polish, Czech, Turkish, Netherlands, Portuguese, Swedish, Danish, Thai, Rumanian, Serbian, Croatian, Hungarian, Greek (22 languages) | ||||||||||||
| Minimum System Requirements | |||||||||||||
| OS | Windows XP Professional, Windows Vista, Windows 7 | ||||||||||||
| CPU | Intel Core 2 Duo 2.4 GHz or higher | ||||||||||||
| RAM | DDR PC-3200 1 GB or more | ||||||||||||
| VGA | Geforce 6200 or higher | ||||||||||||
| Electrical | |||||||||||||
| Input Voltage/Current | 100 to 240 VAC 10%, 50/60 Hz, auto-ranging | ||||||||||||
| Power Consumption | Maximum 60 W (with 1 HDD) | ||||||||||||
| Environmental | |||||||||||||
| Operating Temperature | 32 to 104 F (0 to 40 C) | ||||||||||||
| Humidity | 20 to 85% RH | ||||||||||||
| Physical | |||||||||||||
| Mounting | Rack mounting via included rack mount brackets | ||||||||||||
| Dimensions (W x H x D) | 17.32 x 3.46 x 16.80" (440.00 x 88.00 x 426.80 mm) | ||||||||||||
| Weight | Approximately 16.53 lb (7.50 kg) with hard disks | ||||||||||||
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| SRD-1673D-8TB | SRD-1650DC,16CH PREM DVR 650TVL 8TB 1080P HD HDMI OUT | $CALL |
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
| Filename | Size | ||
|---|---|---|---|
 |
SRD 1650dc Brochure | 2MB | Download |
