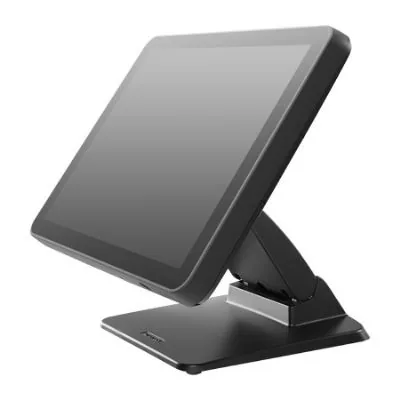

Advantech UPOS-211
POSMarket SKU: Z7562
This model is available in 4 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.
UPOS-211 is an all-in-one point-of-sale POS system that features a small footprint and dual-hinge design making it ideal for countertops and limited-space installations. Powered by an Intel Celeron J1900Core i processor UPOS-211 ensures high-performance computing and reliable data processing while supporting flexible customization for diverse applications.
Product Overview
UPOS-211 is an all-in-one point-of-sale (POS) system that features a small footprint and dual-hinge design, making it ideal for countertops and limited-space installations. Powered by an Intel Celeron J1900/Core i processor, UPOS-211 ensures high-performance computing and reliable data processing, while supporting flexible customization for diverse applications.
- 15 inch TFT LCD (LED backlight) with 5 wire Resistive or PCAP Touch
- Built-in Intel Celeron J1900 or Core-i5
- Stylish design with dual hinge, thinner boarder, slim screen
- Clear Cable Management
- Low power & fanless operation without heat ventilation holes
- Easy access to key components
- Easy peripheral mount design integrated
- Device Options: 2nd Display, MSR, VFD, RFID, Barcode Scanner
- Fully support WISE-PaaS/RMM
Product Specifications
| General | |
| Model | UPOS-211 |
| Connectivity | Bluetooth Wi-Fi (802.11 b/g/n) |
| Color | Black Orange White |
| Ingress Protection (IP) Rating | IP65 (Front Panel) |
| Processor System | |
| OS | POSReady 7, Windows 7 Pro, Windows 8.1 Pro, Windows 10 IoT, Linux Kernel 3.13, Android 4.4 or above |
| CPU | Intel Bay Trail Quad Core J1900, 2GHz up to 2.42GHz |
| RAM | 8 GB DDR3L, 1333 MHz |
| Storage Memory | 1 x 2.5 in. SATA HDD/SSD Bay/mSATA |
| Display | |
| Size | 15" TFT LCD(1024 x 768) |
| Brightness | 300 cd/m2 |
| Touch Screen | Projected Capacitive. Analog Resistive 5-wires / Glass Panel |
| Display Size | 15 in |
| Display Type | Thin Film Transistor (TFT) Liquid Crystal Display (LCD) |
| External Input/Output (I/O) Ports | |
| COM Port | 2 x COM (Up to 5 Maximum) |
| USB Port | 1 x USB 3.0 2 x USB 2.0 (Up to 7 x USB 2.0 Maximum) |
| Output Port | 1 x VGA/DP |
| Ethernet | 1 x RJ45 |
| Cash Drawer | 1 x RJ11 (12/24V) |
| Audio Port | 1 x Line Out 1 x Mic In |
| Speaker | 1 x 2W Speaker |
| Dimensions | |
| Width | 354 mm |
| Height | 327 mm |
| Depth | 237 mm |
| Weight | 5.2 kg |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| UPOS-211FP-BST403 | UPOS-211FP. 15" PCAP Touch screen, Intel i3 CPU, 4GB RAM, 128GB SSD, Windows 10 IoT, Black | $2,946.27 | Add to Cart | |
| UPOS-211DP-BST40J | UPOS-211DP. 15" PCAP Touch screen, J1900 CPU, 4GB RAM, 128GB SSD, Windows 10 IoT, Black | $2,067.67 | Add to Cart | |
| UPOS-211FP-BSL20-IM_BTO | UPOS-211FP. 15" PCAP Touch screen, Intel 3995U Celeron CPU, 8GB RAM, 128GB SSD, Windows 10 IoT, Black | $CALL | ||
| UPOS-211FP-BST40_BTO | UPOS-211FP. 15" PCAP Touch screen, Intel i3-6100U CPU, 8GB RAM, 128GB SSD, Windows 10 IoT, Black | $CALL |
| Model | Description | Prices From | |
|---|---|---|---|
| Cherry G80-11900 | Compact keyboard with built-in touchpad, The multifunctional TouchBoard is the perfect solution for limited spaces in situations requiring the functions of a mouse. | $248.19 | View Product |
| Cherry G81-8040 | Programmable compact keyboard with built-in magnetic card reader and optional barcode decoder. | $437.59 | View Product |
| Cherry SPOS G86-615xx | Freely programmable USB-keyboard with magnetic card reader (with encryption) and optional touchpad, mouse keys. | $233.82 | View Product |
| BlueTill Point of Sale | Bluetill is on a mission to help small businesses succeed in a world of giants. | $1,980.00 | View Product |
| Advantech UPOS211 2D SCANNER BLK | 2D Barcode scanner for UPOS211 | $511.50 | View Product |
| Advantech UPOS211 MSR + FINGERPRINT READER BLK | MSR+Fingerprint for UPOS-211,black | $536.25 | View Product |
| Advantech UPOS211 MSR + RFID READER BLK | MSR+RFID for UPOS-211,black | $363.00 | View Product |
| Advantech UPOS211 MSR PS2 BLK | MSR,PS2 for UPOS-211,black | $137.50 | View Product |
| Advantech UPOS211 CDU VFD REAR MOUNT BLK | VFD, rear mount for UPOS-211,black | $268.13 | View Product |
| Advantech UPOS211 CDU 10.1 INCH LCD BLK | UPOS211 CDU ,10.1 inch 2nd display, no touch, rear mount for UPOS-211, black | $426.25 | View Product |
| Advantech UPOS211 CDU 7 INCH LCD BLK | UPOS211 CDU ,7 inch 2nd display, no touch, rear mount for UPOS-211, black | $281.88 | View Product |
| Advantech UPOS211 WIFI 802.11 A B G N -REQ ANTENNA | Wifi Module,802.11 a/b/g/n,AR9382,Full size Mini PCIe | $75.90 | View Product |
| Advantech UPOS510 MSR + RFID Reader | 2-in-1 MSR (with RFID or FIngerprint or Smart Card or iButton) for UPOS Series. | $371.25 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
Advantech UPOS-211D Datasheet | 1MB | Download |
|
UPOS-211 User Manual | 5MB | Download |
|
7inch 2nd display installation guide | 907KB | Download |
