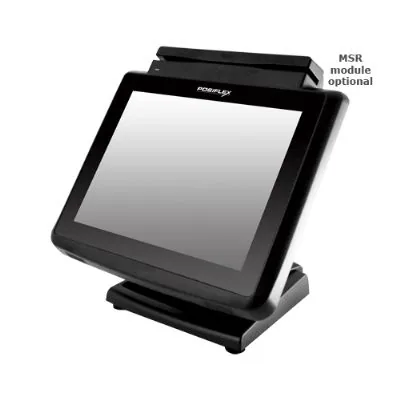

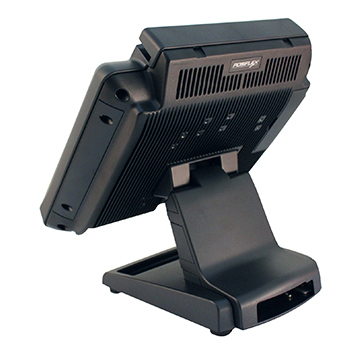

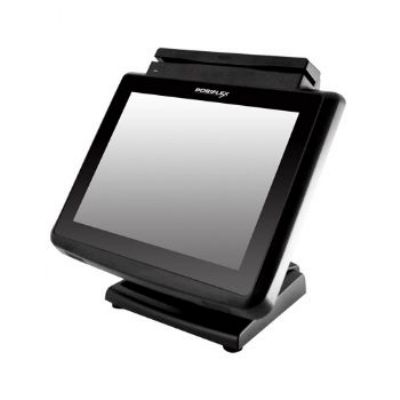

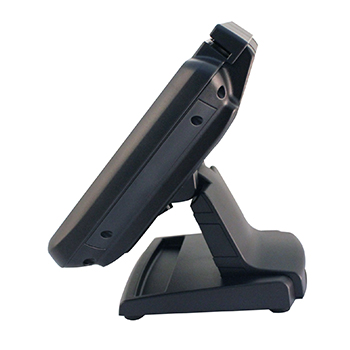

Posiflex KS-7410

$1,368.13 (incl. GST)

POSMarket SKU: Z1929

KS74101261230000: KS-7410. 9.7" PCAP Touch screen, J1900 Quad Core CPU, 4GB RAM, 64GB SSD, Windows POSReady 7 64 bit

The KS-7410 is a new Fan Free PCAP Touch Screen System which fits perfectly in a wide variety of POS applications. It has an integrated MSR (module is optional) uses a low power consumption Intel Pine View Dual Core Processor. This unit has a very small footprint.

Product Rating
Product Overview

PC POS Touch System
Fan Free Design
Cast Aluminium housing
9.7" LCD Display withPCAP multi touch Touch Screen
Equipped with Intel Bay Trail J1900 Quad Core, 2.00GHz/2.42GHz, 2M Cache CPUand DDR3L memory
64 GB or higher SSD Standard
4 GB RAM expandable to 8GB, in Australia 4GB default
Powered Serial ports
Optional MSR module, 2 Line Pole Display
Product Specifications
CPUIntel Bay Trail J1900, 4C, 2.00GHz/2.42GHz, 2M Cache
MemoryDDR3L 1333MHz SO-DIMM x 1, max. 8GB, default 4 GB
Storage device(s)In Australia Standard with 64 GB SSD in the Base stand, can also be purchased with a 500 GB SATA HDD (Special Order) or larger SSD Drives
Display9.7" TFT LCD Display
Resolution1024 x 768
Tilt Angle20° to 90°
Touch PanelTrue Flat PCAP touch with 10 Point multi touch
I/O Ports3 x RS-232 Ports (2 x DB9, 1 x 10 pin RJ50) with 5V Support
6 x USB 2.0 Ports
1 x VGA, 12V support for Posiflex monitors
1 x 10/100/1000Mb Ethernet Port
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
Extension slot for M.2 x 1 (NGFF2230 for optional WIFI/BT module supporting 802.11ac, 2.4GHz / 5GHz dual band)
AudioInternal 2W Speaker & Line out port
OS SupportPOSReady 7 / Windows 7 / Windows Embedded 8.1 Industry / Windows IoT / Linux per request
Operating Environment0 ~ +50 °C, 20 ~ 90% RH with SSD
0 ~ +40 °C, 20 ~ 90% RH with HDD
Storage Environment-20 ~ +70 °C, 10 ~ 90% RH
Power Supply12V DC Power Adapter (50W)
External Dimensions (WxDxH)260mm x 205mm x 266mm
Weight3.2 Kg
ModelDescriptionPriceStock
KS74101261230000 KS-7410. 9.7" PCAP Touch screen, J1900 Quad Core CPU, 4GB RAM, 64GB SSD, Windows POSReady 7 64 bit $1,368.13
< 10
 Add to Cart
ModelDescriptionPrices From
Cherry G86-62401 Full QWERTY Key Layout in compact 360mm Form Factor Combines maximum space efficiency with uncompromised Alpha Numeric Data entry. $220.76 View Product
Cherry G80-11900 Compact keyboard with built-in touchpad, The multifunctional TouchBoard is the perfect solution for limited spaces in situations requiring the functions of a mouse. $248.19 View Product
Posiflex MR-2000 MR Series Magnetic Stripe Card Reader. $171.88 View Product
Posiflex CR*24V-L 24VDC Converter for KSXT Cash drawer port $74.25 View Product
Posiflex 21862033420 Parallel Port Cable for KS XT Series $30.53 View Product
Posiflex Adapter Cable RJ45 to DB9M RS232 adapter cable for Posiflex KS / XT series $26.24 View Product
Zebra AllTouch Terminal Emulation Support Software Service Contracts for Zebra products. $65.78 View Product
Zebra Pocket Browser V3 Support Software 1 Year software support for PocketBrowser version 3 for Windows CE/WM, 1499 devices (per user). $34.16 View Product
Ergonomic Solutions SpacePole VESA Floor Mount The classic SpacePole Screen Mount is probably the most used foundation in mounting POS systems. $687.50 View Product
Honeywell Printer Receipt PR3A Printer Receipt PR3A $1,220.73 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document KS7410 User Manual.pdf 501KB Download
