Posiflex RT-5015Q
$2,423.09 (incl. GST)
POSMarket SKU: Z13990
RT503A40A67300FJ: 15" Super slim fanfree bezelfree PCAP touch terminal Pole/ Wall Mounting, Intel Kaby Lake Core i3, 3M cache, 8GB DDR4, 240GB SSD/ higher, 3 x RS232, USB3.0, 2 x USB2.0, 24V PoweredUSB, LAN, VGA, mini-DP, CR, SPK, M.2, IoT 64 Bit
15" Super slim fanfree bezelfree PCAP touch terminal, Intel Kaby Lake Core i3
Product Overview
The RT-5015Q POS terminal is the pole-mounting variant of the standard RT Series from Posiflex. Unlike the standard desktop terminal RT Series that can equip the optional PoweredUSB ports in the base, the RT-5015Q comes with a 24V PoweredUSB port built-in by default, which allows you to use the 150W Power supply to power the RT-5015 and a Printer. The user can enjoy the convenience that the PoweredUSB port offers while the terminal is being pole mounted or wall mounted. The RT-5015Q features an internal cable organizer that makes clean cable routing even easier.

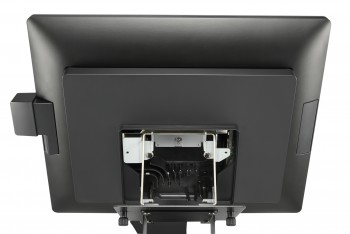

The RT-5015Q is built for Retail Solutions. It features an ultra-slim 15" touch screen and sleek body which makes the unit stylish and space-saving. The RT-5015Q also has a special back cover for easy maintenance access.
Clear up Your Counter Space
Featuring a 15" touchscreen, the RT-5015Q supports wall or pole mounting capability to clear up more counter space - achieving more selling space for the store owner.
Clean Cable Management
Thanks to an internal cable organizer, the cables can be easily and cleanly routed without cluttering up. Additionally, the RT-5015Q features a built-in PoweredUSB port to directly connect a printer without a cumbersome power adaptor.
Patented Fanless Technology
The patented fan-less technology allows the terminal to run quietly in all kinds of harsh conditions and – at the same time - provides a long service life.
Faster Installation and Serviceability
Rear cover can be removed easily and without tools, thus allowing faster installation and serviceability.
Other features
The RT-5015Q is built for Retail Solutions. It features an ultra-slim 15" touch screen and sleek body which makes the unit stylish and space-saving. The RT-5015Q also has a special back cover for easy maintenance access.
Clear up Your Counter Space
Featuring a 15" touchscreen, the RT-5015Q supports wall or pole mounting capability to clear up more counter space - achieving more selling space for the store owner.
Clean Cable Management
Thanks to an internal cable organizer, the cables can be easily and cleanly routed without cluttering up. Additionally, the RT-5015Q features a built-in PoweredUSB port to directly connect a printer without a cumbersome power adaptor.
Patented Fanless Technology
The patented fan-less technology allows the terminal to run quietly in all kinds of harsh conditions and – at the same time - provides a long service life.
Faster Installation and Serviceability
Rear cover can be removed easily and without tools, thus allowing faster installation and serviceability.
Other features
- Slimline 15" Fanless Touch POS Terminal
- Projective Capacitive Touch screen (PCAP)
- 15" LCD 1024 x 768 resolution
- Intel Kaby Lake Core i3-7100U Dual Core CPU, 2.40 GHz, 3M Cache and DDR4 memory
- Fan-free design boasting quiet and anti-dust features
- No Base, designed for Pole or Wall mounting with easy maintenance back cover
- Aluminium die-cast main housing design for efficient cooling
- 24V Powered USB port
Product Specifications
| SYSTEM CONFIGURATION | |
| Processor | Intel Kaby Lake Core i3-7100U, 2.40 GHz, 3M Cache
Intel Kaby Lake Core i5-7200U, 2.50 GHz, 3M Cache; Intel Kaby Lake Core i5-7300U, 2.60 GHz, 3M Cache |
| System Memory | DDR4 SO-DIMM slot x 2, max. 16GB |
| Storage Device | SATA x 2 |
| Power Supply | 12V / 150W |
| OS Support | Windows 10 IoT 64 bit |
| DISPLAY and TOUCH | |
| LCD | 15" TFT LCD |
| Resolution | 1024 x 768 |
| Touch | True-flat PCAP touch with multi-touch support (IP65 on front panel) |
| I/O EXPANSION | |
| Serial Port | 3, DB9 x 1+ RJ50 x 2, 5V/12V support on all COM ports |
| Standard USB Port | 3, USB 3.0 x 2 + USB 2.0 x 1 |
| 3, USB 3.0 x 2 + USB 2.0 x 1 | 24V x 1 |
| LAN Port | 10 / 100 / 1000 Mb x 1 |
| Display Port | mini DP x 1 |
| CR Port | 1, control 2 CR via optional Y-cable, supporting 24V cash drawer |
| Audio | Internal 2W speaker x 1 |
| Expansion Slot | M.2 slot x 1 |
| PHYSICAL | |
| Dimension | 368 x 46.6 x 292 |
| Weight | 3.5kg |
| ENVIRONMENTAL | |
| Operating Condition | 0°C - 40°C, 20%RH - 90%RH (Equipped with HDD);
0°C - 50°C, 20%RH - 90%RH (Equipped with SSD) |
| Storage Condition | -20°C - 70°C, 10%RH - 90%RH |
| BUILT-IN OPTIONS | |
| WiFi | M.2 WiFi/BT module |
| Camera | 1MP wide angle camera |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| RT503A40A67300FJ | 15" Super slim fanfree bezelfree PCAP touch terminal Pole/ Wall Mounting, Intel Kaby Lake Core i3, 3M cache, 8GB DDR4, 240GB SSD/ higher, 3 x RS232, USB3.0, 2 x USB2.0, 24V PoweredUSB, LAN, VGA, mini-DP, CR, SPK, M.2, IoT 64 Bit | $2,423.09 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Posiflex LM-4010-B | 9.7" 2nd display LCD. | $536.25 | View Product |
| Posiflex TM-4010-B | 9.7" LCD PCAP Touch Customer Display for RT-Series | $641.85 | View Product |
| Posiflex PD-2610UE-B | Rear-mount VFD customer display for Posiflex RT Series POS terminals. | $272.25 | View Product |
| Posiflex 39004023000 | 12V 60W power adaptor | $85.80 | View Product |
| Posiflex 39004024000 | 12V 80W power adaptor | $156.75 | View Product |
| Posiflex RA-101-15B | Slim 3 Track MSR Attachment for 15 RT Series Black | $122.10 | View Product |
| Posiflex 10.1" Customer Display - RT-2015 | 10.1" Bezelfree Customer LCD Display. | $658.35 | View Product |
| Posiflex TM4011D0000 | 2nd PCAP Customer Touch 10.1" LCD display, 1280x800 BezelFree. | $717.75 | View Product |
| Goodson CAB-mDPVGA | Mini DisplayPort Male to VGA Female Adapter | $43.73 | View Product |
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
| Filename | Size | ||
|---|---|---|---|
 |
Posiflex RT-5xxxEQ User Manual | 694KB | Download |
|
Posiflex RT-50155016 brochure | 3MB | Download |
