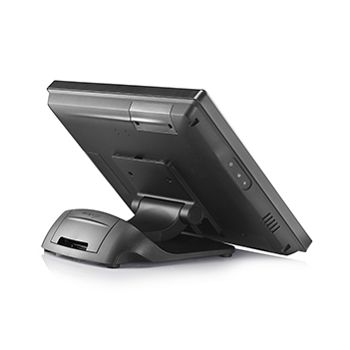

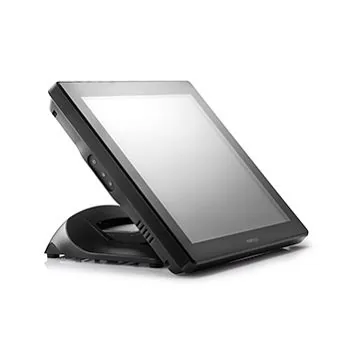

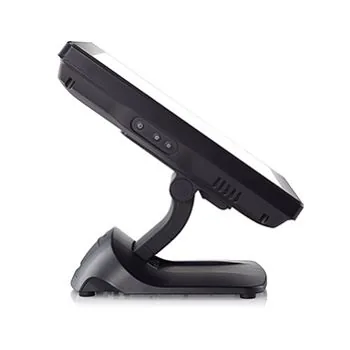

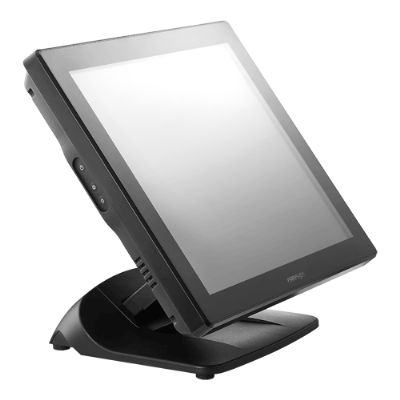

Posiflex XT-3817

from $1,685.06 (incl. GST)

POSMarket SKU: Z1930

This model is available in 8 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

17" PCAP POS touch screen. Slim and Powerful.

Product Rating
Product Overview
In todays retail and hospitality market, the POS terminal is no longer just a cold and hard business tool. It is a part of the store decoration, a part of the store image. Each curve and detail of the POS terminal should add something to the overall mood of the store, to lift the shopping experience of the customers. With a bezel free touch screen, large 17" display, beautifully sculptured slim body, sexily curved base stand, the XT-3817 looks right at home in any elegantly decorated store. And more than just good looks, the XT-3817 also offers performance and flexibility to satisfy the most demanding of daily POS operations.

The XT3817 is one of the best choices for retail and hospitality industry in need of a POS touch screen unit. The hardware is packed with all the processing power you need to help you manage your business effortlessly.

Features
  • PC POS Touch System
  • Projective Capacitive Touch screen (PCAP)
  • 17" LCD 1280x 1024 resolution
  • Spill-resistant design (IP44 capable) to prevent careless spill and provide easy cleaning for a wide range of applications
  • Intel J1900 Quad CoreCPU up to 2.42 GHz 2M Cache and DDR3L memory
  • Fan-free design boasting quiet and anti-dust features
  • Aluminium die-cast housing design for efficient cooling
  • RAID 1 (Disk Mirroring) support to backup important data (Optional)
  • Push-open cover to protect power switch from accidental shutdown
  • New Gen 7 Slim line Base (Patent pending)
  • Optional Gen 8 slim base, which can have build in Power supply and Powered USB Modules
Product Specifications
SYSTEM
CPUIntel Bay Trail Quad Core Celeron J1900 / 2.0 GHz ~ 2.42 GHz
MemoryDDR3L 800 MHz, SO-DIMM socket x 1, max 8 GB, default 2 GB
Storage device(s)In Australia Standard with 64 GB SSD, can also be purchased with a 500 GB SATA HDD (Special Order) or larger SSD Drives
TOUCH & DISPLAY
Display17" TFT LED Backlit LCD Display
Resolution1280 x 1024
Tilt Angle15 Deg to 90 Deg;
Touch PanelBezel Free: Projected Capacitive Touch supporting 10pts multi-touch
I/O EXPANSION
I/O Ports4 x RS-232 Ports (3 x DB9, 1 x 10 pin RJ50) with 5V/12V Support
6 x USB Ports (1 x USB3.0/2.0 6 x USB2.0)
Optional Powered USB Ports 1 x 24V & 3 x 12V on GEN 8 Base
1 x Proprietary USB port for side mount optional devices
1 x Parallel Port through service window (Optional Proprietary Cable)
1 x 10/100/1000Mb Ethernet Port
1 x VGA Port for 2nd Display (D-Sub with 12V Power for Posiflex LCD Monitors)
1 x Mini-PCIe slot
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
1 x UPS Port (Battery is optional)
1 x
Audio2W Speaker
OS SupportWindows 7 / POSReady 7 / WIN8.1 Embedded Retail Industry / Linux per request
ENVIRONMENTAL
Environmental SealingN/A
Operating Environment0 ~ +50 C, 20 ~ 90% RH with SSD
0 ~ +40 °C, 20 ~ 90% RH with HDD
Storage Environment-20 ~ +70 C, 10 ~ 90% RH
PHYSICAL
Power Supply12V DC Power Adapter (80W)
(Optional 120W when equiped with 2nd Display)
(Optional 150W when equiped with Gen 8 Base with Powered USB I/F)
External Dimensions (WxDxH)404.5mm x 355mm x 251mm
Weight6.2 Kg
ModelDescriptionPriceStock
XT382701303200FJ-8GB XT-3817 POS Terminal. 17" Bezel free PCAP Touchscreen, J6412 CPU, 8GB RAM, 120GB SSD, GEN 7 Base, Windows 10 IoT 64 Bit $2,062.50
Call
 Add to Cart
XT382701303200FJ XT-3817 POS Terminal. 17" Bezel free PCAP Touchscreen, J6412 CPU, 4GB RAM, 120GB SSD, GEN 7 Base, Windows 10 IoT 64 Bit $1,900.59
Call
 Add to Cart
XT3817A0R69200FJ XT-3817 POS Terminal. 17" Bezel free PCAP Touchscreen, J1900 CPU, 4GB RAM, 120GB SSD, GEN 7 Base, Windows 10 IoT 64 Bit $1,861.41
Call
 Add to Cart
XT3817A0768200FJ XT-3817 POS Terminal. 17" Bezel free PCAP Touchscreen, J1900 CPU, 4GB RAM, 64GB SSD, GEN 7 Base, Windows POSReady 7 64 Bit $1,854.88
Call
 Add to Cart
XT3817A0M68200FJ XT-3817 POS Terminal. 17" Bezel free PCAP Touchscreen, J1900 CPU, 4GB RAM, 64GB SSD, GEN 7 Base, Windows 10 IoT 64 Bit $1,815.69
Call
 Add to Cart
XT3817A0269200 XT-3817 POS Terminal. 17" Bezel free PCAP Touchscreen, J1900 CPU, 4GB RAM, 120GB SSD, GEN 7 Base, No operating system $1,750.38
Call
 Add to Cart
XT3817A0M69200 XT-3817 POS Terminal. 17" Bezel free PCAP Touchscreen, J1900 CPU, 4GB RAM, 128GB SSD, Gen. 7e Base, Windows 10 IoT Entry. $1,737.31
Call
 Add to Cart
XT3817A0100200FJ XT-3817 POS Terminal. 17" Bezel free PCAP Touchscreen, J1900 CPU, 4GB RAM, 500GB HDD, GEN 7 Base, No operating system $1,685.06
Call
 Add to Cart
ModelDescriptionPrices From
Cherry G86-62401 Full QWERTY Key Layout in compact 360mm Form Factor Combines maximum space efficiency with uncompromised Alpha Numeric Data entry. $220.76 View Product
Cherry G80-11900 Compact keyboard with built-in touchpad, The multifunctional TouchBoard is the perfect solution for limited spaces in situations requiring the functions of a mouse. $248.19 View Product
Cherry MW-2900 Washable 3 Button Optical Mouse with scrolling buttons for Industrial & E-Health applications. $83.60 View Product
Seal Shield Silver Storm STM042 Bluetooth Waterproof Antimicrobial Product Protection Bluetooth 1000 DPI optical mouse with scroll wheel 2 button charging base with integrated 3-port USB hub. $CALL
Posiflex 39004023000 12V 60W power adaptor $85.80 View Product
Posiflex 39004024000 12V 80W power adaptor $156.75 View Product
Posiflex 39004022000 Power Adaptor 12V-150W for Posiflex Systems $262.35 View Product
Posiflex LM-3014F-B 14" LCD 2nd monitor bezel-free display $607.20 View Product
Posiflex CR*24V-L 24VDC Converter for KSXT Cash drawer port $74.25 View Product
Posiflex KP560 Side Keypad Attachment for Posiflex 15/17 XT Series Terminal $222.75 View Product
Posiflex TM-3010E-B 9.7 LCD PCAP Touch Customer Display for XT Series $608.85 View Product
Posiflex 36646003003 Gen 7E Base for XT series VESA $214.50 View Product
Posiflex SA-305 MSR attachment 3 Track with Fingerprint Reader for XT series $476.85 View Product
Posiflex SA-305Z MSR attachment 3 Track with RF310 RFID Reader Fingerprint Reader for XT series $270.60 View Product
Posiflex 21862033420 Parallel Port Cable for KS XT Series $30.53 View Product
Posiflex PD-2608UE-B PD-2608 2 x 20 VFD Rear mounted customer line display USB interface for XT series $222.75 View Product
Zebra Pocket Browser V3 Support Software 1 Year software support for PocketBrowser version 3 for Windows CE/WM, 1499 devices (per user). $34.16 View Product
Ergonomic Solutions SpacePole VESA Floor Mount The classic SpacePole Screen Mount is probably the most used foundation in mounting POS systems. $687.50 View Product
Honeywell Printer Receipt PR3A Printer Receipt PR3A $1,220.73 View Product
Posiflex SA-105 SA series MSR attachment 3 Track for XT, PS & HC Series. $130.35 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document Posiflex XT-3817 Brochure 740KB Download
