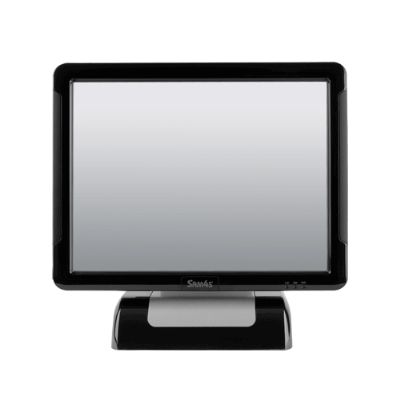

SAM4S SPT-5570

$2,416.56 (incl. GST)

POSMarket SKU: Z1824

TITAN-550/3GOD44YNB: Titan SPT-5570 POS Terminal. 15" Bezel Free touch screen, Intel i3, 4GB RAM, 64GB SSD, Windows POSReady 7

The Titan is the most powerful POS PC terminal in the SAM4S line-up. With high performance Intel Pentium i3 as standard, robust Aluminium Die-cast casing and stable SSD storage device, the Titan is suitable for the widest range of demanding POS applications. Stylish modern design with True Flat touch monitor allows the Titan to be a visual asset in any POS environment.

Product Rating
Product Overview
  • PC POS Touch System
  • Stylish slim design
  • Cast Aluminium Base and Housing
  • Standard with High performance Intel 3rd Gen Core i3, Pentium CPU
  • High resolution 15'' Bezel Free (True Flat) LED LCD
  • LCD Resolution 1024 x 768 (XGA)
  • Standard with 64 SSD storage device, Larger SSD or HDD can be ordered
  • 4GB RAM expandable to 16Gb
  • Easy access to main Components for maintenance
  • Multiple Interfaces for a full range of optional peripherals
  • Optional Slimline MSR, 2 Line Pole Display or 2nd LCD Display (7" or 15")
Product Specifications
CPUIntel 3rd Gen Core i3 standard, option i5,i7. Pentium
MemoryDDRIII PC3-10667 (1333MHz)/PC3-12800(1600MHz). Two slots. 4GB standard expandable to 16GB DDRIII
Storage device(s)In Australia Standard with 64 GB SSD, can also be purchased with a 320 GB SATA HDD (Special Order) or larger SSD Drives
Display15'' LCD, 1024 x 768, LED BLU
Resolution1024 x 768
Tilt Angle
Touch PanelBezel Free: Resistive Touch (5 Wire)
I/O Ports4 x RS-232 Ports (3 x DB9, 1 x RJ45) with 5V/12V BIOS selectable
6 x Standard USB Ports
1 x 10/100/1000Mb Ethernet Port. Half/Full duplex capability
1 x VGA Port for 2nd Display + 12V power outlet
1 x Parallel port
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable) 12/24V selectable
Audio1 x audio port (line out)
OS SupportPOSReady 7 / WIN 8 Industry Retail
Environmental SealingN/A
Operating Environment
Storage Environment
Power SupplyInternal in Base: Input AC 100 - 240V/50-60Hz, Output DC19V/7.89A
External Dimensions (WxDxH)358mm x 240mm x 356mm
Weight8.5 Kg
ModelDescriptionPriceStock
TITAN-550/3GOD44YNB Titan SPT-5570 POS Terminal. 15" Bezel Free touch screen, Intel i3, 4GB RAM, 64GB SSD, Windows POSReady 7 $2,416.56
Call
 Add to Cart
ModelDescriptionPrices From
Cherry G86-62401 Full QWERTY Key Layout in compact 360mm Form Factor Combines maximum space efficiency with uncompromised Alpha Numeric Data entry. $220.76 View Product
Cherry G80-11900 Compact keyboard with built-in touchpad, The multifunctional TouchBoard is the perfect solution for limited spaces in situations requiring the functions of a mouse. $248.19 View Product
Cherry G81-8040 Programmable compact keyboard with built-in magnetic card reader and optional barcode decoder. $437.59 View Product
Cherry MW-3000 The CHERRY MW 3000 is your advanced wireless mouse with 2. $37.24 View Product
Zebra Pocket Browser V3 Support Software 1 Year software support for PocketBrowser version 3 for Windows CE/WM, 1499 devices (per user). $34.16 View Product
Ergonomic Solutions SpacePole 300mm Elbow-Arm Pole Mount When extra reach is required, the elbow arm allows even greater accessibility for the customer or second operator. $419.38 View Product
Honeywell Printer Receipt PR3A Printer Receipt PR3A $1,220.73 View Product
Cherry JK-A0400 Secure Board 1.0 w/ Smart Card Reader Intelligent security keyboard with integrated reader for smart cards and cards/tags with RF/NFC interface. $194.63 View Product
SAM4S SPT557x 3 Track MSR Titan SPT557x series 3 Track MSR $123.75 View Product
SAM4S SPT557x Customer Display TITAN SPT557x 7" Customer LCD $308.00 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document spt55xx brochure 676KB Download
PDF Document spt5570 User Manual 10MB Download
PDF Document SAM4s Cash Drawer Commands 13KB Download
