Axis A8105-E
$1,617.00 (incl. GST)
POSMarket SKU: Z15197
0871-001: A8105-E Network Video Door Station, PoE, Remote Entry Control, IP65

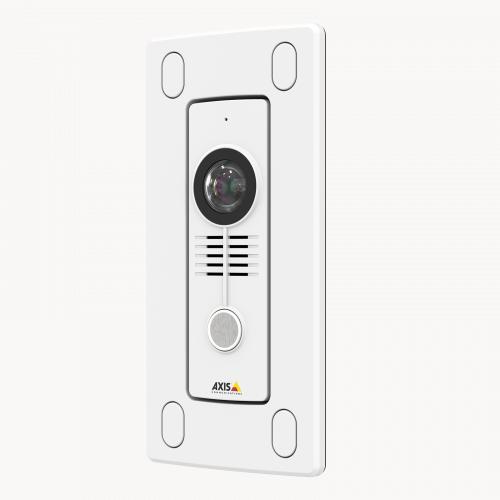

Axis Network Video Door Station, small and powerful door security
Our expert team has specialised
training & experience to help
find the right solution for your
business.
POSMarket SKU: Z15197
Axis Network Video Door Station, small and powerful door security
| Camera | |
| Image Sensor | 1/2.8" progressive scan RGB CMOS sensor |
| Lens | 2.8mm fixed, IR corrected |
| Aperture | f/2.8 |
| Field of View | Horizontal: 180° Vertical: 120° |
| Minimum Illumination | LED On: 0 lux LED Off (with WDR): 2.23 lux LED Off (without WDR): 1.96 lux |
| Shutter Time | 1/143000 to 2 s with 50/60 Hz |
| Video | |
| Compression | H.264 (MPEG-4 Part 10/AVC), baseline, main, and high profiles MJPEG |
| Resolutions | 1920 x 1200 to 160 x 90 |
| Frame Rate | 1920 x 1200 at 25/20 fps (WDR) 1920 x 1200 at 50/30 fps (no WDR) |
| Streaming | Multiple, individually configurable streams in H.264 and MJPEG Axis Zipstream technology in H.264 Controllable frame rate and bandwidth |
| Image Settings | Compression, color, brightness, sharpness, contrast, white balance, exposure control, fine-tuning of behavior at low light, WDR forensic capture, rotation (auto, 0, 90, 180, 270° including Axis digital corridor format), portrait/landscape, text and image overlay, mirroring of images, privacy mask |
| Pan/Tilt/Zoom | Digital PTZ |
| Audio | |
| Streaming | Two-way, full duplex Echo cancellation and noise reduction |
| Compression | AAC-LC 8/16 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, OPUS (in SIP calls only) Configurable bit rate |
| Input/Output | Built-in microphone (can be disabled) Built-in speaker, 85 dB at 20" (0.5 m) |
| Control | |
| Lock Management | Compatible with: Axis A9801 safety relay box, 300 mA at 12 VDC (maximum) Axis A1001 network door controller, 0.7 A at 30 V (maximum) |
| Network | |
| Security | Password protection, IP address filtering, HTTPS encryption, IEEE 802.1x network access control, digest authentication, user access log, centralized certificate management |
| Supported Protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SIP, SIPS |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX and Axis camera application platform, Axis Video Hosting System (AVHS) with one-click connection, ONVIF Profile S |
| Software | Third-party video management software and mobile applications |
| VoIP | Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer-to-peer or integrated with SIP/PBX Tested with various SIP software such as Cisco, Bria and Grandstream Tested with various PBX software such as Cisco, Avaya and Asterisk Axis Parallel Call Forking, Axis Sequential Call Forking |
| Analytics | Axis Video Motion Detection 3, active tampering alarm, audio detection Support for Axis Camera Application Platform enabling installation of additional applications |
| Event Trigger | Analytics, external input, edge storage events Call: DTMF, state, state changes Detectors: Audio detection, live stream accessed, shock detection Hardware: Temperature, tilt detection, network Input Signal: Digital input port, manual trigger, virtual inputs Storage: Disruption, recording System: System ready Time: Recurrence, use schedule |
| Event Action | Axis door control, video and audio recording to edge storage, pre- and post-alarm video buffering, external output activation, play audio clip, overlay text, PTZ control, status LED, WDR mode Make call: SIP, API File upload via FTP, SFTP, HTTP, HTTPS network share and email, notification via email, HTTP, HTTPS, and TCP |
| Data Streaming | Event data |
| Built-In Installation Aids | Pixel counter |
| General | |
| Casing | IP65- and NEMA-4-rated |
| Aluminum | casing Stainless steel button Polycarbonate (PC) dome |
| Sustainability | PVC free |
| Memory | 256 MB RAM, 128 MB flash |
| Power | Power Output: 12 VDC, maximum: 350 mA at 12 VDC PoE: IEEE 802.3af/802.3at Type 1 Class 3 |
| Connectors | RJ45 10Base-T/100Base-TX I/O: 6-pin 3.81 mm terminal block, 2 x I/O, 12 V output (maximum 350 mA) and 1 x relay |
| Storage | microSD slot supports microSD/SDHC/SDXC up to 64 GB (available separately) NAS drive (available separately) |
| Operating Temperature - | 13 to 131°F (-25 to 55°C) |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
| Dimensions | 5.8 x 1.4 x 1.9" (147.5 x 35 x 48 mm) |
| Weight | 9.88 oz (280 g) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| 0871-001 | A8105-E Network Video Door Station, PoE, Remote Entry Control, IP65 | $1,617.00 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
A8105E Datasheet.pdf | 283KB | Download |
|
A8105E User Manual.pdf | 2MB | Download |
|
A8105E Installation Guide.pdf | 3MB | Download |
