Dahua VTO2111D-P-S2
$CALL
POSMarket SKU: Z18205

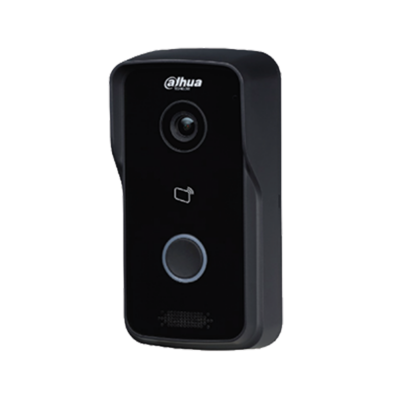

VTO2111D-P-S2: IP Villa Door Station
IP Villa Door Station intercom device
Our expert team has specialised
training & experience to help
find the right solution for your
business.
POSMarket SKU: Z18205
IP Villa Door Station intercom device
| VTO2111D-P-S2 | |
| System | |
| Main Processor | Embedded processor |
| Operating System | Embedded LINUX operating system |
| Button Type | Mechanical |
| Interoperability | ONVIF |
| Internet Protocol | SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP |
| Baisc | |
| Camera | 1/4″ 1MP CMOS high definition, low illumination/WDR, color/IR |
| Angle of View | Horizontal: 107°; vertical: 61°; diagonal: 122° |
| WDR | Yes |
| Noise Reduction | 3D noise reduction |
| Video Compression | H.264 |
| Video Resolution | Main stream: WVGA, 720P, D1 Sub stream: CIF, WVGA, QVGA, 1080P, D1 |
| Frame Rate | PAL: 25 fps NTSC: 30 fps |
| Video Bit Rate | 256K to 4M |
| Light Compensation | Auto IR |
| D/N | ICR auto switch |
| Audio Compression | G.711a; PCM; AAC |
| Audio Input | 1 |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way voice call |
| Audio Enhancement | Echo suppression and cancellation/digital noise reduction |
| Audio Bit Rate | 16KHz, 16Bit |
| Function | |
| Communication | Full digital |
| Unlock Mode | Card/App remote/indoor monitor unlock |
| Card Type | IC card |
| Motion Detection | Video motion detection |
| Auto Snapshot | Auto snapshot can only be enabled on indoor monitors |
| Leave Photos and Messages | Yes (SD card is needed) |
| Web Configuration | Yes |
| Performance | |
| Card Reading Distance | 3cm–5cm |
| Casing | PC+Acrylic |
| Capacity | |
| Card | 10,000 |
| Port | |
| RS-485 | 1 |
| Electric Lock | 1 |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1, normally closed by default |
| Network | 1 10Mbps/100Mbps network port (8-core white ribbon cable) |
| Alarm | |
| Tamper | Yes |
| General | |
| Color | Black |
| Power Supply Mode | 12V DC 1A |
| Standard | PoE |
| Installation | Surface mount |
| Certifications | CEM FCC UL |
| Accessory | Brackets and alarm ribbon cable |
| Dimensions | 135mm×70.4mm×34.4mm (5.31″×2.77″×1.35″) |
| Protection Grade | IP65 (silicone sealant is needed, see the quick start guide) |
| Operating Temperature | -30°C to +60°C (-20°F to +60°F) |
| Operating Humidity | 10%RH–90%RH (non-condensing) |
| Operating Altitude | beneath 3000 m (9842.52 ft) |
| Power Consumption | Standby≤1W, working≤5W |
| Gross Weight | g (0.72 lb) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| VTO2111D-P-S2 | IP Villa Door Station | $CALL |
| Filename | Size | ||
|---|---|---|---|
 |
IP Villa Door Station Quick Installation Guide.pdf | 6MB | Download |
|
VTO2111DPS2 Datasheet.pdf | 436KB | Download |
|
Villa VTO Users Manual | 1MB | Download |
